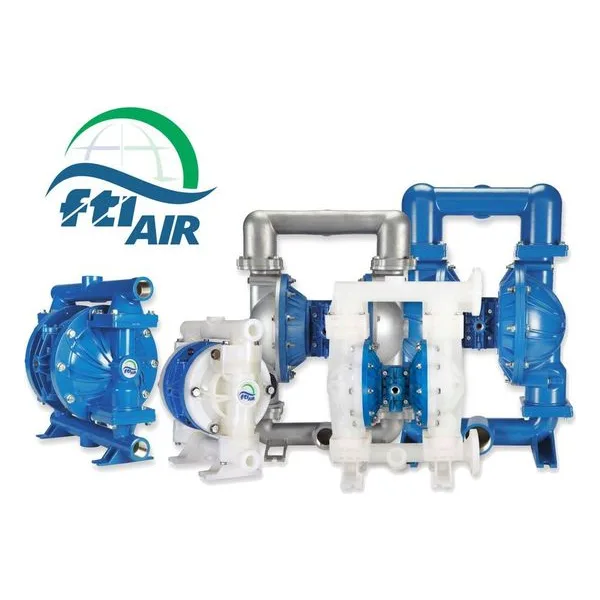

FTI Air Operated Double Diaphragm Pumps by Finish Thompson

½” (13 mm) Metallic / Non-Metallic Air Operated Double Diaphragm Pumps

FT05 Metallic & Non-Metallic (Plastic) Models: Suction & Discharge Size: 1/2” x 1/2”

Specifications

Porting Location: End
Connection Types: FNPT, FBSPT
Air Inlet &Air Exhaust Size: 1/4” FNPT x 1/2” FNPT

Optional NPT or BSP threaded center port location in either horizontal or vertical position.

Construction

Wetted Materials: Polypropylene (FT05P), PVDF (FT05V), Aluminum (FT05A), Stainless Steel (FT05S)
Diaphragm Materials: Neoprene, Santoprene, FKM, EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene

FDA-compliant material options available.

Capabilities

Maximum Flow Rate: 20 gpm (77 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.02 gal (0.08 liters)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Maximum Particle Size: 0.19 in (4.7 mm)
Sound Pressure: 72.1 dB(A)

Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.

Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.

Repair Parts & Kits Readily available inlcuding Wet End Kits, Air End Kits and Valve Kits.

1 1/2” (38 mm) Metallic / Non-Metallic Air Operated Double Diaphragm Pumps

FT15Z Metallic & Non-Metallic (Plastic) Models: Suction & Discharge Size: 1 1/2” x 1 1/2”

Specifications

Porting Location: End, Center Horizontal
Connection Types: FNPT, FBSPT (metal pumps) ANSI/DIN/ISO flange w/ FNPT or FBSPT Threads (plastic pumps)
Air Inlet & Air Exhaust Size: 1/2” FNPT x 3/4” FNPT

Plastic pumps feature end ports, metal pumps feature center ports. Optional NPT or BSP threaded center port location in either horizontal (plastic pumps) or vertical position (plastic and metal pumps). Optional ANSI/DIN/ISO flange (SS pumps only) or 2” tri-clamp connection upgrade available upon request (SS pumps only).

Construction

Wetted Materials: Polypropylene (FT15ZP), PVDF (FT15ZV), Aluminum (FT15ZA), Stainless Steel (FT15ZS)
Diaphragm Materials: Neoprene, Santoprene, FKM, EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE, Neoprene, Buna, EPDM, FKM, Santoprene, Hytrel®, Polyurethane
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene

FDA-compliant material options available.

Maximum Flow Rate: 133 gpm (503 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.24 gal (0.91 lit)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Maximum Particle Size: 0.38 in (9.7 mm)
Sound Pressure : 77 dB(A)

Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.

Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.

Repair Parts & Kits Readily available inlcuding Wet End Kits, Air End Kits and Valve Kits.

1” (25 mm) Metallic / Non-Metallic Air Operated Double Diaphragm Pumps

FT10 Metallic & Non-Metallic (Plastic) Models: Suction & Discharge Size: 1” x 1”

Specifications

Porting Location: End
Connection Types: FNPT, FBSPT, ANSI/DIN/ISO flange
Air Inlet x Air Exhaust Size: 1/2” FNPT x 1/2” FNPT

Optional FNPT or FBSPT threaded center port location in either horizontal or vertical position.

Construction

Wetted Materials: Polypropylene (FT10P), PVDF (FT10V), Aluminum (FT10A), Stainless Steel (FT10S)
Diaphragm Materials: Neoprene, Santoprene, FKM,EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene

FDA-compliant material options available.

Capabilities

Maximum Flow Rate: 56 gpm (212 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.05 gal (0.19 lit)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Max Particle Size: 0.25 in (6.4 mm)
Sound Pressure: 73.6 dB(A)

Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.

Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.

Repair Parts & Kits Readily available inlcuding Wet End Kits, Air End Kits and Valve Kits.

2” (51 mm) Metallic / Non-Metallic Air Operated Double Diaphragm Pumps

FT20 Metallic & Non-Metallic (Plastic) Models: Suction & Discharge Size: 2” x 2”

Specifications

Porting Location: End, Center
Connection Types: FNPT, FBSPT, ANSI/DIN/ISO flange
Air Inlet & Exhaust Size: 3/4” FNPT x 3/4” FNPT

Plastic pumps feature end ports, metal pumps feature center ports. Optional ANSI/DIN/ISO Vanstone flange option for center port location. (available on stainless steel pumps only)

Construction

Wetted Materials: Polypropylene (FT20P), PVDF (FT20V), Aluminum (FT20A), Stainless Steel (FT20S)
Diaphragm Materials: Neoprene, SantopreneTM, FKM, EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, PTFE Santoprene, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE, Neoprene, Buna, ,Hytrel®, EPDM, FKM, Santoprene, Polyurethane
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene

FDA-compliant material options available.

Maximum Flow Rate: 156 gpm (590 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.31 gal (1.2 lit)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Maximum Particle Size : 0.35 in (8.9 mm)
Sound Pressure: 77 dB(A)

Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.

Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.

Repair Parts & Kits Readily available inlcuding Wet End Kits, Air End Kits and Valve Kits.

3” (76 mm) Metallic Air Operated Double Diaphragm Pumps

FT30 Metallic Models: Suction & Discharge Size: 3” x 3”

Specifications

Porting Location: Center
Connection Types: FNPT, FBSPT, ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size: 3/4” FNPT x 3/4” FNPT

Optional ANSI/DIN/ISO Vanstone flange option for center port location (available on stainless steel pumps only).

Construction

Wetted Materials: Aluminum (FT30A), Stainless Steel (FT30S)
Diaphragm Materials: Neoprene, Santoprene, FKM, EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE, Neoprene, Buna, EPDM, FKM, Santoprene,  Hytrel®, Polyurethane
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene

FDA-compliant material options available.

Capabilities

Maximum Flow Rate: 240 gpm (908 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.98 gal (3.7 lit)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Maximum Particle Size: 0.50 in (12.7 mm)
Sound Pressure: Not Available

Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.

Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.

Repair Parts & Kits Readily available including Wet End Kits, Air End Kits and Valve Kits.

FTI Air Diaphragm Pump Accessories

Enhance your FTI Air Operated Double Diaphragm Pumps with the righ Accessory

Accessories include:

Liquid Level Controls (Available in PP or SS Float Material) - mechanical / pneumatic device that will turn the pump on and off automatically as the liquid level changes.

Batch Controllers - Includes 1‐Batch Controller, 1‐Hard Wired Power Cord, 2‐Hard Wired Proximity Sensor Cables & 2‐Solenoid Control Cables

Cycle Counter - Count your pump cycles based on the presence of a valve carrier. Use on any exisisting or new FTI Air AODD pump with the appropriate air valve parts.

AODDampner - This is an unique item created from 316L stainless steel for pulsation dampening. Backed with PTFE diaphragms, this pulsation dampener can handle a wide array of pumping applications.

Pulsation Dampeners - This is the accessory you need if you want to remove nearly all hydraulic shock when providing a nearly steady flow of liquids. A must have to protect pipes, valves and fittings from dangerous surges and pulsations. Offered in many materials of construction.

Filter Regulator - Integrated design is so compact it will save space and cut down on piping needs. Comes with dual scale PSI / Bar gage. Ability to filter air up to fice microns. The regulator can adjust air pressure from 7.3 psig to 123 psig.

Spillstop - This fully pneumatic system can safely capture leaked liquids if ther eis a diaphragm failure. This mechanism will automatically shut down any failing pumps. This elimnates waste of products and prevents dangerous spills.

FTI Air Diaphgram Pump Kits

Wet End, Blind & Split Flange, Pump Air End, Solenoid & Valve Replacement

Wet End Kits: Diaphragms, check valve balls, check valve seats, o‐rings (where required).

Air End Kit for pumps with plastic air valve (does not include air valve): Shaft bushing with preinstalled o‐rings, air chamber to center section o‐rings (where applicable), air valve cap o‐rings, muffler plate and air valve gaskets.

Air End Kit for pumps with metal air valve (does not include air valve): Shaft bushing with preinstalled o‐rings, air chamber to center section o‐rings (where applicable), air valve cap o‐rings, muffler plate and air valve gaskets.

Plastic Air Valve Replacement Kit (complete air valve): Complete plastic air valve including all internal air valve components and gaskets for air valve and muffler (does not include hardware).

Metal Air Valve Replacement Kit (complete air valve): Complete metal air valve including all internal air valve components and gaskets for air valve and muffler (does not include hardware).

Split Flange Kit: (4) Vanstone style ANSI / DIN / ISO flange halves with shim kit for stainless steel pumps only.

Blind Flange Kit: (2) CPVC blind flanges, Gylon gaskets & stainless steel hardware to block open flange end on 1" and 1‐1/2" Z polypropylene & PVDF pumps when alternate threaded connection is ordered.

FTI Air Diaphragm Pump Spare Repair Parts

Keep your FTI Air Operated Double Diaphragm Pumps Running Strong!

We offer every FTI Air Spare Part you need to repair, replace or rebuild your metallic or non-metallic diaphragm pump. Purchase 1/2", 1", 1 1/12" 2" and 3" parts from us and save time and money!

Spare Repair Parts Include the following and then some:

O-Rings, Screws, Nuts, Manifolds for suction and discharge. We also carry Center Sections, Air Chambers Outer Plates and Shafts / Bushing. Don't forget to keep a spare Dispharagm on the shelf as well as Valve Seats, Valve Balls & Gaskets. No matter if you are looking for Mufflers, Cap Screws and Washers, we have you covered.

The following Diaphram material are available for every model and size, Metallic or Non-Metallic.

Diaphragm Materials of Construction: Neoprene, SantopreneTM, FKM,  EPDM, PTFE, Buna, Hytrel®, Polyurethane

Ball Materials of Construction: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS

Seat Materials of Construction: Aluminum, 316SS, Polypropylene, PVDF, PTFE

O-Ring Materials of Construction: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene

Order Online Today!

1/2" Drum Pump Dispensing Packages

FTI Air Drum Pump Dispensing Packages ‐ Includes pump, drum pump kit option, filter / regulator, discharge hose and fittings.

Available 1/2" AODD Drum Pump Packages
