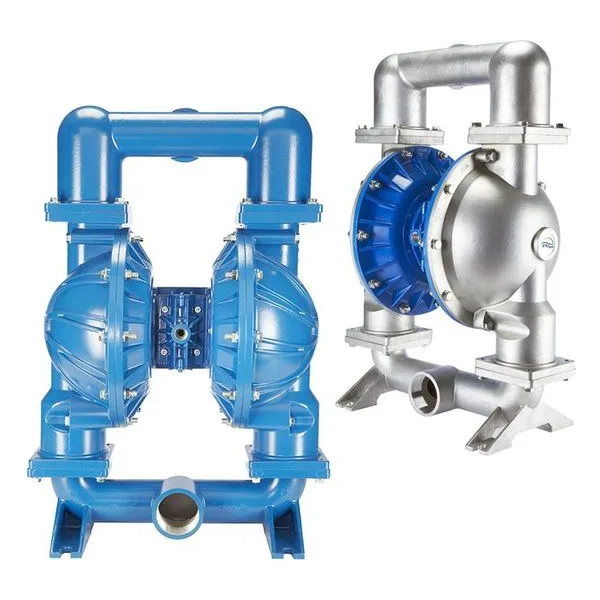

3” (76 mm) Metallic Air Operated Double Diaphragm Pumps
FT30 Metallic Models: Suction & Discharge Size: 3” x 3”
Specifications
Porting Location: Center
Connection Types: FNPT, FBSPT, ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size: 3/4” FNPT x 3/4” FNPT
Optional ANSI/DIN/ISO Vanstone flange option for center port location (available on stainless steel pumps only).
Construction

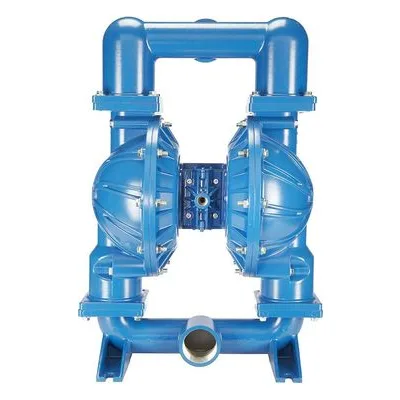

Wetted Materials: Aluminum (FT30A), Stainless Steel (FT30S)
Diaphragm Materials: Neoprene, Santoprene, FKM, EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE, Neoprene, Buna, EPDM, FKM, Santoprene, Hytrel®, Polyurethane
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene
FDA-compliant material options available.
Capabilities
Maximum Flow Rate: 240 gpm (908 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.98 gal (3.7 lit)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Maximum Particle Size: 0.50 in (12.7 mm)
Sound Pressure: Not Available
Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.
Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.
Repair Parts & Kits Readily available including Wet End Kits, Air End Kits and Valve Kits.
