Pulsatron Pumps

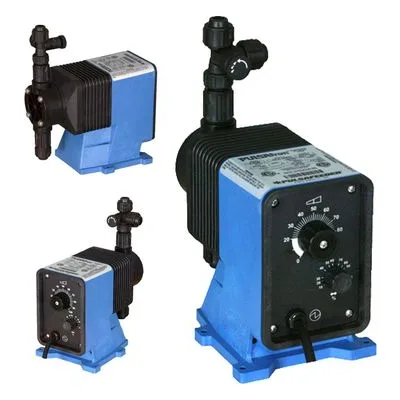

The PULSAtron Series A Plus offers manual function controls of stroke length and stroke rate as standard, with the option to select external pace for automatic control. Other optional features include external stop function and 1000:1 turndown control. Ten distinct models are available, having pressure capabilities to 250 psig (17 bar), and flow capacities to 58 gpd (9.1 lph), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

Pulsatron X Explosion Proof Chemical Metering Pumps

Reliability, safety and compliance are paramount, the Pulsatron X Explosion Proof metering pump ensures the secure delivery of chemicals into your process. Its hazardous location ratings highlight its exceptional durability, capable of managing internal explosions while providing dependable and precise chemical metering. With options for either a 4-20mA input or an external pulse input, the Pulsatron X is perfect for applications requiring remote control of the dosing rate. Its rugged, cast aluminum housing is designed for high corrosion resistance, and the integrated inputs in the control panel eliminate the need for additional devices and external enclosures.

• Ideal for chemical dosing applications that require remote control in hazardous locations .
• Meets Hazardous location rating, for facilities that deal with hazardous material in the environment such as flammable gases.
• Aluminum housing is rugged and is designed for high corrosion resistance.
• Integrated automatic controls: 4-20mA input or external pulse input integrated on Pulsatron X control panel eliminates the need for extra device and external enclosure.
• Manual control with on-line adjustable stroke rate and stroke length.
• Simple substitution of competitors in the field - No need to re-drill mounting holes.

The Pulsatron X Explosion Proof pump is equipped with all the features you expect from a top-tier chemical metering pump. It is designed to provide the highest level of safety, superior performance, and reliable operation. Meeting hazardous location ratings, the X Series ensures the safety of everyone around it. Its ratings highlight its exceptional durability to manage internal explosions, enabling secure and accurate chemical metering.

As the ultimate problem-solver, the Pulsatron X is robust enough for the most hazardous environments and precise enough for delicate operations, with metering performance reproducible to within +/- 2% of maximum capacity.

Features of Pulsatron's X Series Diaphragm Pumps

• Explosion Proof - Hazardous location rating, for facilities that deal with hazardous material in the environment such as flammable gases and dust particles.
• Aluminum Housing - Rugged, corrosion resistant housing for corrosive chemical applications
• Integrated Inputs - Eliminating an extra device and external enclosure
• Automatic Control - 4-20mA input, External pulse input with stop
• 4-20MA Input or External Pulse Input - Remote control of the dosing rate
• Manual Control- On-line adjustable stroke rate and stroke length
• Guided Ball Check Valve System - Reduce back flow and enhance outstanding priming characteristics
• Durable Lead Free Bleed Valve Assembly - Safe and easy priming
• Simnple Substitution of Competitors In the Field - No need to re-drill mounting holes. Swap out your current brand for Pulsatron's X Series.

Controls

• Manual Stroke Rate - Turn-Down Ratio 10:1
• Manual Stroke Length - Turn-Down Ratio 10:1
• 4-20MADC Direct or External Pacing with Stop - Automatic Control

Accessories:

• Surge Dampeners
• Gauges
• KOP Kits - Pump Repair Kits
• Pre-Engineered Systems
• Process Controllers
• Tanks

The PULSAtron Series C offers manual control over stroke length adjustment with fixed stroke rate. Optional control features include external pace, a choice between momentary on/off switch for priming the pump, or a toggle on/off switch for manual override of all control functions. Four distinct models are available, having pressure capabilities to 80 psgi (5.6 bar), and flow capacities to 30 gpd (4.7 lph), with a turndown ration of 10:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

The PULSAtron Series C Plus metering pump offers manual control over stroke length and stroke rate as standard with the option to select external pace for automatic control. It has been agency approved for demanding outdoor and indoor applications.

Pulsatron Series C Plus offers four distinct models with pressure capabilities to 80 psig, and flow capacities to 30 gpd (4.7 lph), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

The PULSAtron Series E pump features manual control by on-line adjustable stroke rate and stroke length. It has been agency approved for demanding outdoor and indoor applications. Pulsatron Series E Plus has models available having pressure capabilities to 300 psig (21 bar) @ 3 gpd (0.5 lph) and flow capacities to 600 gpd @ 30 psig (2 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

The PULSAtron Series E Plus offers manual control over stroke length and stroke rate as standard with the option to choose between 4-20mA and external pace inputs for automatic control. Pulsatron Series E Plus has models available having pressure capabilities to 300 PSIG (21 BAR) @ 3 GPD (0.5 lph), and flow capacities to 600 GPD (94.6 lph) @ 30 PSIG (2 BAR), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 2% of maximum capacity.

The PULSAtron Series E-DC metering pump offers manual function controls over stroke length and stroke rate providing a turn down ratio of 100:1. Our best value in a pump with this capacity and powered by 12 Volt DC. Pulsatron Series E-DC offers four distinct models, having pressure capabilities to 150 PSIG (10 BAR) @ 6 GPD (0.25 lph), and flow capacities to 44 GPD (7.0 lph) @ 100 PSIG (7 BAR), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 3% of maximum capacity.

The PULSAtron PLUS Series ET provides feed control with input from a water meter input. When the count exceeds a set value (either 1 or 10), the pump starts .The pump will continue to run for an adjustable time period. The Series ET includes both input and output water meter connections at the front panel. The out-put connection provides an isolated dry contact output of the water meter contact to operate additional pumps or timers off the same water meter. Fourteen distinct models are available, having pressure capabilities to 250 psgi (17 bar), and flow capacities to 504 gpd (79.5 lph), with a turndown ration of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

The PULSAtron Series HV offers accurate metering of fluids with viscosities up to 20,000 CPS. The HV offers manual control, external pace via dry contact and even 4-20mA control. Five distinct models are available, having pressure capabilities to 150 PSIG @ 24 GPD, and flow capacities to 240 GPD @ 80 PSIG, with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 2% maximum capacity.

The PULSAtron Series MP chemical metering pump offers automatic control; 4-20mA and 20-4mA current signals and external pacing input. Signal level or power level relay output for external device control. There are alarm signals for signal loss, full count, circuit failure, pulse overflow and pulse rate high. Liquid low level indicator capability is standard. Pulse signals can be multiplied or divided by 1 to 999. Pulsatron Series MP has models available having pressure capabilities to 300 psig (21 bar) @ 3 gpd (0.5 lph), and flow capacities to 504 gpd (79.5 bar) @ 20 psig (1.3 bar), with a turndown ratio of 1000:1. Metering performance is reproducible to within +/- 2% maximum capacity.

The PULSAtron Series T7 was designed to control the feeding of biocide or other product that must be fed on timed schedule. The Series T7 includes a 7-day programmable timer and clock with the ability to control up to 8 on/off cycles per day. Each timed event can be set to run any day of the week on a 7-day cycle. The feed cycle is initiated and controlled by the user programmable timer. Four distinct models are available, having pressure capabilities to 100 psgi (7 bar), and flow capacities to 48 gpd (7.6 lph), with a turndown ration of 10:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

Pulsatron Control Drive and Parts for Series MP Drive Assembly and Control Panel Parts Identification. Series E Plus, HV and Series E Drive Assembly and Control Panel Parts Identification. Series A Plus, C, C Plus, E and E-DC Drive Assembly and Control Panel Parts Identification. Series A Plus, C, and C Plus (External Pace) Drive Assembly and Control Panel Parts Identification.

When you need a PULSAtron Pump Part, you've got it! A KOP kit can help you cut downtime and put you back in business fast. Use KOP Kits for preventative maintenance also, to ensure continuous high performance from your Pulsafeeder metering pump. Save money too, by buying parts in KOP Kits instead of ordering individual parts. KOP Kits are available for the CHEM-TECH, Mec-O-Matic, OMNI, Series M and PUSLAtron metering pumps

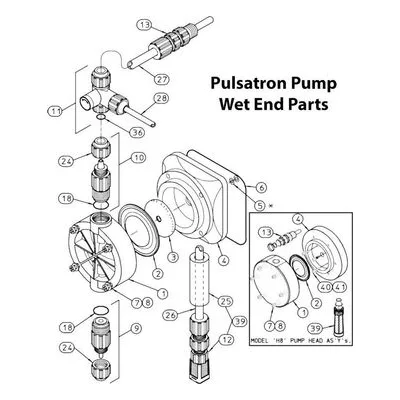

Pulsatron Wet End Component assemblies for chemical metering pumps.

E-Plus, MP, HV and Series E wetted parts, Series MP E-Plus, HV and Series E drive assembly, Series A-Plus, C-Plus, C, E, And E-DC wetted parts, drive assembly Series A-Plus, C-Plus, C, drive assembly Parts Lists, Five Function Valve Parts, Five Function De-Gas Valve Parts, Liquid End Parts
