1/2" Metallic & Non-Metallic AODD Pumps 13mm

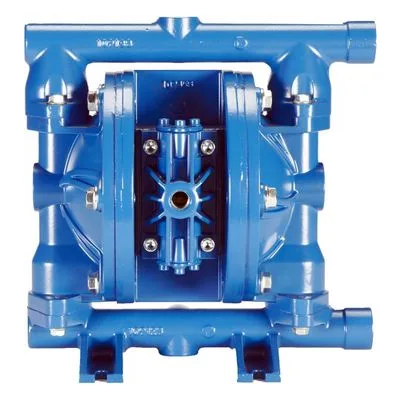

½” (13 mm) Metallic / Non-Metallic Air Operated Double Diaphragm Pumps

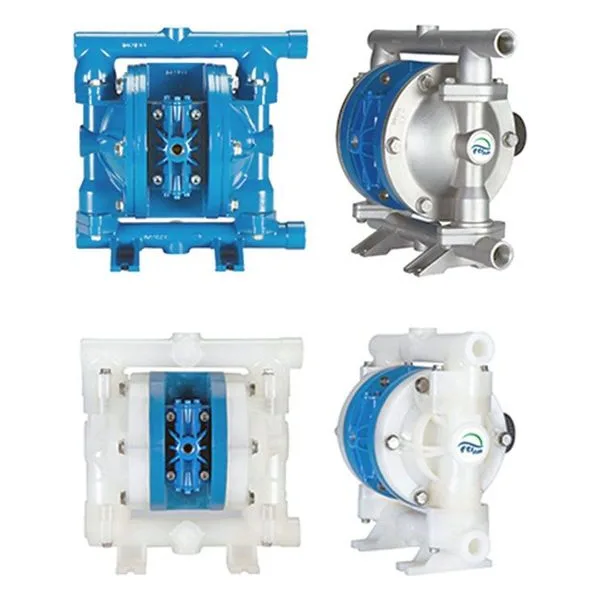

FT05 Metallic & Non-Metallic (Plastic) Models: Suction & Discharge Size: 1/2” x 1/2”

Specifications

Porting Location: End
Connection Types: FNPT, FBSPT
Air Inlet &Air Exhaust Size: 1/4” FNPT x 1/2” FNPT

Optional NPT or BSP threaded center port location in either horizontal or vertical position.

Construction

Wetted Materials: Polypropylene (FT05P), PVDF (FT05V), Aluminum (FT05A), Stainless Steel (FT05S)
Diaphragm Materials: Neoprene, Santoprene, FKM, EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene

FDA-compliant material options available.

Capabilities

Maximum Flow Rate: 20 gpm (77 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.02 gal (0.08 liters)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Maximum Particle Size: 0.19 in (4.7 mm)
Sound Pressure: 72.1 dB(A)

Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.

Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.

Repair Parts & Kits Readily available inlcuding Wet End Kits, Air End Kits and Valve Kits.
