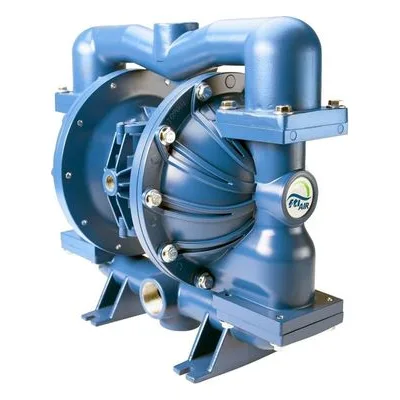

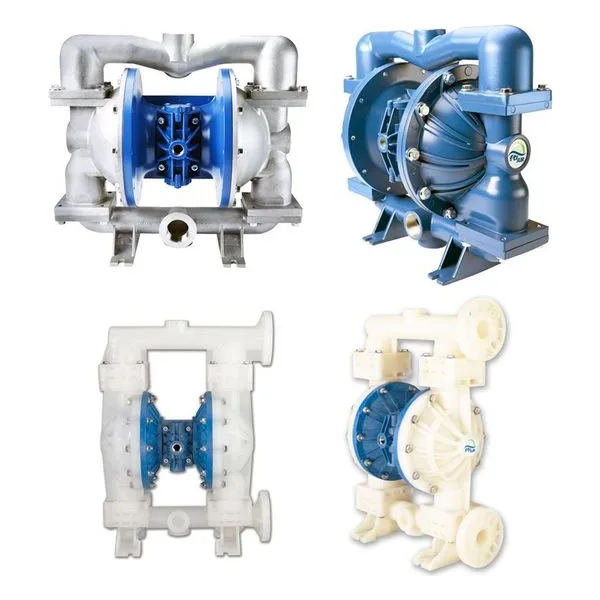

1 1/2” (38 mm) Metallic / Non-Metallic Air Operated Double Diaphragm Pumps
FT15Z Metallic & Non-Metallic (Plastic) Models: Suction & Discharge Size: 1 1/2” x 1 1/2”
Specifications
Porting Location: End, Center Horizontal
Connection Types: FNPT, FBSPT (metal pumps) ANSI/DIN/ISO flange w/ FNPT or FBSPT Threads (plastic pumps)
Air Inlet & Air Exhaust Size: 1/2” FNPT x 3/4” FNPT
Plastic pumps feature end ports, metal pumps feature center ports. Optional NPT or BSP threaded center port location in either horizontal (plastic pumps) or vertical position (plastic and metal pumps). Optional ANSI/DIN/ISO flange (SS pumps only) or 2” tri-clamp connection upgrade available upon request (SS pumps only).
Construction
Wetted Materials: Polypropylene (FT15ZP), PVDF (FT15ZV), Aluminum (FT15ZA), Stainless Steel (FT15ZS)
Diaphragm Materials: Neoprene, Santoprene, FKM, EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE, Neoprene, Buna, EPDM, FKM, Santoprene, Hytrel®, Polyurethane
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene
FDA-compliant material options available.
Maximum Flow Rate: 133 gpm (503 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.24 gal (0.91 lit)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Maximum Particle Size: 0.38 in (9.7 mm)
Sound Pressure : 77 dB(A)
Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.
Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.
Repair Parts & Kits Readily available inlcuding Wet End Kits, Air End Kits and Valve Kits.
