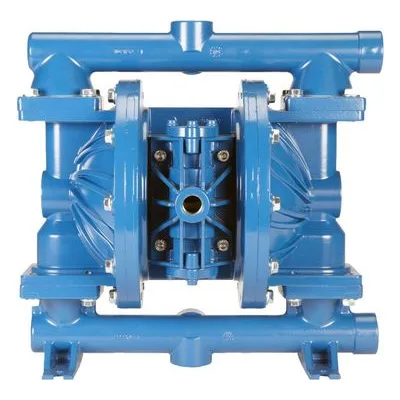

1” (25 mm) Metallic / Non-Metallic Air Operated Double Diaphragm Pumps

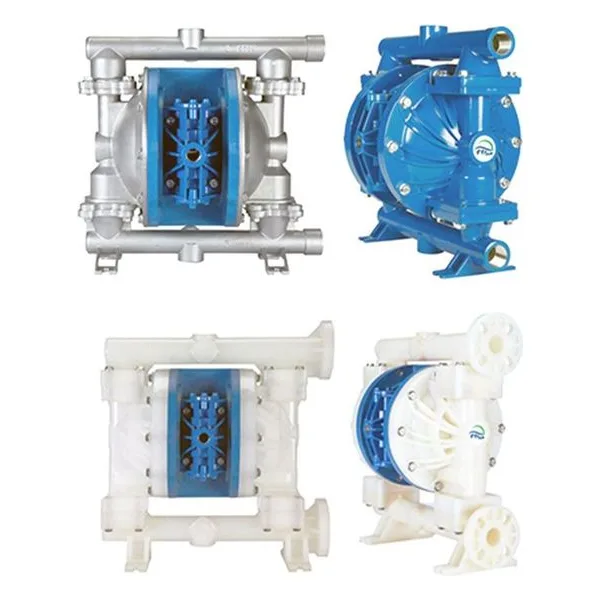

FT10 Metallic & Non-Metallic (Plastic) Models: Suction & Discharge Size: 1” x 1”
Specifications
Porting Location: End
Connection Types: FNPT, FBSPT, ANSI/DIN/ISO flange
Air Inlet x Air Exhaust Size: 1/2” FNPT x 1/2” FNPT
Optional FNPT or FBSPT threaded center port location in either horizontal or vertical position.
Construction
Wetted Materials: Polypropylene (FT10P), PVDF (FT10V), Aluminum (FT10A), Stainless Steel (FT10S)
Diaphragm Materials: Neoprene, Santoprene, FKM,EPDM, PTFE, Buna, Hytrel®, Polyurethane
Air Valve: GFRPP, Aluminum
Ball Materials: Neoprene, Buna, EPDM, FKM, Santoprene, PTFE, 316SS
Seat Materials: Aluminum, 316SS, Polypropylene, PVDF, PTFE
O-ring Materials: Neoprene, Buna, EPDM, FKM, PTFE, Polyurethane, FEP/FKM, Santoprene
FDA-compliant material options available.
Capabilities
Maximum Flow Rate: 56 gpm (212 lpm)
Maximum Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.05 gal (0.19 lit)
Minimum Air Inlet Pressure: 10 psig (0.7 bar)
Max Particle Size: 0.25 in (6.4 mm)
Sound Pressure: 73.6 dB(A)
Typical Applications Include: Acids & Bases, Plating Solutions, Wastewater, Paints, Inks and Solvents, Ceramic Slip & glaze as well as Lubricants and Oils.
Industry Use Cases Include: Mining, Paints and Coatings, Ceramics, Pulp & Paper, Electroplating & Anodizing, Wastewater, Marine, Chemical Manufacturing & Distribution and OEM's.
Repair Parts & Kits Readily available inlcuding Wet End Kits, Air End Kits and Valve Kits.
