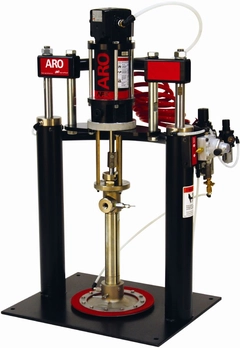

ARO TP0443T21GN47S32 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 43:1 Ratio, Container Suitability: 5 Gallon (35 lbs). 300 Series Stainless Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 1308 - 6549 psi (90.2 - 451.7 bar) Pressure Range.
ARO TP0443T21GN47S32 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 43:1 Ratio, Container Suitability: 5 Gallon (35 lbs). 300 Series Stainless Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 1308 - 6549 psi (90.2 - 451.7 bar) Pressure Range.
Air Inlet | 1/2 - 14 NPTF - 1 |
Build | Two-Post Ram |
CCN Number | 15338023 |
Discharge NPT (Inches) | 1/2 - 14 NPTF - 1 |
Includes | Features a two-post ram pump follower plate and controls designed for high-viscosity applications |
Inlet Pressure (PSI) | 30 - 150 psi (2.1 - 10.3 bar) |
Material | 300 Series Stainless Steel |
Model Number | AF0443T21GN47 |
Model Series | ARO Force 5 Gallon TPX Package |
Motor | 4-1/4" |
Mounting Type | 5 Gallon Container (35 lbs) |
Options | Advanced Ram & Pump Controls |
Other Factors | 4" Stroke Length |
Packing Gland | UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs) |
Pressure Range | 1308 - 6549 psi (90.2 - 451.7 bar) |
Product Notes | Hardened Stainless Steel w/ Hard Chrome Plating Plunger |
Pump Size | 43:1 |
Quick Specs | AFX 5 GAL RAM PACKAGE TP0443T21GN47S32 |
Spring | Multiple Wave Spring |
Suction NPT (Inches) | Follower Plate Mounted |
Type | Chop Check |
