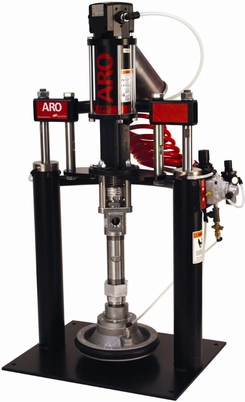

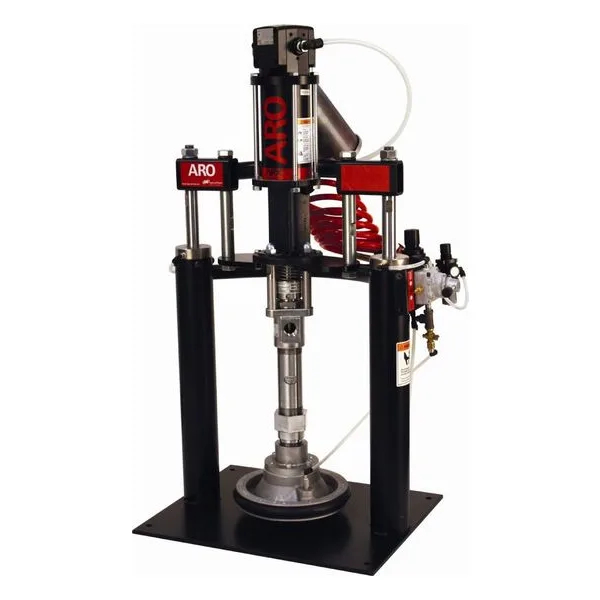

ARO Force Piston Pumps 5 Gallon TPX Package - 0.74 GPM to 3.8 GPM (2.8 LPM to 14.3 LPM). Features a two-post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required. Integrated wet cup ensures extended pump life. Reliability - Eliminating downtime, the unbalanced air valve ensures stall-free pump operation. Durability - Hard chrome plated plunger improves abrasion resistance. Versatility - Multiple mounting configurations and materials of construction for your specific application needs. Environmentally Sound - Optional muffler ensures pump meets OSHA specifications. Serviceability - Minimal part count combined with tie-rod construction for simple, efficient repairs. Typical Applications - Pumping sealants, adhesives, epoxies, inks, lubricants, urethane, silicone, and caulk. Package Description: 5 Gallon, Two-Post Ram Package, Basic Pump Model: AF0665S11XXXX, AF0646S11XXXX, AF0844S11XXXX, AF0443S21XXXX, AF0623S11XXXX, AF0423S11XXXX, AF0411G11XXXX, Two-Post Ram: RM052S-C, Muffler: 67445-1, 67445-2, 67445-3, 5 Gallon Follower Plate
Search Results
(62 results)
TP0411G21FF48A72
ARO
ARO TP0411G21FF48A72 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 11:1 Ratio, Container Suitability: 5 Gallon (35 lbs). 300 Series Stainless Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring w/ 316 Stainless Steel Balls, Hardened Stainless Steel w/ Ceramic Coating Plunger. 1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 330 - 1747 psig (23 - 120 bar) Pressure Range.
TP0423S21FF47E32
ARO
ARO TP0423S21FF47E32 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 23:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3690 psi (47.6 - 254.5 bar) Pressure Range.
TP0443S21GN47E32
ARO
ARO TP0443S21GN47E32 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 43:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 1308 - 6549 psi (90.2 - 451.7 bar) Pressure Range.
TP0623S21FF47E32
ARO
ARO TP0623S21FF47E32 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ hard chrome coating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 4215 psi (47.6 - 290.7 bar) Pressure Range.
TP0646S21FF47E32
ARO
ARO TP0646S21FF47E32 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 46:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 1380 - 7485 psi (95.1 - 516.2 bar) Pressure Range.
TP0646S21FF47EA2
ARO
ARO TP0646S21FF47EA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 46:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 1380 - 7485 psi (95.1 - 516.2 bar) Pressure Range.
TP0665S21FF47A72
ARO
ARO TP0665S21FF47A72 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 65:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger. Flange Mount Inlet, 3/4 - 14 NPTF - 1 Outlet, 1950 - 7475 psi (134.5 - 515.5 bar) Pressure Range.
TP0665S21FF47A82
ARO
ARO TP0665S21FF47A82 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 65:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger. Flange Mount Inlet, 3/4 - 14 NPTF - 1 Outlet, 1950 - 7475 psi (134.5 - 515.5 bar) Pressure Range.
TP0665S21FF47E32
ARO
ARO TP0665S21FF47E32 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 65:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger. Flange Mount Inlet, 3/4 - 14 NPTF - 1 Outlet, 1950 - 7475 psi (134.5 - 515.5 bar) Pressure Range.
TP0665S21FF47EA2
ARO
ARO TP0665S21FF47EA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 65:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger. Flange Mount Inlet, 3/4 - 14 NPTF - 1 Outlet, 1950 - 7475 psi (134.5 - 515.5 bar) Pressure Range.
TP0844S21FF47E32
ARO
ARO TP0844S21FF47E32 TPX Series Two-Post Ram Piston Pump Package. 8" Motor, 44:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 1320 - 5964 psi (91.0 - 411.3 bar) Pressure Range.
TP0844S21FF47EC2
ARO
ARO TP0844S21FF47EC2 TPX Series Two-Post Ram Piston Pump Package. 8" Motor, 44:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 1320 - 5964 psi (91.0 - 411.3 bar) Pressure Range.
