AF0443T21GN47

Image shown may not be actual product

AF0443T21GN47

0 reviews

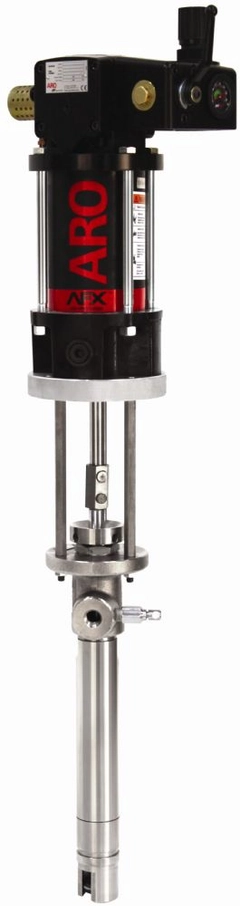

ARO AF0443T21GN47 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 4-1/4" Motor, 43.6:1 Ratio, Container Suitability: 5 Gallon (35 lbs). 300 Series Stainless Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 1308 - 6549 psi (90.2 - 451.7 bar) Pressure Range.

$7,083.92

Best Price Guarantee!
1416PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: AF0443T21GN47

Overview
Reviews
Literature/Manuals

AF0443T21GN47

Air Inlet	1/2 - 14 NPTF - 1
CCN Number	46724241
Discharge NPT (Inches)	1/2 - 14 NPTF - 1
Discharge Volume Per Cycle	2.85 in³
Inlet Pressure (PSI)	30 - 150 psi (2.1 - 10.3 bar)
Material	300 Series Stainless Steel
Model Series	ARO Force Pneumatic Chop Check Piston Pumps
Motor	4-1/4"
Mounting Type	5 Gallon Container (35 lbs)
Other Factors	4" Stroke Length

Packing Gland	UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs)
Pressure Range	1308 - 6549 psi (90.2 - 451.7 bar)
Product Notes	Hardened Stainless Steel w/ Hard Chrome Plating Plunger
Pump Size	43.6:1
Quick Specs	AFX CHOP-CHECK PUMP AF0443T21GN47
Spring	Multiple Wave Spring
Suction NPT (Inches)	Follower Plate Mounted
Type	Chop Check
