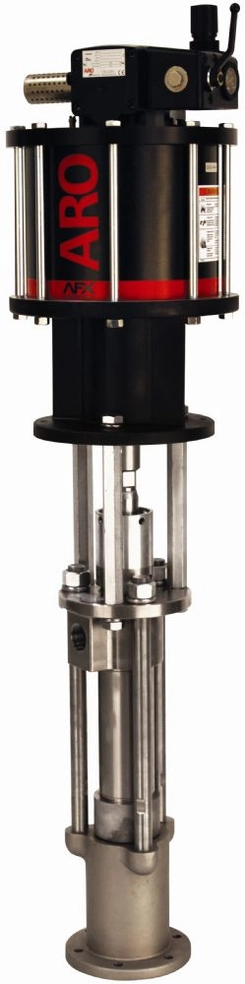

ARO Force Pneumatic Driven Chop Check Piston Pumps - The heavy hitters of the line, ARO Force chop check pumps are designed to move medium- to high-viscosity fluids ranging from 15,000 to more than 1,000,000 cPs, and at delivery rates up to 12.2 gpm (46.3 L/min).
Search Results
(204 results)AF0412T11KK47-1
ARO
ARO AF0412T11KK47-1 AFX Series Air-Operated Chop Check Extrusion Primer Piston Pump. 4-1/4" Motor, 12:1 Ratio, Container Suitability: Remote Mounting. Stainless Steel, Glass-Filled PTFE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF -1 (Female) & 2 - 11-1/2 PTF SAE Short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.
NP322FP43R8-50
ARO
ARO NP322FP43R8-50 Air-Operated Two-Post Ram Piston Pump Extrusion System. 3" Motor, 22:1 Ratio, Container Suitability: 5 Gallon Container. Carbon Steel, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 660 - 3300 psi (45.5 - 227.6 bar) Pressure Range.
AF0423S11GF47
ARO
ARO AF0423S11GF47 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 4-1/4" Motor, 23:1 Ratio, Container Suitability: Remote Mounting. Carbon Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3690 psi (47.6 - 254.5 bar) Pressure Range.
AF0443S21GF47
ARO
ARO AF0443S21GF47 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 4-1/4" Motor, 43.6:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (lower cup) (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 1308 - 6549 psi (90.2 - 451.7 bar) Pressure Range.
AF0623S11UU47
ARO
ARO AF0623S11UU47 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 6" Motor, 23:1 Ratio, Container Suitability: Remote Mounting. Carbon Steel, Glass-Filled PTFE / Leather Staggered (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ hard chrome coating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 4215 psi (47.6 - 290.7 bar) Pressure Range.
AF0665S11KK47
ARO
ARO AF0665S11KK47 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 6" Motor, 65:1 Ratio, Container Suitability: Remote Mounting. Carbon Steel, Mineral-Filled PTFE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger. Flange Mount Inlet, 3/4 - 14 NPTF - 1 Outlet, 1950 - 7475 psi (134.5 - 515.5 bar) Pressure Range.
AF0813S11KK44
ARO
ARO AF0813S11KK44 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 8" Motor, 13:1 Ratio, Container Suitability: Remote Mounting. Carbon Steel, Glass-Filled PTFE (Upper & Lower) Packing, Multiple Wave Spring, Carbon steel with Hard Chrome Plating Plunger. Flange Mount Inlet, 1-1/2 - 11-1/2 NPTF - 1 Outlet, 390 - 1900 psi (26.9 - 131.0 bar) Pressure Range.
AF1230S11KK44
ARO
ARO AF1230S11KK44 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 12" Motor, 30:1 Ratio, Container Suitability: Remote Mounting. Carbon Steel, Glass-Filled PTFE (Upper & Lower) Packing, Multiple Wave Spring, Carbon steel with Hard Chrome Plating Plunger. 2" NPT(F) Inlet, 1-1/2 - 11-1/2 NPTF - 1 Outlet, 900 - 3250 psi (62.1 - 224.1 bar) Pressure Range.
NM2322E-71-P48
ARO
ARO NM2322E-71-P48 N-Series Air-Operated Chop Check Extrusion Piston Pump. 3" Motor, 22:1 Ratio, Carbon Steel, Multiple Wave Spring, Hardened Stainless Steel with Alternate Piston Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 660 - 3300 psi (45.5 - 227.6 bar) Pressure Range.
NM2322F-71-P43
ARO
ARO NM2322F-71-P43 N-Series Air-Operated Chop Check Extrusion Piston Pump. 3" Motor, 22:1 Ratio, Stainless Steel, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 660 - 3300 psi (45.5 - 227.6 bar) Pressure Range.
AF0412T11FF47
ARO
ARO AF0412T11FF47 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 4-1/4" Motor, 12:1 Ratio, Container Suitability: Remote Mounting. Stainless Steel, UHMW-PE Upper & Lower Packing, Multiple Wave Spring, Hardened Stainless Steel w/Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF -1 (Female) & 2 - 11-1/2 PTF SAE Short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.
AF0412T11FF47-1
ARO
ARO AF0412T11FF47-1 AFX Series Air-Operated Chop Check Extrusion Piston Pump. 4-1/4" Motor, 12:1 Ratio, Container Suitability: Remote Mounting. Stainless Steel, UHMW-PE Upper & Lower Packing, Multiple Wave Spring, Hardened Stainless Steel w/Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF -1 (Female) & 2 - 11-1/2 PTF SAE Short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.
