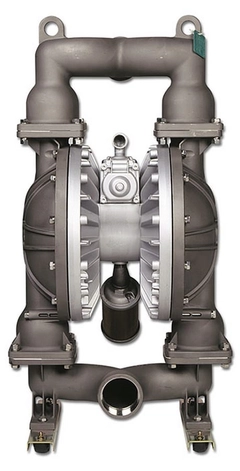

Image shown may not be actual product

DP-80BSC-HD-NPT

0 reviews

Yamada Pumps DP-80BSC-HD-NPT Type, Model 854515 DP-80 XDP Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Stainless Steel (316) - NPT Material, 215 GPM Max Flow, 3" (NPT or ANSI Flange) Fluid Port, 3/4" Female NPT (includes ball valve) Air Inlet, 1" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor

$6,193.60

Best Price Guarantee!
1238PumpPoints

Item: DP-80BSC-HD-NPT | Model #: 854515

Overview
Series Info
Reviews
Literature/Manuals

DP-80BSC-HD-NPT

Actual Weight	263
Air Exhaust	1" Female NPT (includes silencer)
Air Inlet	3/4" Female NPT (includes ball valve)
Air Supply Pressure	20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm	Neoprene
Discharge Volume Per Cycle	2.25 gallons (8.5 liters)
Fluid Port	3" (NPT or ANSI Flange)
Liquid Temperature	180°F (82°C)
Material	Stainless Steel (316) - NPT
Max Cycles Per Minute	95

Maximum Flow (GPM)	215
Max Suction Lift	19 feet
Model Number	854515
Model Series	DP-80 XDP
Motor	Aluminum Air Motor
Outside Dimension	20.54" W x 38.74" H
Solids (Inches)	13/32" (10 mm)
Type	854515
Valve / Seat / O-Ring	Neoprene

XDP Series Information

Features & Benefits
Available in 1-1/2", 2" and 3" port sizes, XDP pumps are built on the liquid platform of a standard (pneumatically-actuated) NDP Series pump, but with a mechanically-actuated air motor. Air power is conserved by actuating the air valve using a mechanical linkage instead of relying on air pressure. Air power is reduced versus a standard air-actuated valve, providing higher pump efficiency.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps XDP Pump Brochure		View
	Yamada Pumps XDP Pump Manual		View
	Yamada Pumps NDP-40 Pump Specifications		View
	Yamada Pumps NDP-50 Pump Specifications		View
	Yamada Pumps NDP-80 Pump Specifications		View
	Yamada Pumps DP-80BSC-HD-NPT Repair Parts		View
