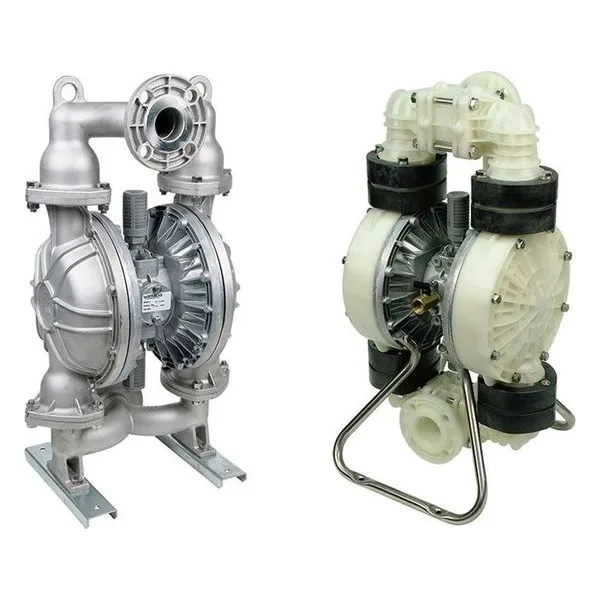

Xtreme Duty Pro XDP For xtremely demanding process applications
The Yamada Xtreme Duty Pro XDP is designed for use in process type applications including filter press, high pressure, extended deadheading, long runs of discharge pipe, and where air consumption is critical.
XDP pumps are capable of running on air pressure equivalents as high as 125 PSI or as low as 5 PSI and provide the same liquid side performance as the NDP series pumps.
Yamada America DP-40BPS-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854401. Polypropylene Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BFS-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854385. Cast Iron Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BAN-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854341. Aluminum Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" NPT/ANSI Flange Combination Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BAE-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854342. Aluminum Body, Nordel Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" NPT/ANSI Flange Combination Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BAH-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854345. Aluminum Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 1-1/2" NPT/ANSI Flange Combination Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BAS-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854346. Aluminum Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1-1/2" NPT/ANSI Flange Combination Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BAV-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854343. Aluminum Body, Viton Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" NPT/ANSI Flange Combination Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BAT-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854344. Aluminum Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" NPT/ANSI Flange Combination Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

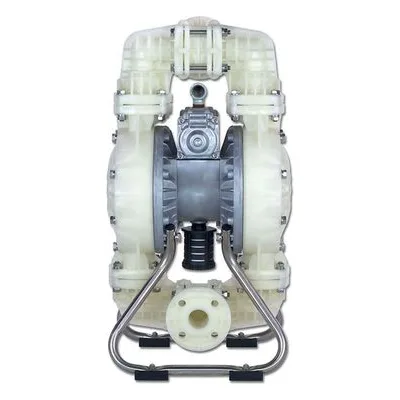

Yamada America DP-40BPC-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854395. Polypropylene Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BPN-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854396. Polypropylene Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BPE-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854397. Polypropylene Body, Nordel Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
Yamada America DP-40BPH-HD DP-40 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854400. Polypropylene Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 97 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.
