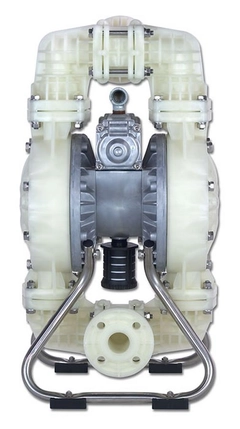

Image shown may not be actual product

DP-40BPC-HD

0 reviews

Yamada Pumps DP-40BPC-HD Type, Model 854395 DP-40 XDP Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Polypropylene (PPG) Material, 107 GPM Max Flow, 1-1/2" Fluid Port, 1/2" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor

$3,015.00

Best Price Guarantee!
603PumpPoints

Item: DP-40BPC-HD | Model #: 854395

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

DP-40BPC-HD

Actual Weight	78
Air Exhaust	3/4" Female NPT (includes silencer)
Air Inlet	1/2" Female NPT (includes ball valve)
Air Supply Pressure	20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm	Neoprene
Discharge Volume Per Cycle	0.79 gallons (3.0 liters)
Fluid Port	1-1/2"
Liquid Temperature	180°F (82°C) Max
Material	Polypropylene (PPG)
Max Cycles Per Minute	148

Maximum Flow (GPM)	107
Max Suction Lift	18 Feet
Model Number	854395
Model Series	DP-40 XDP
Motor	Aluminum Air Motor
Outside Dimension	15.75" W x 29.61" H
Solids (Inches)	9/32" (7 mm)
Type	854395
Valve / Seat / O-Ring	Neoprene

XDP Series Information

Features & Benefits
Available in 1-1/2", 2" and 3" port sizes, XDP pumps are built on the liquid platform of a standard (pneumatically-actuated) NDP Series pump, but with a mechanically-actuated air motor. Air power is conserved by actuating the air valve using a mechanical linkage instead of relying on air pressure. Air power is reduced versus a standard air-actuated valve, providing higher pump efficiency.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps XDP Pump Brochure		View
	Yamada Pumps XDP Pump Manual		View
	Yamada Pumps NDP-40 Pump Specifications		View
	Yamada Pumps NDP-50 Pump Specifications		View
	Yamada Pumps NDP-80 Pump Specifications		View
	DP-40BPS-HD Yamada Pump Repair Parts Exploded View		View
