DP-80BPT-HD

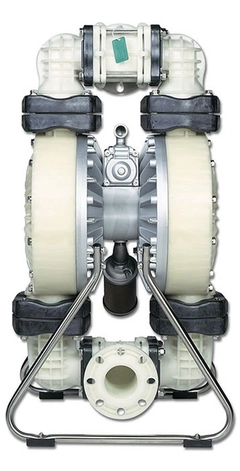

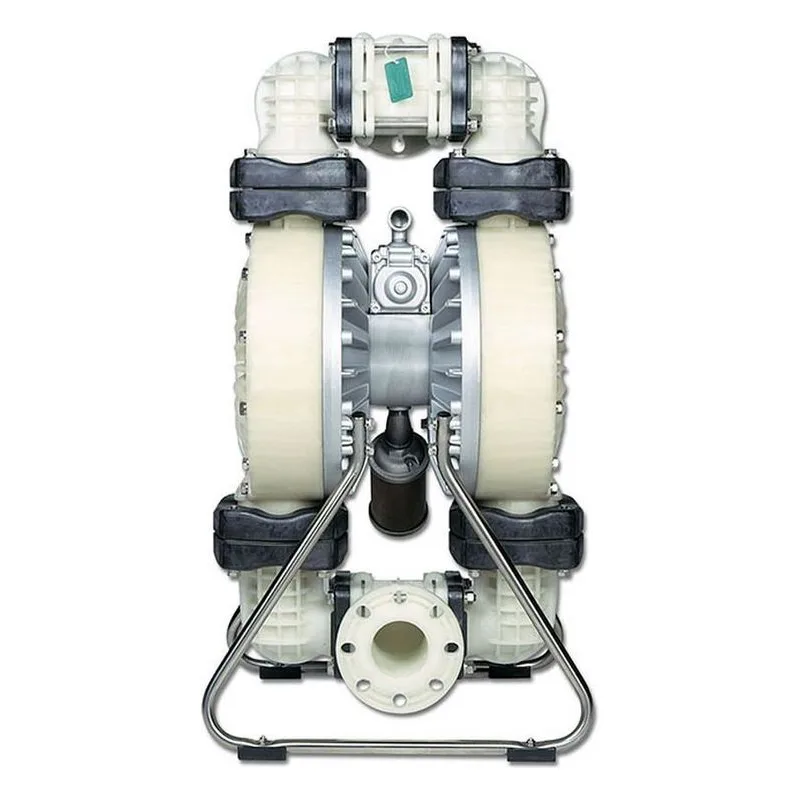

Yamada America DP-80BPT-HD DP-80 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854551. Polypropylene Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" ANSI Flange Inlet & Outlet, 161.1 GPM Flow Rate, Passes up to 25/64" (10mm) Solids.
$12,345.00
- Best Price Guarantee!
- 2469PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
DP-80BPT-HD
Yamada America DP-80BPT-HD DP-80 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854551. Polypropylene Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" ANSI Flange Inlet & Outlet, 161.1 GPM Flow Rate, Passes up to 25/64" (10mm) Solids.
| Air Exhaust | 1" Female NPT (includes silencer) |
| Air Inlet | 3/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-125 PSI |
| Connection Type | ANSI Flange |
| Diaphragm | PTFE |
| Discharge NPT (Inches) | 3" |
| Discharge Volume Per Cycle | 0.81 Gallons |
| Fluid Port | 3" |
| Liquid Temperature | 180°F (82°C) |
| Material | Polypropylene |
| Max Cycles Per Minute | 360 |
| Maximum Flow (GPM) | 161.1 |
| Max Suction Lift | 9' |
| Model Number | 854551 |
| Model Series | DP-80 |
| Motor | Aluminum |
| Product Notes | Xtreme Duty |
| Solids (Inches) | 25/64" (10mm) |
| Suction NPT (Inches) | 3" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
XDP Series Information
| Features & Benefits |
|---|
| Available in 1-1/2", 2" and 3" port sizes, XDP pumps are built on the liquid platform of a standard (pneumatically-actuated) NDP Series pump, but with a mechanically-actuated air motor. Air power is conserved by actuating the air valve using a mechanical linkage instead of relying on air pressure. Air power is reduced versus a standard air-actuated valve, providing higher pump efficiency. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
Repair Parts for DP-80BPT-HD
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | K80-PT | Ships in 1-2 Weeks | $2,314.00 | ||
