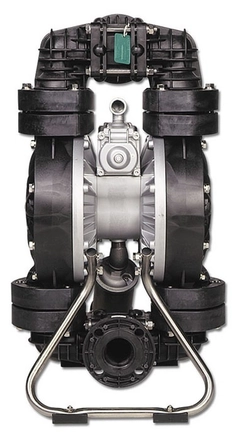

Image shown may not be actual product
DP-50BVH-HD
Yamada America DP-50BVH-HD DP-50 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854476. Kynar Body, Hytrel Diaphragm & Balls, PTFE O-Rings, Aluminum Air Motor. 2" ANSI Flange Inlet & Outlet, 121.5 GPM Flow Rate, Passes up to 5/16" (8mm) Solids.
$11,520.00
- Best Price Guarantee!
- 2304PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
DP-50BVH-HD
Yamada America DP-50BVH-HD DP-50 Series Xtreme Duty Pro XDP Air Operated Double Diaphragm Pump, Model Number 854476. Kynar Body, Hytrel Diaphragm & Balls, PTFE O-Rings, Aluminum Air Motor. 2" ANSI Flange Inlet & Outlet, 121.5 GPM Flow Rate, Passes up to 5/16" (8mm) Solids.
| Air Exhaust | 3/4" Female NPT (includes silencer) |
| Air Inlet | 3/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-125 PSI |
| Connection Type | ANSI Flange |
| Diaphragm | Hytrel (TPE) |
| Discharge NPT (Inches) | 2" |
| Discharge Volume Per Cycle | 0.92 Gallons |
| Fluid Port | 2" |
| Liquid Temperature | 248°F (120°C) |
| Material | Kynar (PVDF) |
| Max Cycles Per Minute | 460 |
| Maximum Flow (GPM) | 121.5 |
| Max Suction Lift | 16' |
| Model Number | 854476 |
| Model Series | DP-50 |
| Motor | Aluminum |
| Product Notes | Xtreme Duty |
| Solids (Inches) | 5/16" (8mm) |
| Suction NPT (Inches) | 2" |
| Valve Balls | Hytrel (TPE) |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
XDP Series Information
| Features & Benefits |
|---|
| Available in 1-1/2", 2" and 3" port sizes, XDP pumps are built on the liquid platform of a standard (pneumatically-actuated) NDP Series pump, but with a mechanically-actuated air motor. Air power is conserved by actuating the air valve using a mechanical linkage instead of relying on air pressure. Air power is reduced versus a standard air-actuated valve, providing higher pump efficiency. |
