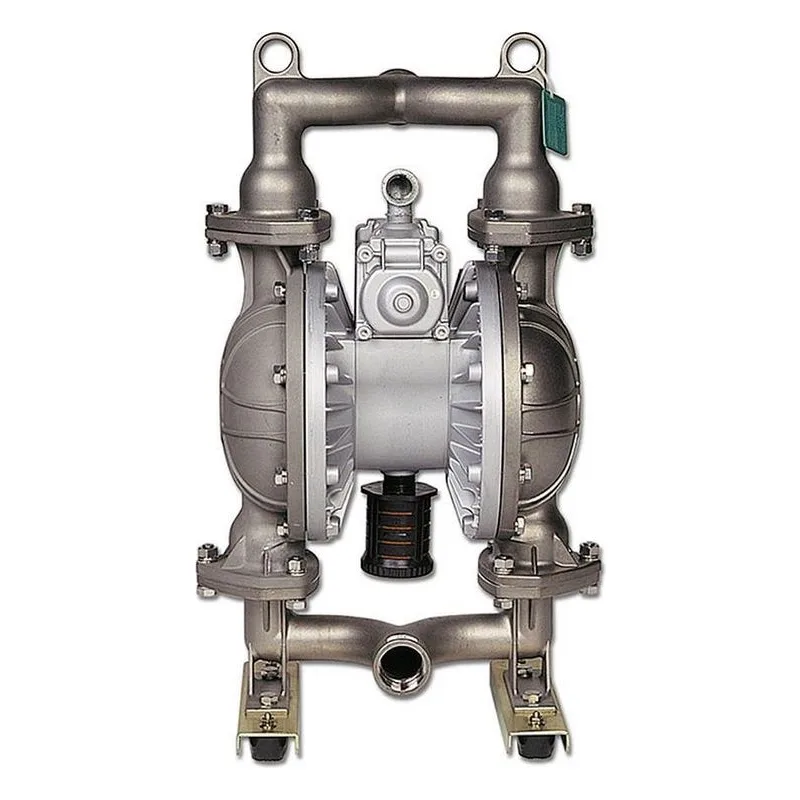

Image shown may not be actual product
Yamada Pumps DP-40BSC-HD-NPT Type, Model 854363 DP-40 XDP Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Stainless Steel (316) - NPT Material, 107 GPM Max Flow, 1-1/2" Fluid Port, 1/2" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor
Yamada Pumps DP-40BSC-HD-NPT Type, Model 854363 DP-40 XDP Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Stainless Steel (316) - NPT Material, 107 GPM Max Flow, 1-1/2" Fluid Port, 1/2" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor
Actual Weight | 107 |
Air Exhaust | 3/4" Female NPT (includes silencer) |
Air Inlet | 1/2" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | Neoprene |
Discharge Volume Per Cycle | 0.79 gallons (3.0 liters) |
Fluid Port | 1-1/2" |
Liquid Temperature | 180°F (82°C) Max |
Material | Stainless Steel (316) - NPT |
Max Cycles Per Minute | 148 |
Maximum Flow (GPM) | 107 |
Max Suction Lift | 18 Feet |
Model Number | 854363 |
Model Series | DP-40 XDP |
Motor | Aluminum Air Motor |
Outside Dimension | 16.18" W x 27.75" H |
Solids (Inches) | 9/32" (7 mm) |
Type | 854363 |
Valve / Seat / O-Ring | Neoprene |
Features & Benefits |
---|
Available in 1-1/2", 2" and 3" port sizes, XDP pumps are built on the liquid platform of a standard (pneumatically-actuated) NDP Series pump, but with a mechanically-actuated air motor. Air power is conserved by actuating the air valve using a mechanical linkage instead of relying on air pressure. Air power is reduced versus a standard air-actuated valve, providing higher pump efficiency. |
