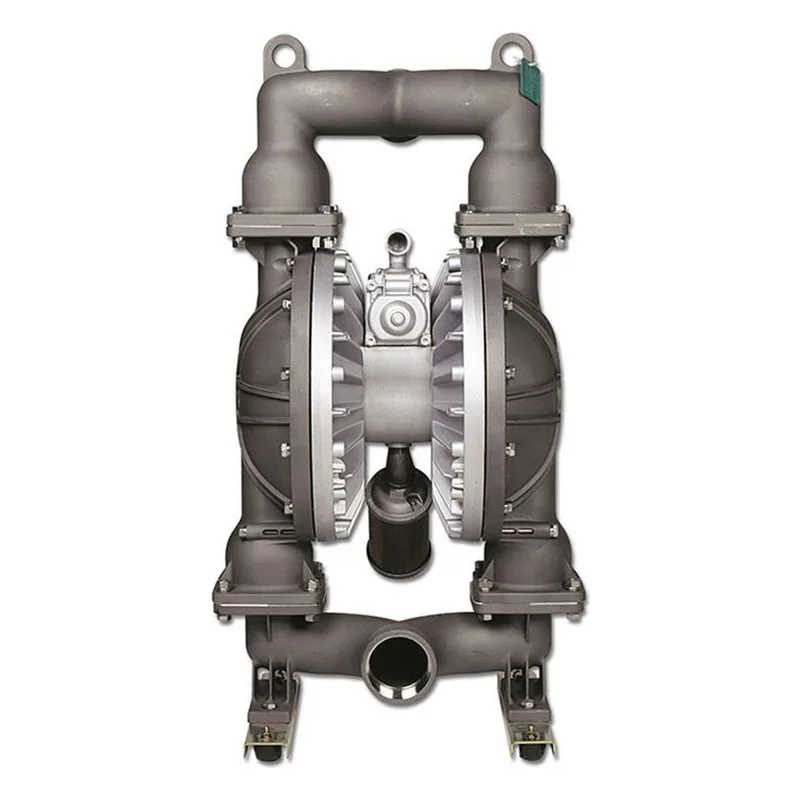

Image shown may not be actual product
NDP-80BSU-FDA
Yamada America NDP-80BSU-FDA NDP-80 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 852651-U-FDA. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Grey PTFE Coated Air Motor. 3" Tri-Clamp Inlet & Outlet, 4" Sanitary Clamp, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
- Overview
- Series Info
- Reviews
- Literature/Manuals
NDP-80BSU-FDA
Yamada America NDP-80BSU-FDA NDP-80 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 852651-U-FDA. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Grey PTFE Coated Air Motor. 3" Tri-Clamp Inlet & Outlet, 4" Sanitary Clamp, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
| Air Exhaust | 1" Female NPT (includes silencer) |
| Air Inlet | 3/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | Tri-Clamp |
| Diaphragm | Ultimate (PTFE/EPDM) |
| Discharge NPT (Inches) | 3" |
| Discharge Volume Per Cycle | 1.0 Gallons |
| Fluid Port | 3" |
| Liquid Temperature | 212°F (100°C) |
| Material | 316 Stainless Steel |
| Max Cycles Per Minute | 160 |
| Maximum Flow (GPM) | 215 |
| Max Suction Lift | 19' |
| Model Number | 852651-U-FDA |
| Model Series | NDP-80 |
| Motor | Grey PTFE Coated |
| Product Notes | FDA Compliant |
| Sanitary Clamp Size | 4" |
| Solids (Inches) | 13/32" (10mm) |
| Suction NPT (Inches) | 3" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
NDP-80 Series Information
| Features & Benefits |
|---|
| Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3" ANSI B16.5 #150 Aluminum (ADC-12) 3" ANSI B16.5 #150 (with tapped 3" Female NPT) Stainless Steel (316) 3" ANSI B16.5 #150 or 3" Female NPT Cast Iron 3" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
