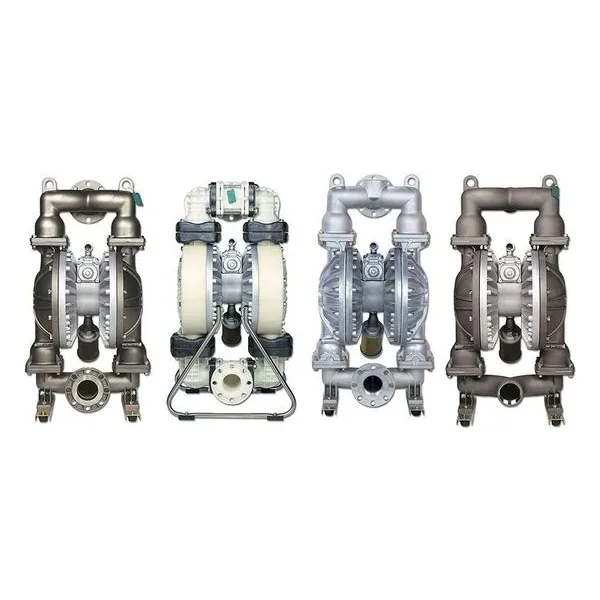

Yamada NDP-80 Series Double Diaphragm Pumps
The Yamada NDP-80 series is the flagship of the NDP line of Air Powered Double Diaphragm (AODD) pumps, providing a maximum flow rate of 214 gallons per minute. Pumps are available in aluminum, stainless steel (316), cast iron, and polypropylene construction, with a wide variety of diaphragm materials.
Yamada America NDP-80BPS NDP-80 Series Air Operated Double Diaphragm Pump, Model Number 852727. Polypropylene Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 3" ANSI Flange Inlet & Outlet, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BFS NDP-80 Series Air Operated Double Diaphragm Pump, Model Number 852861. Cast Iron Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 3" FNPT Inlet & Outlet, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BAE NDP-80 Series Air Operated Double Diaphragm Pump, Model Number 852430. Aluminum Body, Nordel Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" NPT/ANSI Flange Combination Inlet & Outlet, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BAC-HP NDP-80 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852429-HP. Aluminum Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" NPT/ANSI Flange Combination Inlet & Outlet, 107.5 GPM Flow Rate, 180 PSI, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BAN-HP NDP-80 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852238-HP. Aluminum Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" NPT/ANSI Flange Combination Inlet & Outlet, 107.5 GPM Flow Rate, 180 PSI, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BSE-HP-NPT NDP-80 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852654-HP. 316 Stainless Steel Body, Nordel Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" FNPT Inlet & Outlet, 107.5 GPM Flow Rate, 180 PSI, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BSS-HP-NPT NDP-80 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852728-HP. 316 Stainless Steel Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 3" FNPT Inlet & Outlet, 107.5 GPM Flow Rate, 180 PSI, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BFS-HP NDP-80 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852861-HP. Cast Iron Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 3" FNPT Inlet & Outlet, 107.5 GPM Flow Rate, 180 PSI, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BAN NDP-80 Series Air Operated Double Diaphragm Pump, Model Number 852238. Aluminum Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" NPT/ANSI Flange Combination Inlet & Outlet, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BAH NDP-80 Series Air Operated Double Diaphragm Pump, Model Number 852239. Aluminum Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 3" NPT/ANSI Flange Combination Inlet & Outlet, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BAS NDP-80 Series Air Operated Double Diaphragm Pump, Model Number 852725. Aluminum Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 3" NPT/ANSI Flange Combination Inlet & Outlet, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
Yamada America NDP-80BAV NDP-80 Series Air Operated Double Diaphragm Pump, Model Number 852306. Aluminum Body, Viton Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" NPT/ANSI Flange Combination Inlet & Outlet, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.
