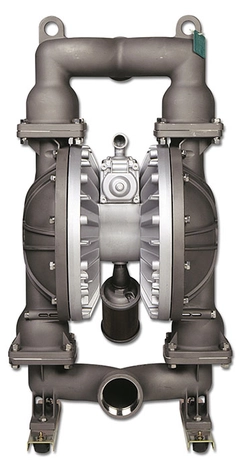

Image shown may not be actual product
Yamada Pumps NDP-80BSE-NPT Type, Model 852654 NDP-80 Series, Air Operated Double Diaphragm Pump, EPDM Diaphragm, EPDM Flat Check Valve / O-Rings, Stainless Steel (316) - NPT Material, 215 GPM Max Flow, 3" (NPT or ANSI Flange) Fluid Port, 3/4" Female NPT (includes ball valve) Air Inlet, 1" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor
Yamada Pumps NDP-80BSE-NPT Type, Model 852654 NDP-80 Series, Air Operated Double Diaphragm Pump, EPDM Diaphragm, EPDM Flat Check Valve / O-Rings, Stainless Steel (316) - NPT Material, 215 GPM Max Flow, 3" (NPT or ANSI Flange) Fluid Port, 3/4" Female NPT (includes ball valve) Air Inlet, 1" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor
Actual Weight | 263 |
Air Exhaust | 1" Female NPT (includes silencer) |
Air Inlet | 3/4" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | EPDM |
Discharge Volume Per Cycle | 2.25 gallons (8.5 liters) |
Fluid Port | 3" (NPT or ANSI Flange) |
Liquid Temperature | 212°F (100°C) Max |
Material | Stainless Steel (316) - NPT |
Max Cycles Per Minute | 95 |
Maximum Flow (GPM) | 215 |
Max Suction Lift | 19 feet |
Model Number | 852654 |
Model Series | NDP-80 Models |
Motor | Aluminum Air Motor |
Outside Dimension | 20.54" W x 38.74" H |
Solids (Inches) | 13/32" (10 mm) |
Type | 852654 |
Valve / Seat / O-Ring | EPDM |
Features & Benefits |
---|
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3" ANSI B16.5 #150 Aluminum (ADC-12) 3" ANSI B16.5 #150 (with tapped 3" Female NPT) Stainless Steel (316) 3" ANSI B16.5 #150 or 3" Female NPT Cast Iron 3" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
