NDP-80BFU

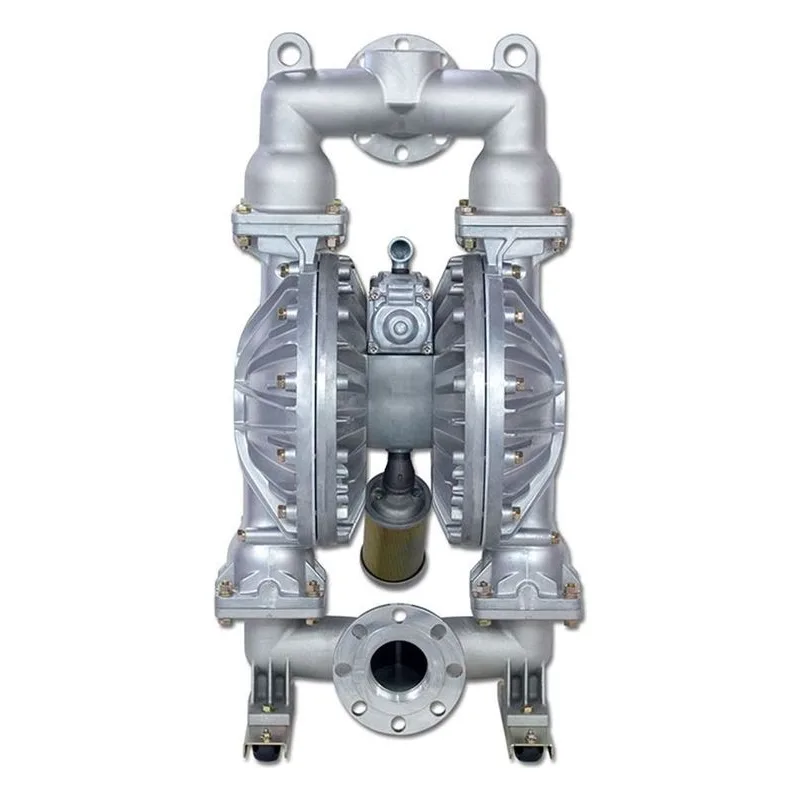

Image shown may not be actual product

NDP-80BFU

0 reviews

Yamada America NDP-80BFU NDP-80 Series Air Operated Double Diaphragm Pump, Model Number 852857-U. Cast Iron Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 3" FNPT Inlet & Outlet, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.

Call for Pricing

Best Price Guarantee!

Item: NDP-80BFU | Model #: 852857-U

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-80BFU

Air Exhaust	1" Female NPT (includes silencer)
Air Inlet	3/4" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	FNPT
Diaphragm	Ultimate (PTFE/EPDM)
Discharge NPT (Inches)	3"
Discharge Volume Per Cycle	1.0 Gallons
Fluid Port	3"
Liquid Temperature	212°F (100°C)
Material	Cast Iron
Max Cycles Per Minute	160

Maximum Flow (GPM)	215
Max Suction Lift	19'
Model Number	852857-U
Model Series	NDP-80
Motor	Aluminum
Solids (Inches)	13/32" (10mm)
Suction NPT (Inches)	3"
Valve Balls	PTFE
Valve / Seat / O-Ring	PTFE O-Rings
Valve Type	Ball

NDP-80 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3" ANSI B16.5 #150 Aluminum (ADC-12) 3" ANSI B16.5 #150 (with tapped 3" Female NPT) Stainless Steel (316) 3" ANSI B16.5 #150 or 3" Female NPT Cast Iron 3" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3" ANSI B16.5 #150
Aluminum (ADC-12) 3" ANSI B16.5 #150
(with tapped 3" Female NPT)
Stainless Steel (316) 3" ANSI B16.5 #150
or 3" Female NPT
Cast Iron 3" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-80 Pump Manual		View
	Yamada Pumps NDP-80 Pump Specifications		View
	NDP-80 Operation Manual		View
	NDP-80BFU Ultimate Diaphragm Series Repair Parts		View

Repair Parts for NDP-80BFU

Product		shipping	price
	580962	Ships in 1-2 Weeks	$448.00	Select item
	714371	Ships in 1-2 Weeks	$511.00	Select item
	714365	Ships in 1-2 Weeks	$511.00	Select item
	803113	Ships in 1-2 Weeks	$1,097.00	Select item
	711935	Ships in 1-2 Weeks	$379.00	Select item
	711936	Ships in 1-2 Weeks	$301.00	Select item
	772689	Ships in 1-2 Weeks	$39.00	Select item
	711937	Ships in 1-2 Weeks	$10.00	Select item
	771740	Ships in 1-2 Weeks	$10.00	Select item
	832163	Ships in 1-2 Weeks	$27.00	Select item
	640020	Ships in 1-2 Weeks	$7.00	Select item
	685444	Ships in 1-2 Weeks	$12.00	Select item
	640029	Ships in 1-2 Weeks	$7.00	Select item
	771742	Ships in 1-2 Weeks	$33.00	Select item
	683812	Ships in 1-2 Weeks	$7.00	Select item
	802971	Ships in 1-2 Weeks	$511.00	Select item
	711931	Ships in 1-2 Weeks	$326.00	Select item
	580999	Ships in 1-2 Weeks	$33.00	Select item
	581000	Ships in 1-2 Weeks	$33.00	Select item
	771735	Ships in 1-2 Weeks	$11.00	Select item
	712976	Ships in 1-2 Weeks	$25.00	Select item
	771738	Ships in 1-2 Weeks	$11.00	Select item
	685036	Ships in 1-2 Weeks	$10.00	Select item
	805084	Ships in 1-2 Weeks	$156.00	Select item
	803675	Ships in 1-2 Weeks	$70.00	Select item
	640036	Ships in 1-2 Weeks	$7.00	Select item
	805085	Ships in 1-2 Weeks	$68.00	Select item
	771735	Ships in 1-2 Weeks	$11.00	Select item
	711932	Ships in 1-2 Weeks	$14.00	Select item
	771734	Ships in 1-2 Weeks	$8.00	Select item
	640005	Ships in 1-2 Weeks	$7.00	Select item
	684128	Ships in 1-2 Weeks	$7.00	Select item
	771712	Ships in 1-2 Weeks	$25.00	Select item
	684240	Ships in 1-2 Weeks	$10.00	Select item
	684987	Ships in 1-2 Weeks	$7.00	Select item
717131			Call for Shipping
	833231	Ships in	$1,856.00	Select item
712684			Call for Shipping
	770694	Ships in 1-2 Weeks	$200.00	Select item
	686974	Ships in	$53.00	Select item
	682523	Ships in 1-2 Weeks	$10.00	Select item
	711912	Ships in 1-2 Weeks	$68.00	Select item
	771402	Ships in 1-2 Weeks	$8.00	Select item
	682740	Ships in 1-2 Weeks	$7.00	Select item
	686163	Ships in 1-2 Weeks	$7.00	Select item
	631917	Ships in 1-2 Weeks	$7.00	Select item
	631014	Ships in 1-2 Weeks	$7.00	Select item
	631917	Ships in 1-2 Weeks	$7.00	Select item
	611204	Ships in 1-2 Weeks	$7.00	Select item
	631015	Ships in 1-2 Weeks	$7.00	Select item
	631918	Ships in 1-2 Weeks	$7.00	Select item
	627014	Ships in 1-2 Weeks	$7.00	Select item
	611177	Ships in 1-2 Weeks	$7.00	Select item
	627013	Ships in 1-2 Weeks	$7.00	Select item
	611149	Ships in 1-2 Weeks	$7.00	Select item
	682276	Ships in 1-2 Weeks	$7.00	Select item
	643078	Ships in 1-2 Weeks	$22.00	Select item
	686164	Ships in 1-2 Weeks	$11.00	Select item
	631917	Ships in 1-2 Weeks	$7.00	Select item
	804764	Ships in 1-2 Weeks	$107.00	Select item
	643145	Ships in 1-2 Weeks	$22.00	Select item
	K80-MU	Ships in	Call for pricing
	K80-AM	Ships in 1-2 Weeks	$481.00	Select item
