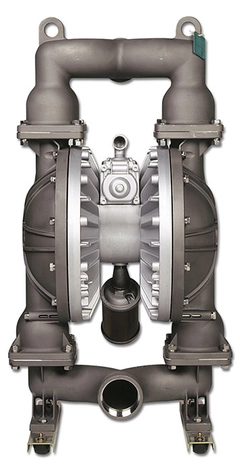

Image shown may not be actual product

NDP-80BFT

0 reviews

Yamada Pumps NDP-80BFT Type, Model 852857 NDP-80 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Cast Iron - NPT Material, 215 GPM Max Flow, 3" (NPT or ANSI Flange) Fluid Port, 3/4" Female NPT (includes ball valve) Air Inlet, 1" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor

$6,080.00

Best Price Guarantee!
1216PumpPoints

Item: NDP-80BFT | Model #: 852857

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-80BFT

Actual Weight	277
Air Exhaust	1" Female NPT (includes silencer)
Air Inlet	3/4" Female NPT (includes ball valve)
Air Supply Pressure	20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm	PTFE
Discharge Volume Per Cycle	1.0 gallons (3.8 liters)
Fluid Port	3" (NPT or ANSI Flange)
Liquid Temperature	212°F (100°C) Max
Material	Cast Iron - NPT
Max Cycles Per Minute	160

Maximum Flow (GPM)	215
Max Suction Lift	19 feet
Model Number	852857
Model Series	NDP-80 Models
Motor	Aluminum Air Motor
Outside Dimension	20.54" W x 38.74" H
Solids (Inches)	13/32" (10 mm)
Type	852857
Valve / Seat / O-Ring	PTFE

NDP-80 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3" ANSI B16.5 #150 Aluminum (ADC-12) 3" ANSI B16.5 #150 (with tapped 3" Female NPT) Stainless Steel (316) 3" ANSI B16.5 #150 or 3" Female NPT Cast Iron 3" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3" ANSI B16.5 #150
Aluminum (ADC-12) 3" ANSI B16.5 #150
(with tapped 3" Female NPT)
Stainless Steel (316) 3" ANSI B16.5 #150
or 3" Female NPT
Cast Iron 3" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-80 Pump Manual		View
	Yamada Pumps NDP-80 Pump Specifications		View
	NDP-80 Operation Manual		View
	NDP-80BFT Yamada Pump Repair Parts Exploded View		View
