• NDP-80BAU Yamada NDP-80 Series AODD Diaphragm Pump 852240-U

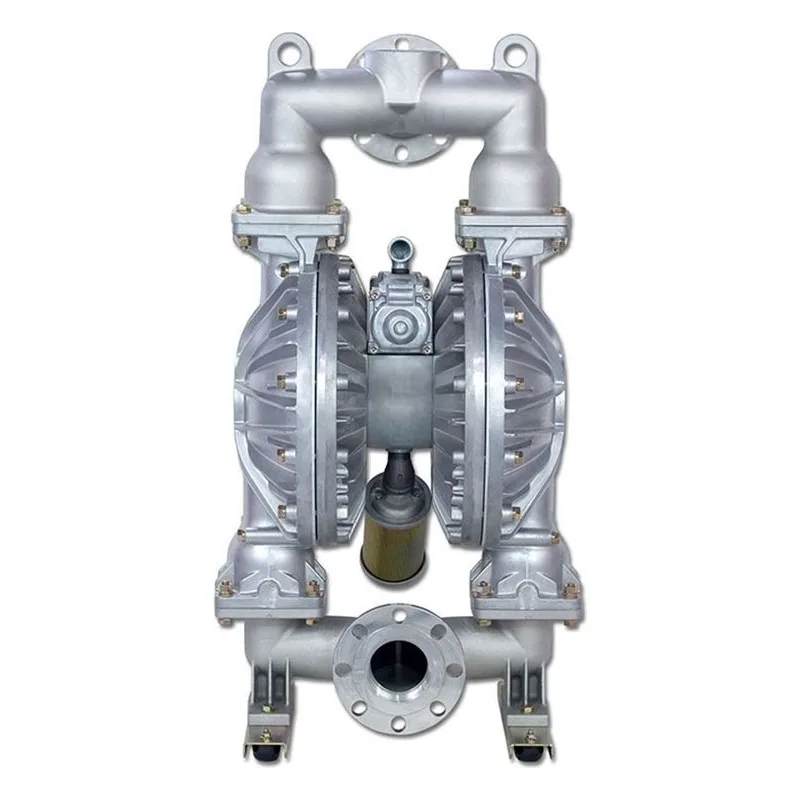

Image shown may not be actual product

Yamada

NDP-80BAU

0 reviews

Yamada NDP-80BAU NDP-80 Series Air Operated Double Diaphragm Pump, Model 852240-U. Aluminum Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 3" ANSI Flanged with tapped FNPT Inlet & Outlet, Repair Kit K80-MU Available.

$6,550.00

Item: NDP-80BAU | Model #: 852240-U

NDP-80BAU

Yamada NDP-80BAU NDP-80 Series Air Operated Double Diaphragm Pump, Model 852240-U. Aluminum Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 3" ANSI Flanged with tapped FNPT Inlet & Outlet, Repair Kit K80-MU Available.

Air Inlet3/4" FNPT
Air Supply Pressure20 - 100 PSI (1.4 - 7 kfg/cm)
DiaphragmUltimate PTFE/EPDM
Discharge NPT (Inches)3" ANSI Flange with tapped FNPT
Discharge Volume Per Cycle1.0 gallons (3.8 liters)
Fluid Port3"
MaterialAluminum
Maximum Flow (GPM)215
Max Suction Lift19'
Model Number852240-U
MotorAluminum
Solids (Inches)12/32" (10mm)
Suction NPT (Inches)3" ANSI Flanged with tapped FNPT
TypeBall Valve
Valve BallsUltimate PTFE/EPDM
Valve / Seat / O-RingPTFE

NDP-80 Series Information

Features & Benefits
Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3" ANSI B16.5 #150
Aluminum (ADC-12) 3" ANSI B16.5 #150
(with tapped 3" Female NPT)
Stainless Steel (316) 3" ANSI B16.5 #150
or 3" Female NPT
Cast Iron 3" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

TypeTitleLink

Yamada Pumps NDP-80 Pump Manual

View

Yamada Pumps NDP-80 Pump Specifications

View

NDP-80 Operation Manual

View

NDP-80BAU Ultimate Diaphragm Series Repair Parts

View

Repair Parts for NDP-80BAU

Productqty.shippingprice
580962

580962

Ships in 1-2 Weeks $398.00
714371

714371

Ships in 1-2 Weeks $454.00
714365

714365

Ships in 1-2 Weeks $454.00
803113

803113

Ships in 1-2 Weeks $976.00
711935

711935

Ships in 1-2 Weeks $337.00
711936

711936

Ships in 1-2 Weeks $267.00
772689

772689

Ships in 1-2 Weeks $46.00
711937

711937

Ships in 1-2 Weeks $8.00
771740

771740

Ships in 1-2 Weeks $8.00
832163

832163

Ships in 1-2 Weeks $23.00
640020

640020

Ships in 1-2 Weeks $5.00
685444

685444

Ships in 1-2 Weeks $10.00
640029

640029

Ships in 1-2 Weeks $5.00
771742

771742

Ships in 1-2 Weeks $28.00
683812

683812

Ships in 1-2 Weeks $5.00
802971

802971

Ships in 1-2 Weeks $454.00
711931

711931

Ships in 1-2 Weeks $289.00
580999

580999

Ships in 1-2 Weeks $28.00
581000

581000

Ships in 1-2 Weeks $28.00
771735

771735

Ships in 1-2 Weeks $9.00
712976

712976

Ships in 1-2 Weeks $21.00
771738

771738

Ships in 1-2 Weeks $9.00
685036

685036

Ships in 1-2 Weeks $8.00
805084

805084

Ships in 1-2 Weeks $194.00
803675

803675

Ships in 1-2 Weeks $61.00
640036

640036

Ships in 1-2 Weeks $5.00
805085

805085

Ships in 1-2 Weeks $60.00
771735

771735

Ships in 1-2 Weeks $9.00
711932

711932

Ships in 1-2 Weeks $12.00
771734

771734

Ships in 1-2 Weeks $6.00
640005

640005

Ships in 1-2 Weeks $5.00
684128

684128

Ships in 1-2 Weeks $5.00
771712

771712

Ships in 1-2 Weeks $21.00
684240

684240

Ships in 1-2 Weeks $8.00
684987

684987

Ships in 1-2 Weeks $5.00
717131 Call for Shipping
833231

833231

Ships in $1,651.00
712684 Call for Shipping
770694

770694

Ships in 1-2 Weeks $177.00
686974

686974

Ships in $46.00
682523

682523

Ships in 1-2 Weeks $8.00
711912

711912

Ships in 1-2 Weeks $60.00
771402

771402

Ships in 1-2 Weeks $6.00
682740

682740

Ships in 1-2 Weeks $5.00
686163

686163

Ships in 1-2 Weeks $5.00
631917

631917

Ships in 1-2 Weeks $5.00
631014

631014

Ships in 1-2 Weeks $5.00
631917

631917

Ships in 1-2 Weeks $5.00
611204

611204

Ships in 1-2 Weeks $5.00
631015

631015

Ships in 1-2 Weeks $5.00
631918

631918

Ships in 1-2 Weeks $5.00
627014

627014

Ships in 1-2 Weeks $5.00
611177

611177

Ships in 1-2 Weeks $5.00
627013

627013

Ships in 1-2 Weeks $5.00
611149

611149

Ships in 1-2 Weeks $5.00
682276

682276

Ships in 1-2 Weeks $5.00
643078

643078

Ships in 1-2 Weeks $19.00
686164

686164

Ships in 1-2 Weeks $9.00
631917

631917

Ships in 1-2 Weeks $5.00
804764

804764

Ships in 1-2 Weeks $95.00
643145

643145

Ships in 1-2 Weeks $19.00
K80-MU

K80-MU

Ships in $4,162.00
K80-AM

K80-AM

Ships in 1-2 Weeks $449.00
