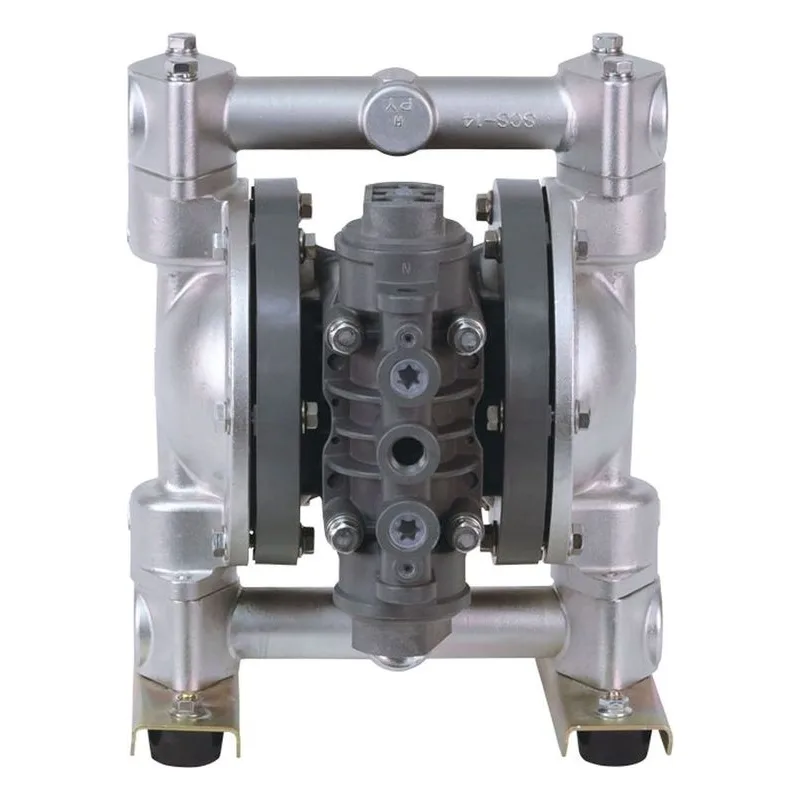

Image shown may not be actual product
NDP-20BSU-PP
Yamada America NDP-20BSU-PP NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 854077-U. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
NDP-20BSU-PP
Yamada America NDP-20BSU-PP NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 854077-U. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
| Air Exhaust | 3/8" Female NPT (includes silencer) |
| Air Inlet | 1/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | FNPT |
| Diaphragm | Ultimate (PTFE/EPDM) |
| Discharge NPT (Inches) | 3/4" |
| Discharge Volume Per Cycle | 0.143 Gallons |
| Fluid Port | 3/4" |
| Liquid Temperature | 212°F (100°C) |
| Material | 316 Stainless Steel |
| Max Cycles Per Minute | 195 |
| Maximum Flow (GPM) | 31.7 |
| Max Suction Lift | 18' |
| Model Number | 854077-U |
| Model Series | NDP-20 |
| Motor | Glass-Filled Polypropylene |
| Solids (Inches) | 1/16" (2mm) |
| Suction NPT (Inches) | 3/4" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
NDP-20 Series Information
| Features & Benefits |
|---|
| Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/4" Female NPT Aluminum (ADC-12) 3/4" Female NPT Stainless Steel (316) 3/4" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
Repair Parts for NDP-20BSU-PP
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 643036 | Ships in 1-2 Weeks | $13.00 | ||
 | 711701 | Ships in 1-2 Weeks | $53.00 | ||
 | 770736 | Ships in 1-2 Weeks | $17.00 | ||
 | 711705 | Ships in 1-2 Weeks | $25.00 | ||
 | 771131 | Ships in 1-2 Weeks | $10.00 | ||
 | 832549 | Ships in | $346.00 | ||
 | 772562 | Ships in | $63.00 | ||
 | 711693 | Ships in 1-2 Weeks | $299.00 | ||
 | 640151 | Ships in 1-2 Weeks | $8.00 | ||
| 686360 | Ships in | Call for pricing | ||
| 686358 | Ships in | Call for pricing | ||
 | 804603 | Ships in 1-2 Weeks | $409.00 | ||
| 772928 | Ships in 1-2 Weeks | $243.00 | ||
 | 780326 | Ships in | $32.00 | ||
 | 685414 | Ships in 1-2 Weeks | $11.00 | ||
 | 685276 | Ships in 1-2 Weeks | $7.00 | ||
 | 772932 | Ships in 1-2 Weeks | $17.00 | ||
 | 640009 | Ships in 1-2 Weeks | $7.00 | ||
 | 802360 | Ships in 1-2 Weeks | $25.00 | ||
 | 708666 | Ships in 1-2 Weeks | $8.00 | ||
 | 772948 | Ships in 1-2 Weeks | $7.00 | ||
| 686030 | Ships in 1-2 Weeks | $7.00 | ||
 | 640132 | Ships in 1-2 Weeks | $7.00 | ||
 | 772933 | Ships in 1-2 Weeks | $11.00 | ||
 | 714674 | Ships in | $188.00 | ||
 | 771054 | Ships in 1-2 Weeks | $7.00 | ||
 | 831270 | Ships in 1-2 Weeks | $365.00 | ||
 | 804608 | Ships in 1-2 Weeks | $385.00 | ||
 | 772991 | Ships in 1-2 Weeks | $11.00 | ||
 | 640002 | Ships in 1-2 Weeks | $7.00 | ||
 | 772946 | Ships in 1-2 Weeks | $13.00 | ||
 | 640043 | Ships in 1-2 Weeks | $7.00 | ||
 | 771241 | Ships in 1-2 Weeks | $8.00 | ||
 | 802400 | Ships in 1-2 Weeks | $195.00 | ||
 | 771053 | Ships in 1-2 Weeks | $11.00 | ||
 | 804609 | Ships in 1-2 Weeks | $195.00 | ||
 | 686029 | Ships in 1-2 Weeks | $7.00 | ||
 | 832903 | Ships in 1-2 Weeks | $102.00 | ||
 | 771914 | Ships in 1-2 Weeks | $11.00 | ||
 | 772947 | Ships in 1-2 Weeks | $14.00 | ||
| 686031 | Ships in 1-2 Weeks | $11.00 | ||
| 686968 | Ships in | $32.00 | ||
| 772848 | Ships in 1-2 Weeks | $11.00 | ||
 | 804697 | Ships in 1-2 Weeks | $107.00 | ||
| 611148 | Ships in 1-2 Weeks | $7.00 | ||
| 682276 | Ships in 1-2 Weeks | $7.00 | ||
 | 709157 | Ships in 1-2 Weeks | $10.00 | ||
 | 770551 | Ships in 1-2 Weeks | $8.00 | ||
 | 683635 | Ships in 1-2 Weeks | $7.00 | ||
 | 681300 | Ships in 1-2 Weeks | $7.00 | ||
 | 631329 | Ships in 1-2 Weeks | $7.00 | ||
| 686032 | Ships in 1-2 Weeks | $6.00 | ||
 | K20-MU-1 | Ships in | Call for pricing | ||
 | K225-AP | Ships in 1-2 Weeks | $311.00 | ||
