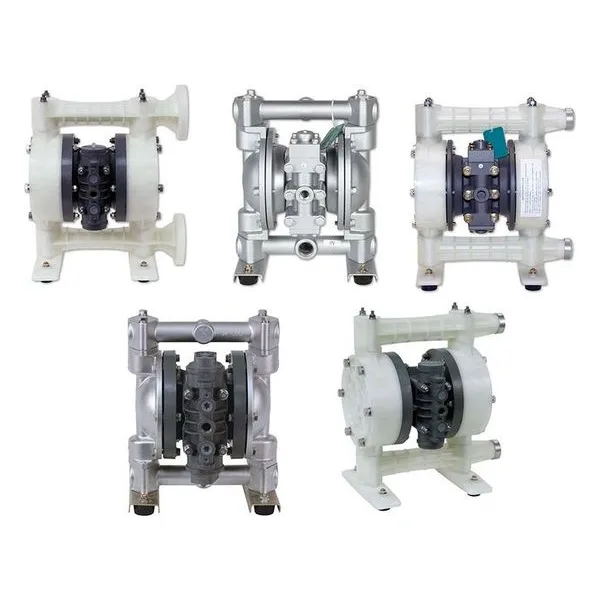

Yamada Pumps NDP-20 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 28 gallons per minute. Pumps are available in aluminum, stainless steel (316), and polypropylene construction, with a wide variety of diaphragm materials.
Search Results
(77 results)
Sort & Filter
2
NDP-20BPS-PP
Yamada
Yamada America NDP-20BPS-PP NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 854100. Polypropylene Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Glass-Filled Polypropylene Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BPT-PP
Yamada
Yamada America NDP-20BPT-PP NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 854098. Polypropylene Body, PTFE Diaphragm, Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BSE
Yamada
Yamada America NDP-20BSE NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 851521. 316 Stainless Steel Body, Nordel Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BPV-PP
Yamada
Yamada America NDP-20BPV-PP NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 854097. Polypropylene Body, Viton Diaphragm, Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BAN
Yamada
Yamada America NDP-20BAN NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 851515. Aluminum Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BAH
Yamada
Yamada America NDP-20BAH NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 852098. Aluminum Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BSV
Yamada
Yamada America NDP-20BSV NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 851522. 316 Stainless Steel Body, Viton Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BST
Yamada
Yamada America NDP-20BST NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 851523. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BAN-HP
Yamada
Yamada America NDP-20BAN-HP NDP-20 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 851515-HP. Aluminum Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 15.9 GPM Flow Rate, 180 PSI, Passes up to 1/16" (2mm) Solids.
NDP-20BPT
Yamada
Yamada America NDP-20BPT NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 851666. Polypropylene Body, PTFE Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BPS
Yamada
Yamada America NDP-20BPS NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 852695. Polypropylene Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Polypropylene Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
NDP-20BPC-PP
Yamada
Yamada America NDP-20BPC-PP NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 854094. Polypropylene Body, Neoprene Diaphragm, Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
