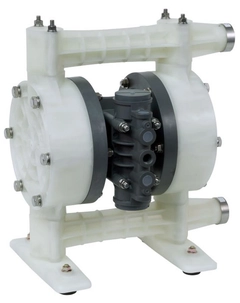

Yamada Pumps NDP-20BPC-PP Type, Model 854094 NDP-20 Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Polypropylene (PPG) - Non-Metallic Center Body Material, 31.7 GPM Max Flow, 3/4" NPT Fluid Port, 3/8" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Polypropylene Air Motor, 18 Feet Max Suction Lift.
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Yamada Pumps NDP-20BPC-PP Type, Model 854094 NDP-20 Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Polypropylene (PPG) - Non-Metallic Center Body Material, 31.7 GPM Max Flow, 3/4" NPT Fluid Port, 3/8" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Polypropylene Air Motor, 18 Feet Max Suction Lift.
Actual Weight | 24 |
Air Exhaust | 3/4" Female NPT (includes silencer) |
Air Inlet | 3/8" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | Neoprene |
Discharge Volume Per Cycle | 0.163 gallons (615 cc) |
Fluid Port | 3/4" NPT |
Liquid Temperature | 180°F (82°C) Max |
Material | Polypropylene (PPG) - Non-Metallic Center Body |
Max Cycles Per Minute | 195 |
Maximum Flow (GPM) | 31.7 GPM |
Max Suction Lift | 18 Feet |
Model Number | 854094 |
Model Series | NDP-20 Models |
Motor | Polypropylene Air Motor |
Solids (Inches) | 1/16" dia. (1.6 mm) |
Type | 854094 |
Valve / Seat / O-Ring | Neoprene |
Features & Benefits |
---|
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/4" Female NPT Aluminum (ADC-12) 3/4" Female NPT Stainless Steel (316) 3/4" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
