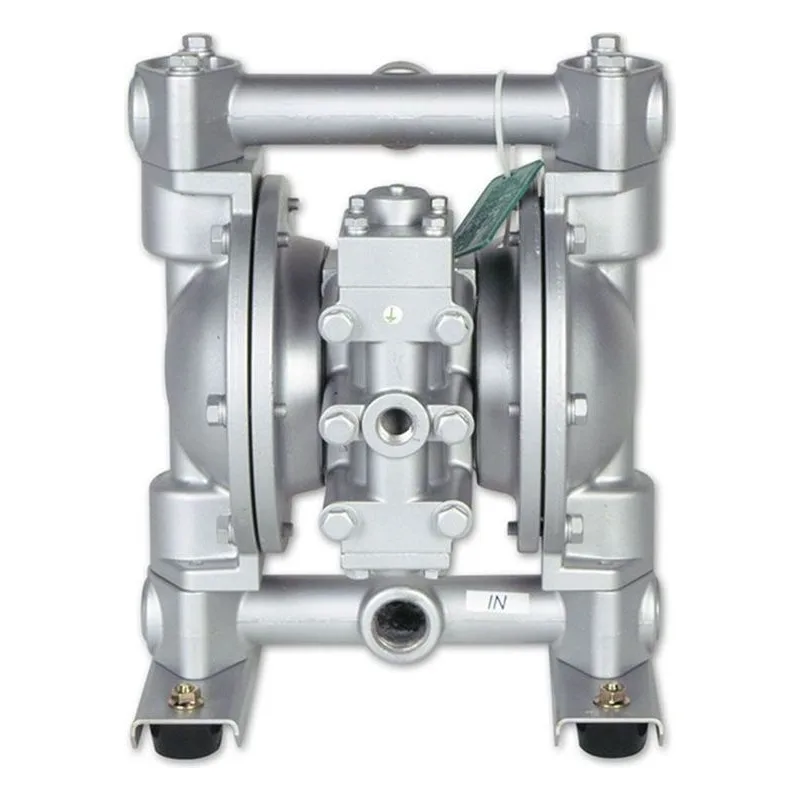

Image shown may not be actual product
NDP-20BAU
Yamada America NDP-20BAU NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 855227. Aluminum Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
$2,000.00
- Best Price Guarantee!
- 400PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
NDP-20BAU
Yamada America NDP-20BAU NDP-20 Series Air Operated Double Diaphragm Pump, Model Number 855227. Aluminum Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
| Air Exhaust | 3/8" Female NPT (includes silencer) |
| Air Inlet | 1/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | FNPT |
| Diaphragm | Ultimate (PTFE/EPDM) |
| Discharge NPT (Inches) | 3/4" |
| Discharge Volume Per Cycle | 0.143 Gallons |
| Fluid Port | 3/4" |
| Liquid Temperature | 212°F (100°C) |
| Material | Aluminum |
| Max Cycles Per Minute | 195 |
| Maximum Flow (GPM) | 31.7 |
| Max Suction Lift | 18' |
| Model Number | 855227 |
| Model Series | NDP-20 |
| Motor | Aluminum |
| Solids (Inches) | 1/16" (2mm) |
| Suction NPT (Inches) | 3/4" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
NDP-20 Series Information
| Features & Benefits |
|---|
| Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/4" Female NPT Aluminum (ADC-12) 3/4" Female NPT Stainless Steel (316) 3/4" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
Repair Parts for NDP-20BAU
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 643036 | Ships in 1-2 Weeks | $13.00 | ||
 | 711700 | Ships in 1-2 Weeks | $25.00 | ||
 | 770736 | Ships in 1-2 Weeks | $17.00 | ||
 | 590086 | Ships in 1-2 Weeks | $25.00 | ||
 | 771131 | Ships in 1-2 Weeks | $10.00 | ||
 | 832549 | Ships in | $346.00 | ||
 | 772562 | Ships in | $63.00 | ||
 | 711686 | Ships in 1-2 Weeks | $102.00 | ||
 | 640151 | Ships in 1-2 Weeks | $8.00 | ||
| 682264 | Ships in 1-2 Weeks | Call for pricing | ||
| 682724 | Ships in 1-2 Weeks | Call for pricing | ||
 | 804878 | Ships in 1-2 Weeks | $742.00 | ||
 | 715937 | Ships in 1-2 Weeks | $33.00 | ||
 | 802360 | Ships in 1-2 Weeks | $25.00 | ||
 | 771057 | Ships in 1-2 Weeks | $10.00 | ||
 | 640009 | Ships in 1-2 Weeks | $7.00 | ||
 | 771945 | Ships in 1-2 Weeks | $27.00 | ||
 | 708666 | Ships in 1-2 Weeks | $8.00 | ||
 | 709812 | Ships in 1-2 Weeks | $133.00 | ||
 | 685276 | Ships in 1-2 Weeks | $7.00 | ||
 | 772703 | Ships in 1-2 Weeks | $40.00 | ||
 | 685414 | Ships in 1-2 Weeks | $11.00 | ||
 | 682486 | Ships in 1-2 Weeks | $7.00 | ||
 | 714674 | Ships in | $188.00 | ||
 | 771054 | Ships in 1-2 Weeks | $7.00 | ||
 | 831280 | Ships in 1-2 Weeks | $95.00 | ||
 | 802362 | Ships in 1-2 Weeks | $385.00 | ||
 | 709161 | Ships in 1-2 Weeks | $10.00 | ||
 | 640005 | Ships in 1-2 Weeks | $7.00 | ||
 | 682704 | Ships in 1-2 Weeks | $7.00 | ||
 | 771241 | Ships in 1-2 Weeks | $8.00 | ||
 | 715961 | Ships in 1-2 Weeks | $11.00 | ||
 | 802400 | Ships in 1-2 Weeks | $195.00 | ||
 | 771053 | Ships in 1-2 Weeks | $11.00 | ||
 | 710221 | Ships in 1-2 Weeks | $25.00 | ||
 | 771240 | Ships in 1-2 Weeks | $10.00 | ||
 | 711639 | Ships in 1-2 Weeks | $102.00 | ||
 | 803931 | Ships in 1-2 Weeks | $224.00 | ||
 | 771080 | Ships in 1-2 Weeks | $7.00 | ||
 | 771914 | Ships in 1-2 Weeks | $11.00 | ||
 | 709305 | Ships in 1-2 Weeks | $25.00 | ||
| 682262 | Ships in 1-2 Weeks | $7.00 | ||
 | 682265 | Ships in 1-2 Weeks | $7.00 | ||
 | 686968 | Ships in | $32.00 | ||
 | 771056 | Ships in 1-2 Weeks | $10.00 | ||
 | 804697 | Ships in 1-2 Weeks | $107.00 | ||
| 611148 | Ships in 1-2 Weeks | $7.00 | ||
| 682276 | Ships in 1-2 Weeks | $7.00 | ||
 | 709157 | Ships in 1-2 Weeks | $10.00 | ||
 | 770551 | Ships in 1-2 Weeks | $8.00 | ||
 | 643013 | Ships in 1-2 Weeks | $8.00 | ||
 | K20-MU-1 | Ships in | Call for pricing | ||
 | K225-AM | Ships in 1-2 Weeks | $324.00 | ||
