NDP-20BAS-HP

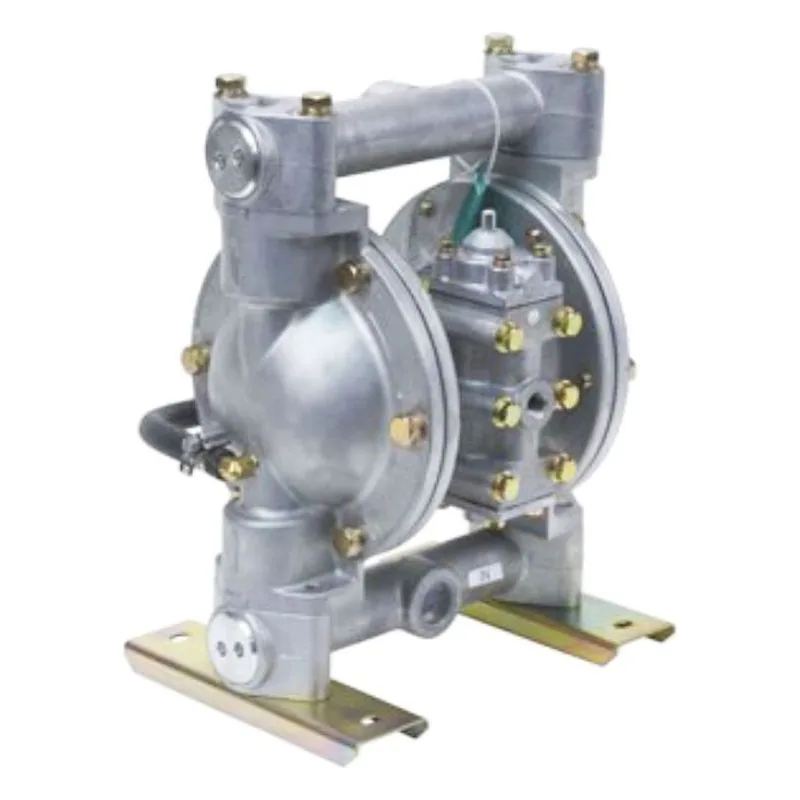

Image shown may not be actual product

NDP-20BAS-HP

0 reviews

Yamada America NDP-20BAS-HP NDP-20 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852693-HP. Aluminum Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 15.9 GPM Flow Rate, 180 PSI, Passes up to 1/16" (2mm) Solids.

$1,680.00

Best Price Guarantee!
336PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: NDP-20BAS-HP | Model #: 852693-HP

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-20BAS-HP

Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	180 PSI
Connection Type	FNPT
Diaphragm	Santoprene (TPO)
Discharge NPT (Inches)	3/4"
Discharge Volume Per Cycle	0.163 Gallons
Fluid Port	3/4"
Liquid Temperature	180°F (82°C)
Material	Aluminum
Max Cycles Per Minute	195
Maximum Flow (GPM)	15.9

Max Suction Lift	18'
Model Number	852693-HP
Model Series	NDP-20
Motor	Aluminum
Product Notes	2:1 High Pressure
Solids (Inches)	1/16" (2mm)
Suction NPT (Inches)	3/4"
Valve Balls	Santoprene (TPO)
Valve / Seat / O-Ring	EPDM O-Rings
Valve Type	Ball

NDP-20 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/4" Female NPT Aluminum (ADC-12) 3/4" Female NPT Stainless Steel (316) 3/4" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3/4" Female NPT
Aluminum (ADC-12) 3/4" Female NPT
Stainless Steel (316) 3/4" Female NPT
Air inlet (incl. ball valve): 3/8" Female NPT
Air exhaust (incl. silencer): 3/4" Female NPT
ANSI Flange also available—consult Yamada.

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

* The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-20 Pump Manual		View
	Yamada Pumps NDP-20 PP Pump Manual		View
	Yamada Pumps NDP-20 Pump Specifications		View
	NDP-20 Operation Manual		View
	NDP-20BAS-HP High Pressure 2:1 Diaphragm Series Repair Parts		View

Repair Parts for NDP-20BAS-HP

Product		shipping	price
	684118	Ships in 1-2 Weeks	$8.00	Select item
	711700	Ships in 1-2 Weeks	$25.00	Select item
	770723	Ships in 1-2 Weeks	$10.00	Select item
	590086	Ships in 1-2 Weeks	$25.00	Select item
	711705-HP	Ships in 1-2 Weeks	$175.00	Select item
	684117	Ships in 1-2 Weeks	$8.00	Select item
	771973	Ships in 1-2 Weeks	$50.00	Select item
	716258	Ships in 1-2 Weeks	$17.00	Select item
	716259	Ships in 1-2 Weeks	$11.00	Select item
	711695	Ships in 1-2 Weeks	$385.00	Select item
711695-HP			Call for Shipping
	682263	Ships in 1-2 Weeks	$10.00	Select item
	682730	Ships in 1-2 Weeks	$7.00	Select item
	640151	Ships in 1-2 Weeks	$8.00	Select item
	611159	Ships in	$7.00	Select item
	631916	Ships in 1-2 Weeks	$7.00	Select item
	611151	Ships in 1-2 Weeks	$7.00	Select item
	631916	Ships in 1-2 Weeks	$7.00	Select item
803247-HP			Call for Shipping
	715937	Ships in 1-2 Weeks	$33.00	Select item
715937-HP			Call for Shipping
	802360	Ships in 1-2 Weeks	$25.00	Select item
	771057	Ships in 1-2 Weeks	$10.00	Select item
	640009	Ships in 1-2 Weeks	$7.00	Select item
	771945	Ships in 1-2 Weeks	$27.00	Select item
	708666	Ships in 1-2 Weeks	$8.00	Select item
	709812	Ships in 1-2 Weeks	$133.00	Select item
	685276	Ships in 1-2 Weeks	$7.00	Select item
	772703	Ships in 1-2 Weeks	$40.00	Select item
	685414	Ships in 1-2 Weeks	$11.00	Select item
	682486	Ships in 1-2 Weeks	$7.00	Select item
	709163	Ships in 1-2 Weeks	$57.00	Select item
	771054	Ships in 1-2 Weeks	$7.00	Select item
	831322	Ships in 1-2 Weeks	$426.00	Select item
	802362	Ships in 1-2 Weeks	$385.00	Select item
	709161	Ships in 1-2 Weeks	$10.00	Select item
	640005	Ships in 1-2 Weeks	$7.00	Select item
	682704	Ships in 1-2 Weeks	$7.00	Select item
	771241	Ships in 1-2 Weeks	$8.00	Select item
	715961	Ships in 1-2 Weeks	$11.00	Select item
	802400	Ships in 1-2 Weeks	$195.00	Select item
	771053	Ships in 1-2 Weeks	$11.00	Select item
	710221	Ships in 1-2 Weeks	$25.00	Select item
	771240	Ships in 1-2 Weeks	$10.00	Select item
	711639	Ships in 1-2 Weeks	$102.00	Select item
	803931	Ships in 1-2 Weeks	$224.00	Select item
	771080	Ships in 1-2 Weeks	$7.00	Select item
	771914	Ships in 1-2 Weeks	$11.00	Select item
	709305	Ships in 1-2 Weeks	$25.00	Select item
	682262	Ships in 1-2 Weeks	$7.00	Select item
	682265	Ships in 1-2 Weeks	$7.00	Select item
	686968	Ships in	$32.00	Select item
	771056	Ships in 1-2 Weeks	$10.00	Select item
	804697	Ships in 1-2 Weeks	$107.00	Select item
	611148	Ships in 1-2 Weeks	$7.00	Select item
	682276	Ships in 1-2 Weeks	$7.00	Select item
	709156	Ships in 1-2 Weeks	$10.00	Select item
	770551	Ships in 1-2 Weeks	$8.00	Select item
	K225-AM	Ships in 1-2 Weeks	$324.00	Select item
