Image shown may not be actual product

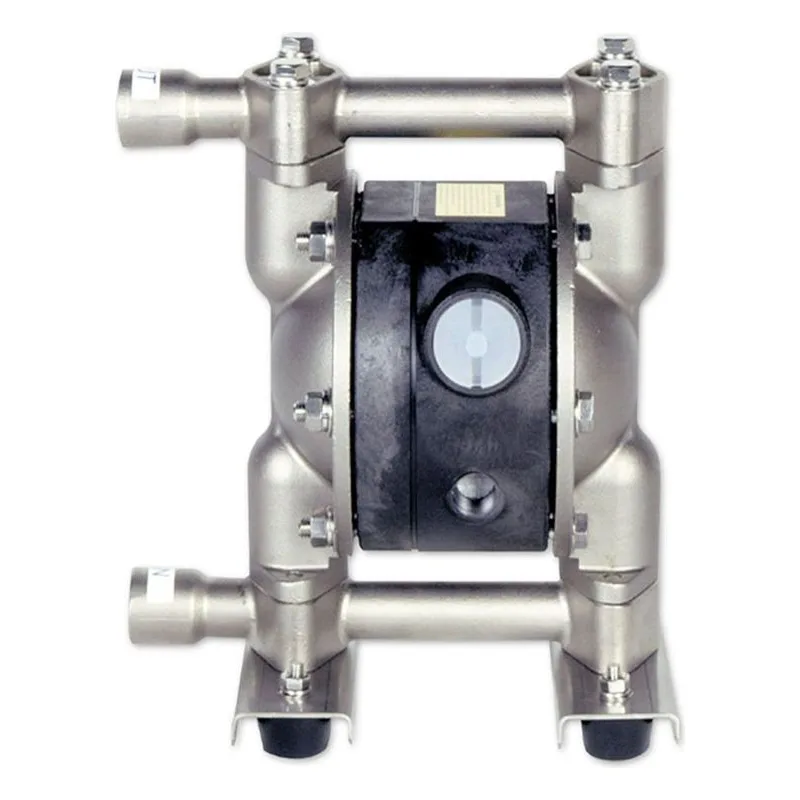

Yamada NDP-15BSU NDP-15 Series Air Operated Double Diaphragm Pump, Model 851961-U. Stainless Steel Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 1/2" FNPT Inlet & Outlet, Repair Kit K15-MU Available.
Yamada NDP-15BSU NDP-15 Series Air Operated Double Diaphragm Pump, Model 851961-U. Stainless Steel Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 1/2" FNPT Inlet & Outlet, Repair Kit K15-MU Available.
Air Inlet | 1/4" FNPT |
Air Supply Pressure | 20 - 100 PSI (1.4 - 7 kfg/cm) |
Diaphragm | Ultimate PTFE/EPDM |
Discharge NPT (Inches) | 1/2" FNPT |
Discharge Volume Per Cycle | 0.0338 gallons (128 cc) |
Fluid Port | 1/2" |
Material | Stainless Steel |
Maximum Flow (GPM) | 13.5 |
Max Suction Lift | 5' |
Model Number | 851961-U |
Motor | Aluminum |
Solids (Inches) | 1/32" (1mm) |
Suction NPT (Inches) | 1/2" FNPT |
Type | Ball Valve |
Valve Balls | Ultimate PTFE/EPDM |
Valve / Seat / O-Ring | PTFE |
Features & Benefits |
---|
Port Dimensions Intake & discharge connection: Polypropylene (PPG) ■ 1/2" Female NPT Kynar® (PVDF)◆ 1/2" Female NPT Groundable Acetal ◆ 1/2" Female NPT Aluminum (ADC-12) ▲ 1/2" Female NPT Stainless Steel (316) ▲ 1/2" Female NPT Air inlet (includes ball valve): 1/4" Female NPT Air exhaust (internal silencer): 3/8" Female NPT ■ Polypropylene pumps may be fitted with ball or flat check valves. Ball-type check valves are recommended for flooded suction applications. Flat-type check valves are recommended for suction lift applications. ◆ Kynar® and Groundable Acetal pumps are fitted with flat check valves only. ▲ Aluminum and Stainless Steel pumps are fitted with ball check valves only. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Aerospace
623 productsAutomotive
623 productsChemical Delivery / Transfer
623 productsGas & Petroleum
623 productsMining
623 productsPaints & Dyes
644 productsPrinting & Ink
644 productsStone / Clay / Glass
623 productsWashing / Cleaning Systems
644 productsWater Treatment
623 productsProduct | qty. | shipping | price | ||
---|---|---|---|---|---|
683224 | Ships in 1-2 Weeks | $21.00 | |||
631329 | Ships in 1-2 Weeks | $5.00 | |||
681300 | Ships in 1-2 Weeks | $5.00 | |||
628012 | Ships in 1-2 Weeks | $5.00 | |||
643025 | Ships in 1-2 Weeks | $6.00 | |||
711502 | Ships in 1-2 Weeks | $60.00 | |||
771524 | Ships in 1-2 Weeks | $14.00 | |||
711382 | Ships in 1-2 Weeks | $60.00 | |||
711380 | Ships in 1-2 Weeks | $696.00 | |||
711506 | Ships in 1-2 Weeks | $305.00 | |||
686826 | Ships in | $21.00 | |||
621102 | Ships in 1-2 Weeks | $5.00 | |||
717185 | Ships in | $40.00 | |||
643130 | Ships in 1-2 Weeks | $11.00 | |||
02-1160 | Ships in | Call for pricing | |||
640144 | Ships in 1-2 Weeks | $5.00 | |||
640020 | Ships in 1-2 Weeks | $5.00 | |||
684284 | Ships in 1-2 Weeks | $8.00 | |||
771337 | Ships in 1-2 Weeks | $9.00 | |||
021161 | Call for Shipping | ||||
771336 | Ships in 1-2 Weeks | $21.00 | |||
643005 | Ships in 1-2 Weeks | $6.00 | |||
681849 | Ships in 1-2 Weeks | $12.00 | |||
684916 | Ships in 1-2 Weeks | $5.00 | |||
780029 | Ships in 1-2 Weeks | $379.00 | |||
771347 | Ships in 1-2 Weeks | $12.00 | |||
780030 | Ships in 1-2 Weeks | $194.00 | |||
771342 | Ships in 1-2 Weeks | $6.00 | |||
20109-YAM | Ships in | $8.00 | |||
771483 | Ships in 1-2 Weeks | $6.00 | |||
804249 | Ships in 1-2 Weeks | $82.00 | |||
683123 | Ships in 1-2 Weeks | $6.00 | |||
802835 | Ships in 1-2 Weeks | $289.00 | |||
771484 | Ships in 1-2 Weeks | $9.00 | |||
771695 | Ships in 1-2 Weeks | $60.00 | |||
640022 | Ships in 1-2 Weeks | $5.00 | |||
771350 | Ships in 1-2 Weeks | $12.00 | |||
640002 | Ships in 1-2 Weeks | $5.00 | |||
771589 | Ships in 1-2 Weeks | $18.00 | |||
771465 | Ships in 1-2 Weeks | $13.00 | |||
832141 | Ships in 1-2 Weeks | $28.00 | |||
710577 | Ships in 1-2 Weeks | $6.00 | |||
632752 | Ships in 1-2 Weeks | $5.00 | |||
621155 | Ships in 1-2 Weeks | $5.00 | |||
771123 | Ships in 1-2 Weeks | $6.00 | |||
631328 | Ships in 1-2 Weeks | $5.00 | |||
681855 | Ships in 1-2 Weeks | $5.00 | |||
628010 | Ships in 1-2 Weeks | $5.00 | |||
K15-MU | Ships in | $426.00 | |||
K15-AM | Ships in 1-2 Weeks | $168.00 |
