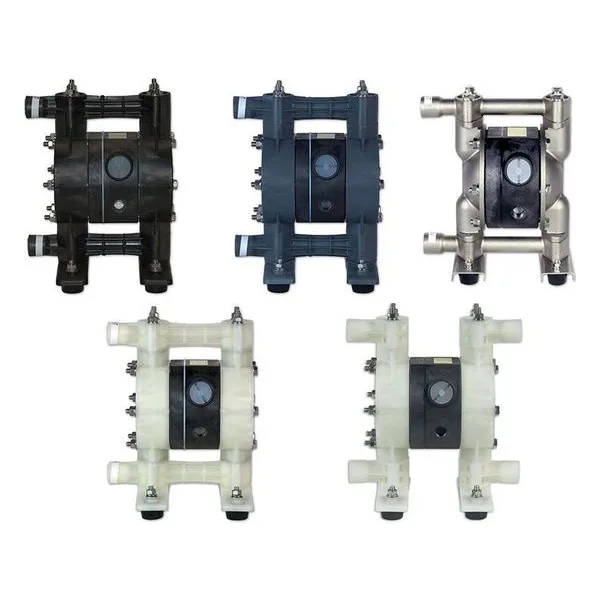

Yamada Pumps NDP-15 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 13.5 gallons per minute. Pumps are available in aluminum, stainless steel (316), Kynar (PVDF), groundable acetal, and polypropylene construction, with a wide variety of diaphragm materials.
Search Results
(31 results)
Sort & Filter
2
NDP-15BST
Yamada
Yamada America NDP-15BST NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 851961. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15FPS
Yamada
Yamada America NDP-15FPS NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 852688. Polypropylene Body, Santoprene Diaphragm, PTFE Flat Valve, EPDM O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15BPT
Yamada
Yamada America NDP-15BPT NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 852349. Polypropylene Body, PTFE Diaphragm, Balls & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15FVT
Yamada
Yamada America NDP-15FVT NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 852103. Kynar Body, PTFE Diaphragm, Flat Valve & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15FPT
Yamada
Yamada America NDP-15FPT NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 851699. Polypropylene Body, PTFE Diaphragm, Flat Valve & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15BPS
Yamada
Yamada America NDP-15BPS NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 852687. Polypropylene Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15BAH
Yamada
Yamada America NDP-15BAH NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 851952. Aluminum Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15BPC
Yamada
Yamada America NDP-15BPC NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 852348. Polypropylene Body, Neoprene Diaphragm, Balls & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15BAT
Yamada
Yamada America NDP-15BAT NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 851949. Aluminum Body, PTFE Diaphragm, Balls & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15FPC
Yamada
Yamada America NDP-15FPC NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 851904. Polypropylene Body, Neoprene Diaphragm, PTFE Flat Valve, Neoprene O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15FPH
Yamada
Yamada America NDP-15FPH NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 851906. Polypropylene Body, Hytrel Diaphragm, PTFE Flat Valve & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
NDP-15FPN
Yamada
Yamada America NDP-15FPN NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 851944. Polypropylene Body, Buna-N Diaphragm & O-Rings, PTFE Flat Valve, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
