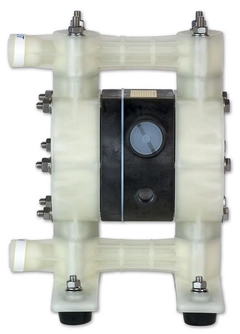

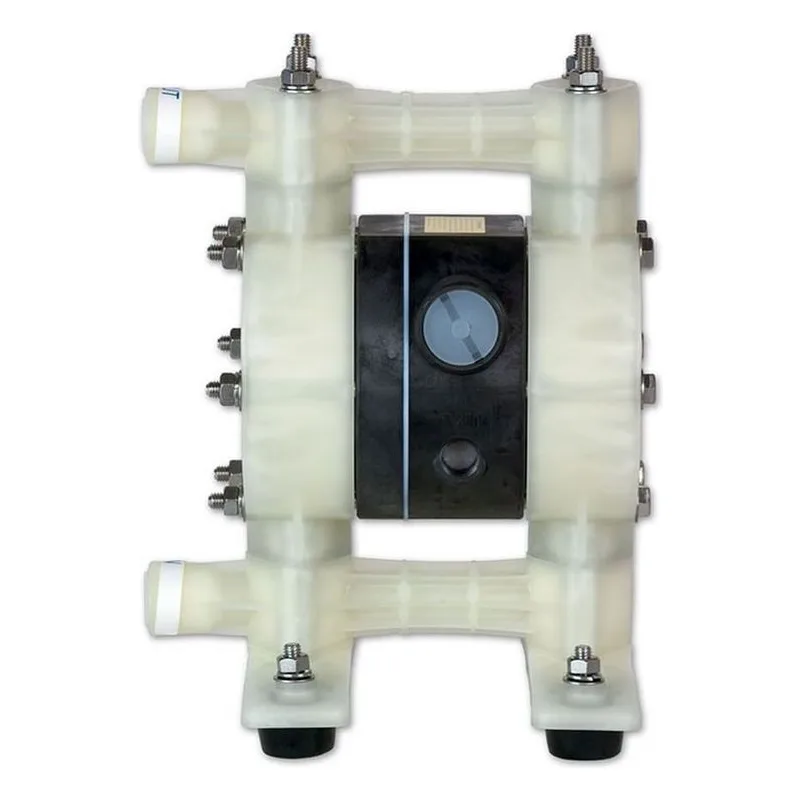

Image shown may not be actual product
Yamada Pumps NDP-15BPC Type, Model 852348 NDP-15 Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Polypropylene Ball Valve (PPG) Material, 13.5 GPM Max Flow, 1/2" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift
Yamada Pumps NDP-15BPC Type, Model 852348 NDP-15 Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Polypropylene Ball Valve (PPG) Material, 13.5 GPM Max Flow, 1/2" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift
Actual Weight | 12 |
Air Exhaust | 3/8" Female NPT (includes silencer) |
Air Inlet | 1/4" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | Neoprene |
Discharge Volume Per Cycle | 0.034 gallons (128 cc) |
Fluid Port | 1/2" NPT |
Liquid Temperature | 180°F (82°C) Max |
Material | Polypropylene Ball Valve (PPG) |
Max Cycles Per Minute | 400 |
Maximum Flow (GPM) | 13.5 GPM |
Max Suction Lift | 5 Feet |
Model Number | 852348 |
Model Series | NDP-15 Models |
Motor | Ryton Air Motor |
Solids (Inches) | 1/32" (1 mm) |
Type | 852348 |
Valve / Seat / O-Ring | Neoprene |
Features & Benefits |
---|
Port Dimensions Intake & discharge connection: Polypropylene (PPG) ■ 1/2" Female NPT Kynar® (PVDF)◆ 1/2" Female NPT Groundable Acetal ◆ 1/2" Female NPT Aluminum (ADC-12) ▲ 1/2" Female NPT Stainless Steel (316) ▲ 1/2" Female NPT Air inlet (includes ball valve): 1/4" Female NPT Air exhaust (internal silencer): 3/8" Female NPT ■ Polypropylene pumps may be fitted with ball or flat check valves. Ball-type check valves are recommended for flooded suction applications. Flat-type check valves are recommended for suction lift applications. ◆ Kynar® and Groundable Acetal pumps are fitted with flat check valves only. ▲ Aluminum and Stainless Steel pumps are fitted with ball check valves only. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
