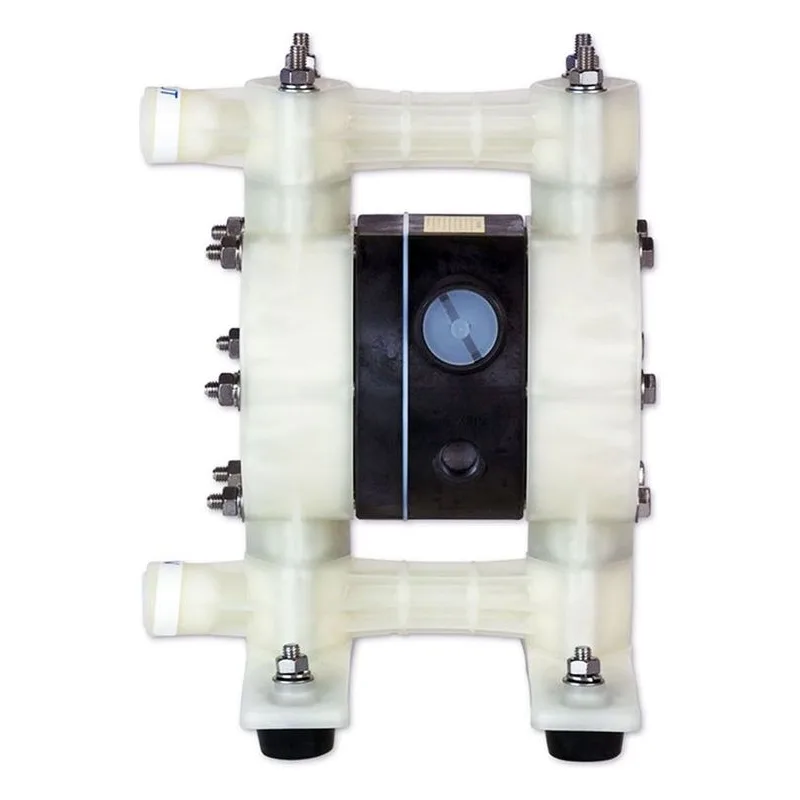

Yamada 852349-U NDP-15 Series AODD Diaphragm Pump, NDP-15BPU

NDP-15 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) ■ 1/2" Female NPT Kynar® (PVDF)◆ 1/2" Female NPT Groundable Acetal ◆ 1/2" Female NPT Aluminum (ADC-12) ▲ 1/2" Female NPT Stainless Steel (316) ▲ 1/2" Female NPT Air inlet (includes ball valve): 1/4" Female NPT Air exhaust (internal silencer): 3/8" Female NPT ■ Polypropylene pumps may be fitted with ball or flat check valves. Ball-type check valves are recommended for flooded suction applications. Flat-type check valves are recommended for suction lift applications. ◆ Kynar® and Groundable Acetal pumps are fitted with flat check valves only. ▲ Aluminum and Stainless Steel pumps are fitted with ball check valves only. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) ■ 1/2" Female NPT
Kynar® (PVDF)◆ 1/2" Female NPT
Groundable Acetal ◆ 1/2" Female NPT
Aluminum (ADC-12) ▲ 1/2" Female NPT
Stainless Steel (316) ▲ 1/2" Female NPT
Air inlet (includes ball valve): 1/4" Female NPT
Air exhaust (internal silencer): 3/8" Female NPT

■ Polypropylene pumps may be fitted with ball or flat check valves. Ball-type check valves are recommended for flooded suction applications. Flat-type check valves are recommended for suction lift applications.
◆ Kynar® and Groundable Acetal pumps are fitted with flat check valves only.
▲ Aluminum and Stainless Steel pumps are fitted with ball check valves only.

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Air Inlet	1/4" FNPT
Air Supply Pressure	20 - 100 PSI (1.4 - 7 kfg/cm)
Diaphragm	Ultimate PTFE/EPDM
Discharge NPT (Inches)	1/2" FNPT
Discharge Volume Per Cycle	0.0338 gallons (128 cc)
Fluid Port	1/2"
Material	Polypropylene
Maximum Flow (GPM)	13.5
Max Suction Lift	5'

Model Number	852349-U
Motor	Aluminum
Solids (Inches)	1/32" (1mm)
Suction NPT (Inches)	1/2" FNPT
Type	Ball Valve
Valve Balls	Ultimate PTFE/EPDM
Valve / Seat / O-Ring	PTFE

Type	Title		Link
	Yamada Pumps NDP-15 Pump Manual		View
	Yamada Pumps NDP-15 Pump PPG CAD Drawing		View
	Yamada Pumps NDP-15 Pump SS CAD Drawing		View
	Yamada Pumps NDP-15 Pump Specifications		View
	Yamada Pumps NDP-15 Pump Aluminum CAD Drawing		View
	NDP-15BPU Ultimate Diaphragm Series Repair Parts		View

Product		shipping	price
	684310	Ships in 1-2 Weeks	$13.00	Select item
	631329	Ships in 1-2 Weeks	$5.00	Select item
	681300	Ships in 1-2 Weeks	$5.00	Select item
	628012	Ships in 1-2 Weeks	$5.00	Select item
	643027	Ships in 1-2 Weeks	$6.00	Select item
	771806	Ships in 1-2 Weeks	$21.00	Select item
	771524	Ships in 1-2 Weeks	$14.00	Select item
	780162	Ships in 1-2 Weeks	$18.00	Select item
	780119	Ships in 1-2 Weeks	$194.00	Select item
	780027	Ships in 1-2 Weeks	$100.00	Select item
	686826	Ships in	$21.00	Select item
	621153	Ships in 1-2 Weeks	$5.00	Select item
	771352	Ships in 1-2 Weeks	$28.00	Select item
	02-1160	Ships in	Call for pricing
	640144	Ships in 1-2 Weeks	$5.00	Select item
	640020	Ships in 1-2 Weeks	$5.00	Select item
	684284	Ships in 1-2 Weeks	$8.00	Select item
	771337	Ships in 1-2 Weeks	$9.00	Select item
021161			Call for Shipping
	771336	Ships in 1-2 Weeks	$21.00	Select item
	780029	Ships in 1-2 Weeks	$379.00	Select item
	771347	Ships in 1-2 Weeks	$12.00	Select item
	780030	Ships in 1-2 Weeks	$194.00	Select item
	771342	Ships in 1-2 Weeks	$6.00	Select item
020109			Call for Shipping
	771483	Ships in 1-2 Weeks	$6.00	Select item
	804249	Ships in 1-2 Weeks	$82.00	Select item
	683123	Ships in 1-2 Weeks	$6.00	Select item
	802835	Ships in 1-2 Weeks	$289.00	Select item
	771484	Ships in 1-2 Weeks	$9.00	Select item
	771695	Ships in 1-2 Weeks	$60.00	Select item
	640022	Ships in 1-2 Weeks	$5.00	Select item
	771350	Ships in 1-2 Weeks	$12.00	Select item
	640002	Ships in 1-2 Weeks	$5.00	Select item
	771589	Ships in 1-2 Weeks	$18.00	Select item
	771465	Ships in 1-2 Weeks	$13.00	Select item
	832141	Ships in 1-2 Weeks	$28.00	Select item
	710577	Ships in 1-2 Weeks	$6.00	Select item
	632752	Ships in 1-2 Weeks	$5.00	Select item
	770551	Ships in 1-2 Weeks	$6.00	Select item
	K15-PU-B	Ships in	$406.00	Select item
	K15-AM	Ships in 1-2 Weeks	$168.00	Select item
