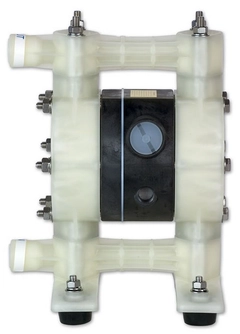

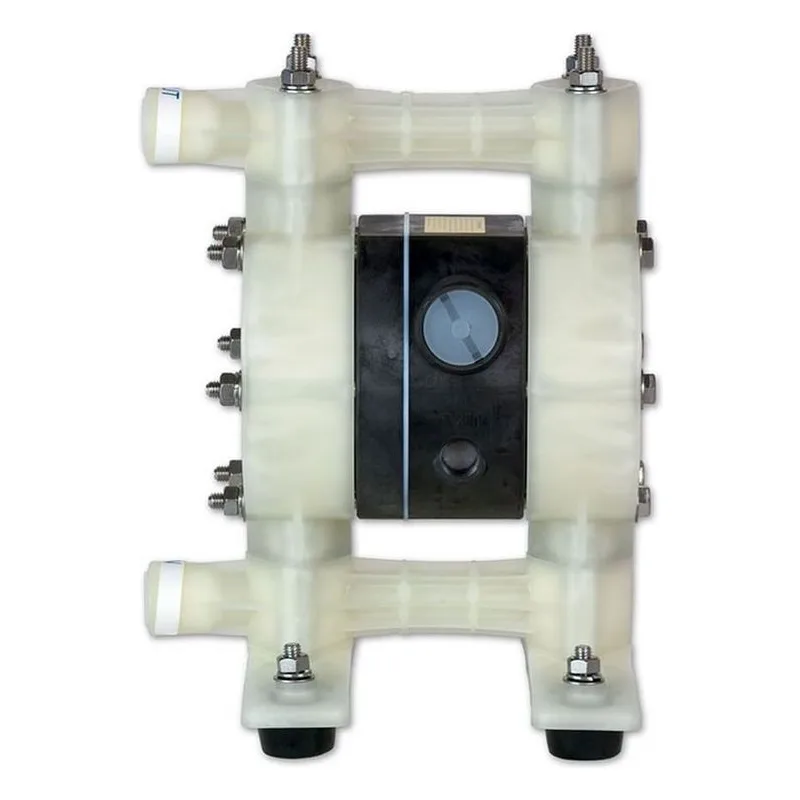

Yamada America NDP-15BPN NDP-15 Series Air Operated Double Diaphragm Pump, Model Number 852814. Polypropylene Body, Buna-N Diaphragm, Balls & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$650.00

Best Price Guarantee!
130PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: NDP-15BPN | Model #: 852814

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-15BPN

Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	FNPT
Diaphragm	Buna-N
Discharge NPT (Inches)	1/2"
Discharge Volume Per Cycle	0.0338 Gallons
Fluid Port	1/2"
Liquid Temperature	180°F (82°C)
Material	Polypropylene
Max Cycles Per Minute	400

Maximum Flow (GPM)	13.5
Max Suction Lift	5'
Model Number	852814
Model Series	NDP-15
Motor	Ryton
Solids (Inches)	1/32" (1mm)
Suction NPT (Inches)	1/2"
Valve Balls	Buna-N
Valve / Seat / O-Ring	Buna-N O-Rings
Valve Type	Ball
