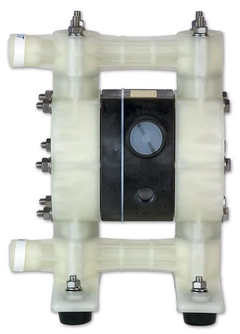

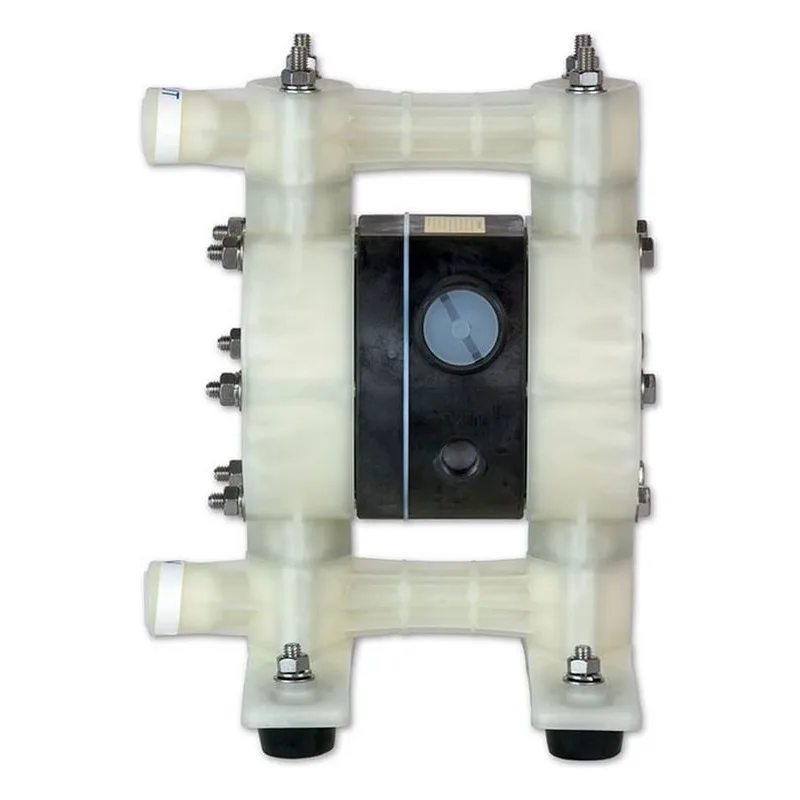

Yamada Pumps NDP-15BPH Type, Model 852350 NDP-15 Series, Air Operated Double Diaphragm Pump, Hytrel Diaphragm, Hytrel / Buna-N Flat Check Valve / O-Rings, Polypropylene Ball Valve (PPG) Material, 13.5 GPM Max Flow, 1/2" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift

$452.00

Best Price Guarantee!
90PumpPoints

Item: NDP-15BPH | Model #: 852350

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-15BPH

Actual Weight	12
Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm	Hytrel
Discharge Volume Per Cycle	0.034 gallons (128 cc)
Fluid Port	1/2" NPT
Liquid Temperature	180°F (82°C) Max
Material	Polypropylene Ball Valve (PPG)
Max Cycles Per Minute	400

Maximum Flow (GPM)	13.5 GPM
Max Suction Lift	5 Feet
Model Number	852350
Model Series	NDP-15 Models
Motor	Ryton Air Motor
Solids (Inches)	1/32" (1 mm)
Type	852350
Valve / Seat / O-Ring	Hytrel / Buna-N
