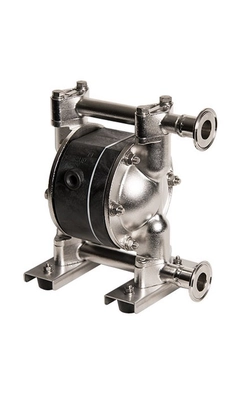

Image shown may not be actual product

NDP-15BSH-FDA

0 reviews

Yamada America NDP-15BSH-FDA NDP-15 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851964-FDA. 316 Stainless Steel Body, Hytrel Diaphragm, PTFE Balls & O-Rings, Polypropylene Air Motor. 1/2" Tri-Clamp Inlet & Outlet, 1" Sanitary Clamp, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$2,610.00

Best Price Guarantee!
522PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: NDP-15BSH-FDA | Model #: 851964-FDA

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-15BSH-FDA

Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	Tri-Clamp
Diaphragm	Hytrel (TPE)
Discharge NPT (Inches)	1/2"
Discharge Volume Per Cycle	0.0338 Gallons
Fluid Port	1/2"
Liquid Temperature	248°F (120°C)
Material	316 Stainless Steel
Max Cycles Per Minute	400
Maximum Flow (GPM)	13.5

Max Suction Lift	5'
Model Number	851964-FDA
Model Series	NDP-15
Motor	Polypropylene
Product Notes	FDA Compliant
Sanitary Clamp Size	1"
Solids (Inches)	1/32" (1mm)
Suction NPT (Inches)	1/2"
Valve Balls	PTFE
Valve / Seat / O-Ring	PTFE O-Rings
Valve Type	Ball

FDA Series Information

Features & Benefits
Key features of Yamada® FDA series pumps: • self-priming, lube-free air valve • intrinsically safe and portable • no mechanical seals • ability to run dry without pump damage Available in eight sizes from 3/4" to 4" ports with flow ranges from 1–215 gallons per minute. Sanitary Fitting / Flow Rate / Maximum Size Solid NDP-5-FDA 3/4" 3.1 GPM N/A DP-10-FDA 3/4" 6.0 GPM <1/32" NDP-15-FDA 1" 13.5 GPM <1/32" NDP-20-FDA 1" 31.7 GPM <1/16" NDP-25-FDA 1-1/2" 46.2 GPM <3/16" NDP-40-FDA 2" 107 GPM <9/32" NDP-50-FDA 2-1/2" 164 GPM <5/16" NDP-80-FDA 4" 215 GPM <13/32" FDA Compliant Elastomers Diaphragm Material Temperature EPDM* 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) * EDPM available only for NDP-20 and larger pumps.

Features & Benefits

Key features of Yamada® FDA series pumps:
• self-priming, lube-free air valve
• intrinsically safe and portable
• no mechanical seals
• ability to run dry without pump damage

Available in eight sizes from 3/4" to 4" ports with flow ranges from 1–215 gallons per minute.

Sanitary Fitting / Flow Rate / Maximum Size Solid
NDP-5-FDA 3/4" 3.1 GPM N/A
DP-10-FDA 3/4" 6.0 GPM <1/32"
NDP-15-FDA 1" 13.5 GPM <1/32"
NDP-20-FDA 1" 31.7 GPM <1/16"
NDP-25-FDA 1-1/2" 46.2 GPM <3/16"
NDP-40-FDA 2" 107 GPM <9/32"
NDP-50-FDA 2-1/2" 164 GPM <5/16"
NDP-80-FDA 4" 215 GPM <13/32"
FDA Compliant Elastomers
Diaphragm Material Temperature
EPDM* 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)

* EDPM available only for NDP-20 and larger pumps.
