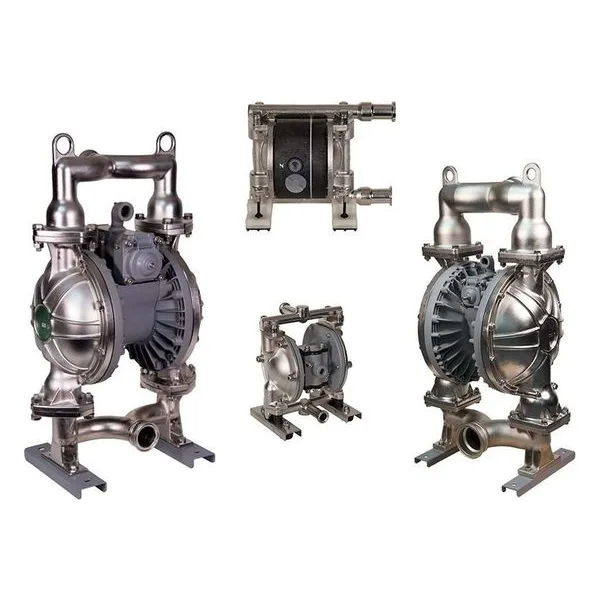

Yamada FDA compliant pumps are specifically designed for Food, Pharmaceutical & Cosmetic industries where 3A or USDA standards are not required.
Designed for Food, Pharmaceutical & Cosmetic Industries
Pumps include 316 Stainless Steel wetted components with Passivated Satin Finish, PTFE-Coated Air Motor*, Sanitary Clamp Fittings, and FDA compliant elastomers: Hytrel, EPDM and PTFE.
Yamada America DP-10BST-FDA DP-10 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851840-FDA. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Grey PTFE Coated Air Motor. 3/8" Tri-Clamp Inlet & Outlet, 3/4" Sanitary Clamp, 6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America NDP-20BSE-FDA NDP-20 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851521-FDA. 316 Stainless Steel Body, Nordel Diaphragm, PTFE Balls & O-Rings, Polypropylene Air Motor. 3/4" Tri-Clamp Inlet & Outlet, 1" Sanitary Clamp, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.

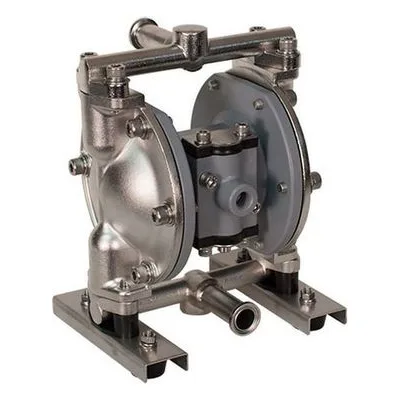

Yamada America DP-10BSU-FDA DP-10 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851840-U-FDA. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Grey PTFE Coated Air Motor. 3/8" Tri-Clamp Inlet & Outlet, 3/4" Sanitary Clamp, 6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

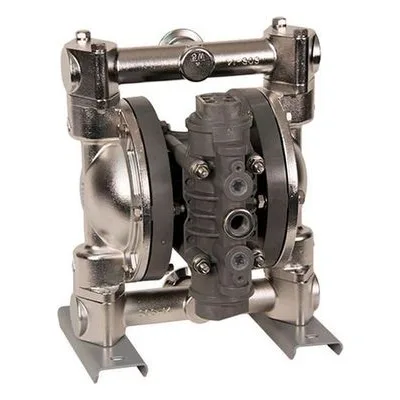

Yamada America NDP-20BSU-FDA NDP-20 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 855228-FDA. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Polypropylene Air Motor. 3/4" Tri-Clamp Inlet & Outlet, 1" Sanitary Clamp, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.

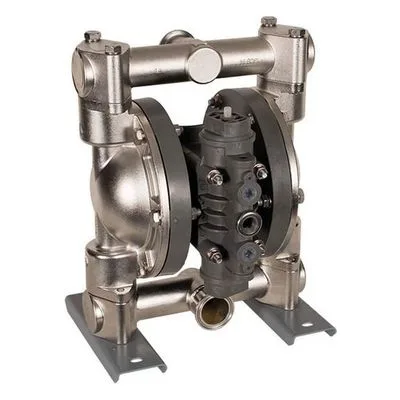

Yamada America NDP-25BSU-FDA NDP-25 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 855230-FDA. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Polypropylene Air Motor. 1" Tri-Clamp Inlet & Outlet, 1-1/2" Sanitary Clamp, 46.2 GPM Flow Rate, Passes up to 3/16" (4.8mm) Solids.

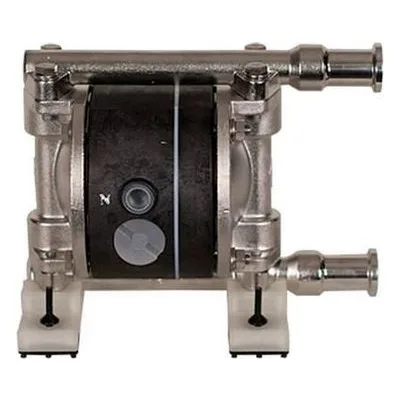

Yamada America NDP-5FST-FDA NDP-5 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851565-FDA. 316 Stainless Steel Body, PTFE Diaphragm, Flat Valve & O-Rings, Polypropylene Air Motor. 1/4" Tri-Clamp Inlet & Outlet, 3/4" Sanitary Clamp, 3.4 GPM Flow Rate.
Yamada America DP-10BSH-FDA DP-10 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851848-FDA. 316 Stainless Steel Body, Hytrel Diaphragm, PTFE Balls & O-Rings, Grey PTFE Coated Air Motor. 3/8" Tri-Clamp Inlet & Outlet, 3/4" Sanitary Clamp, 6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America NDP-15BSH-FDA NDP-15 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851964-FDA. 316 Stainless Steel Body, Hytrel Diaphragm, PTFE Balls & O-Rings, Polypropylene Air Motor. 1/2" Tri-Clamp Inlet & Outlet, 1" Sanitary Clamp, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America NDP-15BST-FDA NDP-15 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851961-FDA. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 1/2" Tri-Clamp Inlet & Outlet, 1" Sanitary Clamp, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America NDP-20BSH-FDA NDP-20 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 852099-FDA. 316 Stainless Steel Body, Hytrel Diaphragm, PTFE Balls & O-Rings, Polypropylene Air Motor. 3/4" Tri-Clamp Inlet & Outlet, 1" Sanitary Clamp, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
Yamada America NDP-20BST-FDA NDP-20 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851523-FDA. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 3/4" Tri-Clamp Inlet & Outlet, 1" Sanitary Clamp, 31.7 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
Yamada America NDP-25BSE-FDA NDP-25 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 851539-FDA. 316 Stainless Steel Body, Nordel Diaphragm, PTFE Balls & O-Rings, Polypropylene Air Motor. 1" Tri-Clamp Inlet & Outlet, 1-1/2" Sanitary Clamp, 46.2 GPM Flow Rate, Passes up to 3/16" (4.8mm) Solids.
