Image shown may not be actual product
852645-U-FDA

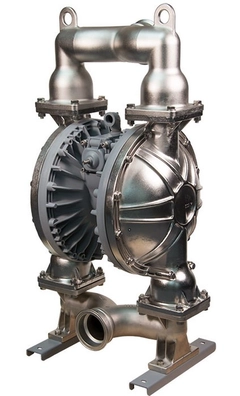

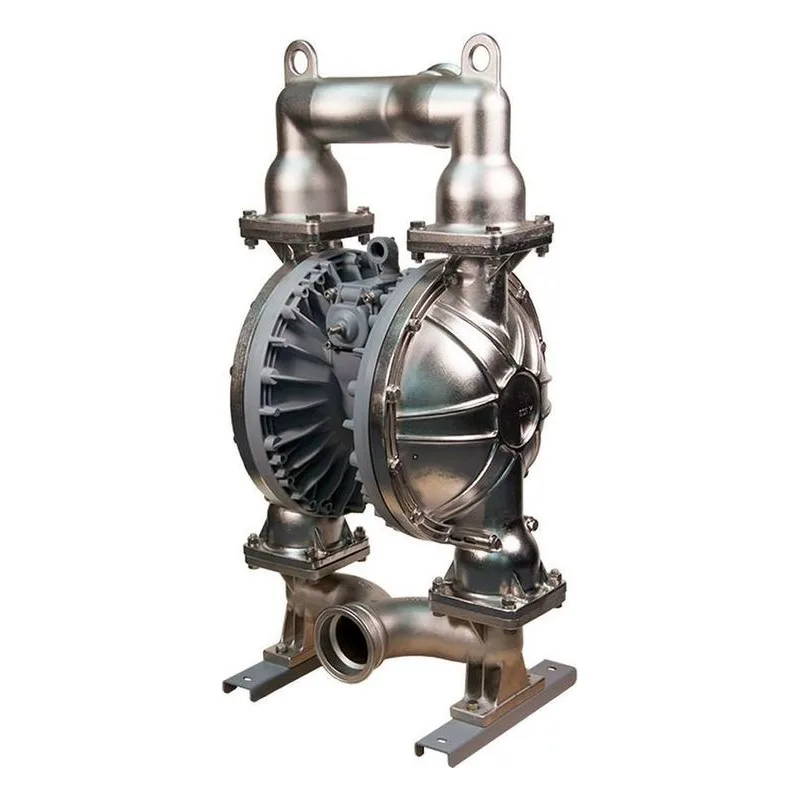

Yamada America NDP-50BSU-FDA NDP-50 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 852645-U-FDA. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Grey PTFE Coated Air Motor. 2" Tri-Clamp Inlet & Outlet, 2-1/2" Sanitary Clamp, 164 GPM Flow Rate, Passes up to 5/16" (8mm) Solids.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
852645-U-FDA
Yamada America NDP-50BSU-FDA NDP-50 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 852645-U-FDA. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Grey PTFE Coated Air Motor. 2" Tri-Clamp Inlet & Outlet, 2-1/2" Sanitary Clamp, 164 GPM Flow Rate, Passes up to 5/16" (8mm) Solids.
| Air Exhaust | 1" Female NPT (includes silencer) |
| Air Inlet | 3/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | Tri-Clamp |
| Diaphragm | Ultimate (PTFE/EPDM) |
| Discharge NPT (Inches) | 2" |
| Discharge Volume Per Cycle | 0.69 Gallons |
| Fluid Port | 2" |
| Liquid Temperature | 212°F (100°C) |
| Material | 316 Stainless Steel |
| Max Cycles Per Minute | 220 |
| Maximum Flow (GPM) | 164 |
| Max Suction Lift | 19' |
| Model Number | NDP-50BSU-FDA |
| Model Series | NDP-50 |
| Motor | Grey PTFE Coated |
| Product Notes | FDA Compliant |
| Sanitary Clamp Size | 2-1/2" |
| Solids (Inches) | 5/16" (8mm) |
| Suction NPT (Inches) | 2" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
FDA Series Information
| Features & Benefits |
|---|
| Key features of Yamada® FDA series pumps: • self-priming, lube-free air valve • intrinsically safe and portable • no mechanical seals • ability to run dry without pump damage Available in eight sizes from 3/4" to 4" ports with flow ranges from 1–215 gallons per minute. Sanitary Fitting / Flow Rate / Maximum Size Solid NDP-5-FDA 3/4" 3.1 GPM N/A DP-10-FDA 3/4" 6.0 GPM <1/32" NDP-15-FDA 1" 13.5 GPM <1/32" NDP-20-FDA 1" 31.7 GPM <1/16" NDP-25-FDA 1-1/2" 46.2 GPM <3/16" NDP-40-FDA 2" 107 GPM <9/32" NDP-50-FDA 2-1/2" 164 GPM <5/16" NDP-80-FDA 4" 215 GPM <13/32" FDA Compliant Elastomers Diaphragm Material Temperature EPDM* 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) * EDPM available only for NDP-20 and larger pumps. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
| Type | Title | Link | |
|---|---|---|---|
Yamada FDA Compliant Pump Brochure | View | ||
Yamada Pumps NDP-5 Pump Specifications | View | ||
Yamada Pumps NDP-15 Pump Specifications | View | ||
Yamada Pumps NDP-20 Pump Specifications | View | ||
Yamada Pumps NDP-25 Pump Specifications | View | ||
Yamada Pumps NDP-40 Pump Specifications | View | ||
Yamada Pumps NDP-50 Pump Specifications | View | ||
Yamada Pumps NDP-80 Pump Specifications | View | ||
Repair Parts for 852645-U-FDA
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | K50-MU | Ships in | Call for pricing | ||
