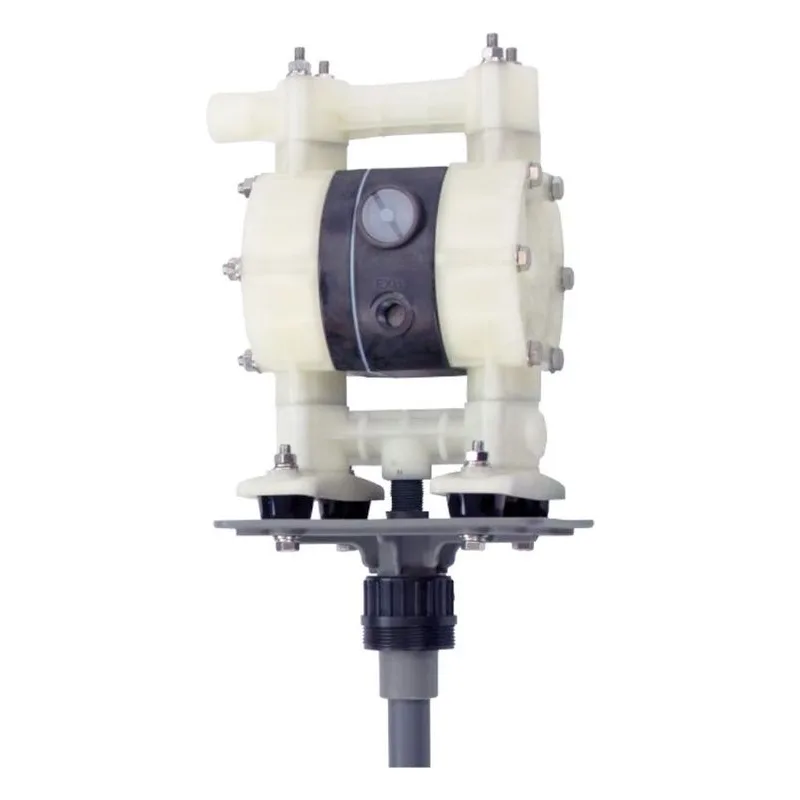

Yamada Pumps NDP-15FPN-D Diaphragm Drum Pump

Drum Pumps Information

Features & Benefits
Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM. Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada. Port Dimensions Intake & discharge connection: Aluminum (ADC-12) 3/8" or 3/4" Female NPT Includes Aluminum Male NPT, Bung adapter and suction pipe Stainless Steel (316) 3/8" or 3/4" Female NPT Includes Stainless Steel Male NPT, Bung adapter and suction pipe Polypropylene (PPG) 1/2" or 3/4" Female NPT Includes PVC suction pipe, elbow, & Bung adapter (PPG also available) Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps. Kynar® (PVDF) 1/2" Female NPT Includes PVDF suction pipe, elbow, and Bung adapter Drum inlet connection 2" Bung

Features & Benefits

Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM.

Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada.

Port Dimensions
Intake & discharge connection:
Aluminum (ADC-12) 3/8" or 3/4" Female NPT
Includes Aluminum Male NPT, Bung adapter and suction pipe

Stainless Steel (316) 3/8" or 3/4" Female NPT
Includes Stainless Steel Male NPT, Bung adapter and suction pipe

Polypropylene (PPG) 1/2" or 3/4" Female NPT
Includes PVC suction pipe, elbow, & Bung adapter (PPG also available)

Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps.

Kynar® (PVDF) 1/2" Female NPT
Includes PVDF suction pipe, elbow, and Bung adapter
Drum inlet connection 2" Bung

Actual Weight	14
Motor	Ryton Air Motor

Type	Title		Link

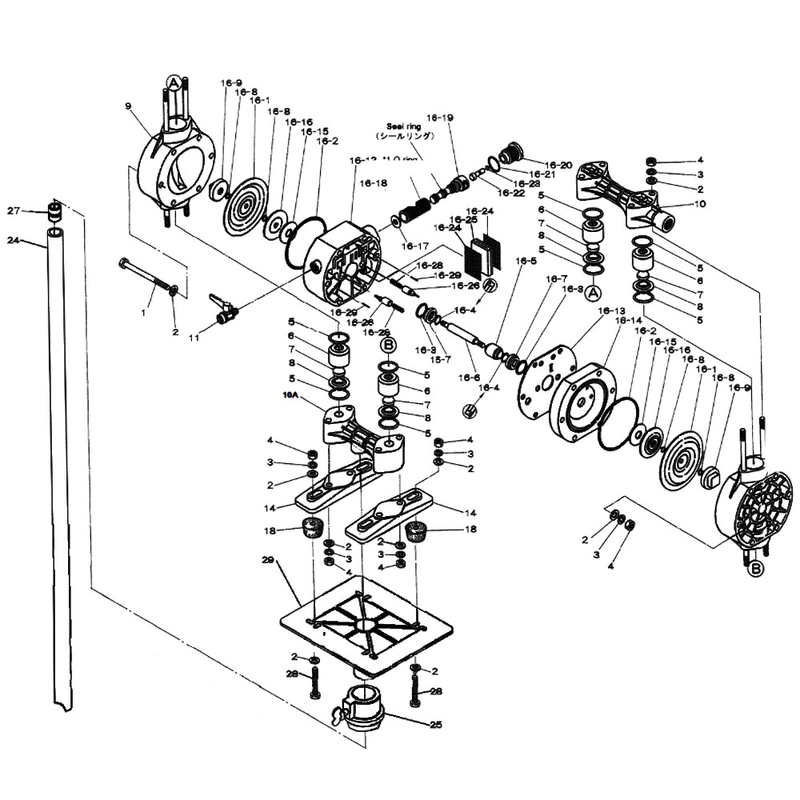

	NDP-15FPN-D Exploded View Parts Listing		View
	Yamada Drum Pump Specifications		View

	shipping	price
K15-PN	Ships in 1-2 Weeks	$150.00	Select item
K15-AM	Ships in 1-2 Weeks	$163.00	Select item
684310	Ships in 1-2 Weeks	$13.00	Select item
631329	Ships in 1-2 Weeks	$5.00	Select item
681300	Ships in 1-2 Weeks	$5.00	Select item
628012	Ships in 1-2 Weeks	$5.00	Select item
640027-YAM	Ships in 1-2 Weeks	$5.00	Select item
771341	Ships in 1-2 Weeks	$21.00	Select item
771340	Ships in 1-2 Weeks	$10.00	Select item
771345	Ships in 1-2 Weeks	$18.00	Select item
780119	Ships in 1-2 Weeks	$186.00	Select item
780027	Ships in 1-2 Weeks	$96.00	Select item
780196	Ships in	$22.00	Select item
686826	Ships in	$21.00	Select item
621153	Ships in 1-2 Weeks	$5.00	Select item
771352	Ships in 1-2 Weeks	$27.00	Select item
770973	Ships in 1-2 Weeks	$25.00	Select item
640144	Ships in 1-2 Weeks	$5.00	Select item
640020	Ships in 1-2 Weeks	$5.00	Select item
684284	Ships in 1-2 Weeks	$8.00	Select item
771337	Ships in 1-2 Weeks	$9.00	Select item
710578	Ships in 1-2 Weeks	$121.00	Select item
771336	Ships in 1-2 Weeks	$21.00	Select item
640005	Ships in 1-2 Weeks	$5.00	Select item
770968	Ships in 1-2 Weeks	$86.00	Select item
780029	Ships in 1-2 Weeks	$364.00	Select item
771347	Ships in 1-2 Weeks	$12.00	Select item
780030	Ships in 1-2 Weeks	$186.00	Select item
771342	Ships in 1-2 Weeks	$6.00	Select item
771344	Ships in 1-2 Weeks	$27.00	Select item
771483	Ships in 1-2 Weeks	$6.00	Select item
804249	Ships in 1-2 Weeks	$78.00	Select item
683123	Ships in 1-2 Weeks	$6.00	Select item
802835	Ships in 1-2 Weeks	$277.00	Select item
771484	Ships in 1-2 Weeks	$9.00	Select item
771695	Ships in 1-2 Weeks	$57.00	Select item
640022	Ships in 1-2 Weeks	$5.00	Select item
771350	Ships in 1-2 Weeks	$12.00	Select item
640002	Ships in 1-2 Weeks	$5.00	Select item
771589	Ships in 1-2 Weeks	$18.00	Select item
771465	Ships in 1-2 Weeks	$13.00	Select item
832141	Ships in 1-2 Weeks	$27.00	Select item
710577	Ships in 1-2 Weeks	$6.00	Select item
632752	Ships in 1-2 Weeks	$5.00	Select item
770551	Ships in 1-2 Weeks	$6.00	Select item
15P-PIPE-1	Ships in	$23.00	Select item
15P-BUNG-1	Ships in	$56.00	Select item
15P-NIPP	Ships in	$9.00	Select item
15P-BOLT	Ships in	$5.00	Select item
773337	Ships in	$74.00	Select item
