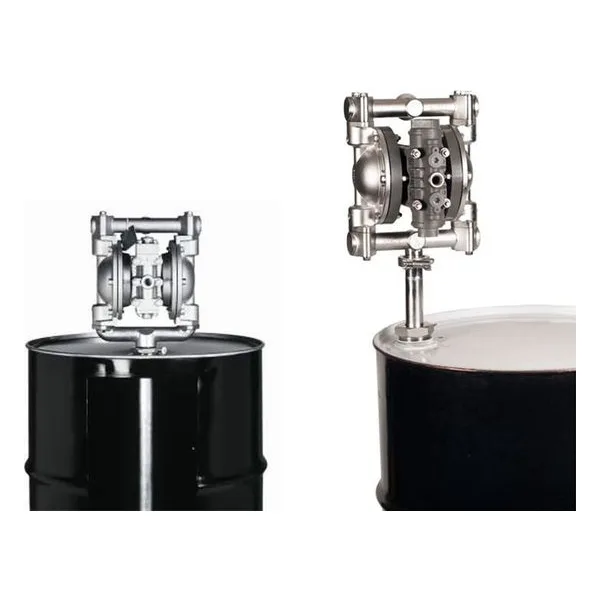

Yamada Drum Pumps are Air-Powered Double Diaphragm Pumps have distinct design advantages that make them very versatile and cost effective drum pumps.
Models are available in Polypropylene, PVDF (Kynar), Aluminum, and Stainless Steel which includes a 2" bung adapter and 33" suction tube.
Yamada America NDP-15FPT-D NDP-15 Series Air Operated Double Diaphragm Drum Pump, Model Number 851699-D. Polypropylene Body, PTFE Diaphragm, Flat Valve & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 11.9 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America NDP-20BAT-D NDP-20 Series Air Operated Double Diaphragm Drum Pump. Aluminum Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/4" FNPT Inlet & Outlet, 29.1 GPM Flow Rate, Passes up to 1/16" (2mm) Solids.
Yamada America DP-15BAN-D DP-15 Series Air Operated Double Diaphragm Drum Pump, Model Number G15AN-D. Aluminum Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-15BAT-D DP-15 Series Air Operated Double Diaphragm Drum Pump, Model Number G15AT-D. Aluminum Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-15BAS-D DP-15 Series Air Operated Double Diaphragm Drum Pump, Model Number G15AS-D. Aluminum Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-10BAC-D DP-10 Series Air Operated Double Diaphragm Drum Pump, Model Number 852842-D. Aluminum Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 5.28 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-10BAH-D DP-10 Series Air Operated Double Diaphragm Drum Pump, Model Number 851847-D. Aluminum Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 5.28 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-10BAN-D DP-10 Series Air Operated Double Diaphragm Drum Pump, Model Number 852841-D. Aluminum Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 5.28 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-10BAS-D DP-10 Series Air Operated Double Diaphragm Drum Pump, Model Number 852677-D. Aluminum Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 5.28 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-10BAT-D DP-10 Series Air Operated Double Diaphragm Drum Pump, Model Number 851839-D. Aluminum Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 5.28 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-10BSC-D DP-10 Series Air Operated Double Diaphragm Drum Pump. 316 Stainless Steel Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 5.28 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
Yamada America DP-10BSH-D DP-10 Series Air Operated Double Diaphragm Drum Pump, Model Number 851418-D. 316 Stainless Steel Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 5.28 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
