• Yamada Pump DP-10BAT-D

Image shown may not be actual product

Yamada

DP-10BAT-D

0 reviews

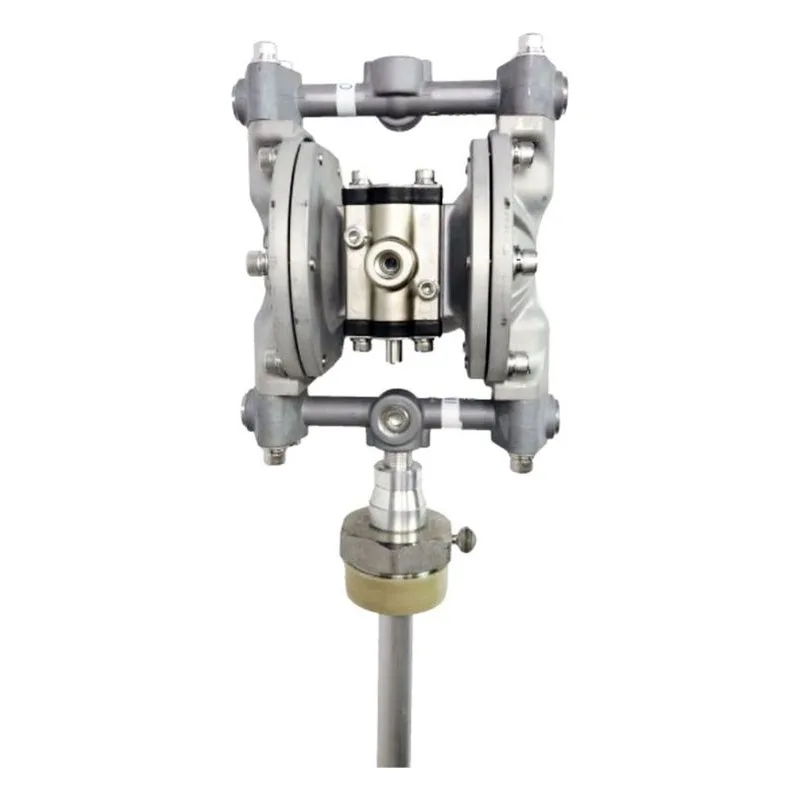

DP-10BAT-D Drum Pump & Aluminum Air Motor.

$1,015.00

Item: DP-10BAT-D

DP-10BAT-D

DP-10BAT-D Drum Pump & Aluminum Air Motor.

Actual Weight13
MotorAluminum Air Motor

Drum Pumps Information

Features & Benefits
Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM.

Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada.

Port Dimensions
Intake & discharge connection:
Aluminum (ADC-12) 3/8" or 3/4" Female NPT
Includes Aluminum Male NPT, Bung adapter and suction pipe

Stainless Steel (316) 3/8" or 3/4" Female NPT
Includes Stainless Steel Male NPT, Bung adapter and suction pipe

Polypropylene (PPG) 1/2" or 3/4" Female NPT
Includes PVC suction pipe, elbow, & Bung adapter (PPG also available)

Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps.

Kynar® (PVDF) 1/2" Female NPT
Includes PVDF suction pipe, elbow, and Bung adapter
Drum inlet connection 2" Bung

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

TypeTitleLink

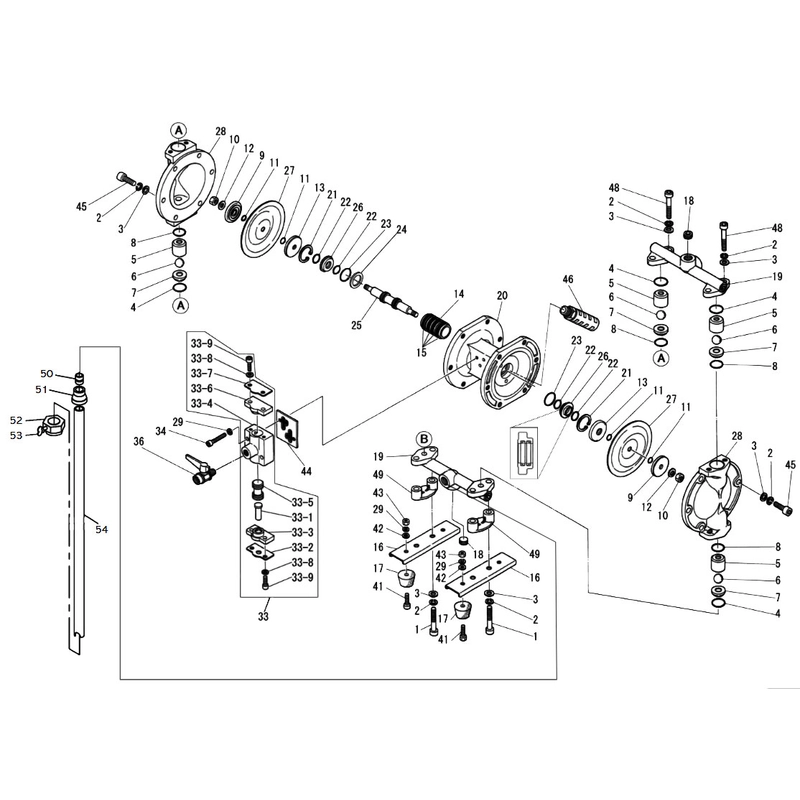

DP-10BAT-D Exploded View Parts Listing

View

Yamada Drum Pump Specifications

View

Repair Parts for DP-10BAT-D

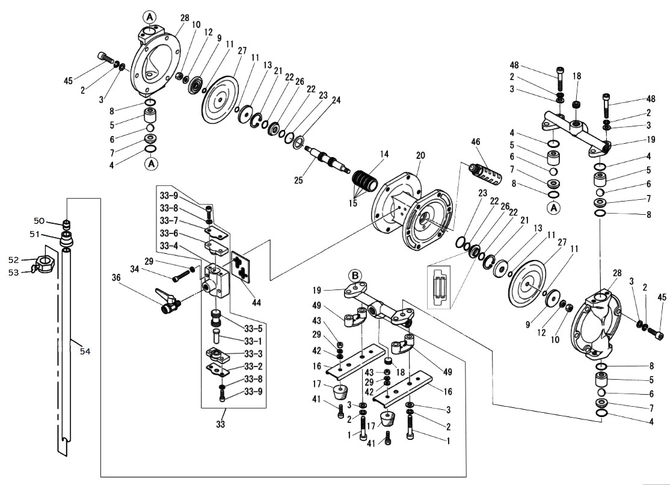

  • Yamada DP-10BAT-D Drum Pump Repair Parts Exploded View
Productqty.shippingprice
DP-10D

DP-10D

Ships in 1-2 Weeks $168.00
K10-AT

K10-AT

Ships in 1-2 Weeks $198.00
K115-AM

K115-AM

Ships in 1-2 Weeks $111.00
681295

681295

Ships in 1-2 Weeks $5.00
681300

681300

Ships in 1-2 Weeks $5.00
631329

631329

Ships in 1-2 Weeks $5.00
643018

643018

Ships in 1-2 Weeks $6.00
771368

771368

Ships in 1-2 Weeks $12.00
770931

770931

Ships in 1-2 Weeks $10.00
710638

710638

Ships in 1-2 Weeks $21.00
643017

643017

Ships in 1-2 Weeks $6.00
708770

708770

Ships in 1-2 Weeks $38.00
681849

681849

Ships in 1-2 Weeks $12.00
643005

643005

Ships in 1-2 Weeks $6.00
684916

684916

Ships in 1-2 Weeks $5.00
709512

709512

Ships in 1-2 Weeks $28.00
714678

714678

Ships in 1-2 Weeks $61.00
684900

684900

Ships in 1-2 Weeks $6.00
717184

717184

Ships in $24.00
771123

771123

Ships in 1-2 Weeks $6.00
709872

709872

Ships in 1-2 Weeks $9.00
802591

802591

Ships in 1-2 Weeks $111.00
715107

715107

Ships in 1-2 Weeks $194.00
630807

630807

Ships in 1-2 Weeks $5.00
684284

684284

Ships in 1-2 Weeks $8.00
640131

640131

Ships in 1-2 Weeks $5.00
772651

772651

Ships in 1-2 Weeks $6.00
801785

801785

Ships in 1-2 Weeks $203.00
772619

772619

Ships in 1-2 Weeks $35.00
770933

770933

Ships in 1-2 Weeks $43.00
710572

710572

Ships in 1-2 Weeks $212.00
681855

681855

Ships in 1-2 Weeks $5.00
804505

804505

Ships in 1-2 Weeks $175.00
706798

706798

Ships in 1-2 Weeks $21.00
710587

710587

Ships in 1-2 Weeks $24.00
771357

771357

Ships in 1-2 Weeks $21.00
710853

710853

Ships in 1-2 Weeks $83.00
801404

801404

Ships in 1-2 Weeks $18.00
771356

771356

Ships in 1-2 Weeks $13.00
710636

710636

Ships in 1-2 Weeks $24.00
681855

681855

Ships in 1-2 Weeks $5.00
682943

682943

Ships in 1-2 Weeks $5.00
682918

682918

Ships in 1-2 Weeks $5.00
686826

686826

Ships in $21.00
621102

621102

Ships in 1-2 Weeks $5.00
631328

631328

Ships in 1-2 Weeks $5.00
628010

628010

Ships in 1-2 Weeks $5.00
771358

771358

Ships in 1-2 Weeks $23.00
682944

682944

Ships in 1-2 Weeks $8.00
682520

682520

Ships in 1-2 Weeks $21.00
771380

771380

Ships in 1-2 Weeks $21.00
10A-NIPP

10A-NIPP

Ships in $12.00
10A-BUSH

10A-BUSH

Ships in $27.00
15A-BUNG

15A-BUNG

Ships in $70.00
91745A542

91745A542

Ships in 1-2 Weeks $10.00
15A-PIPE

15A-PIPE

Ships in $50.00
0 items selected.Add items to cart
