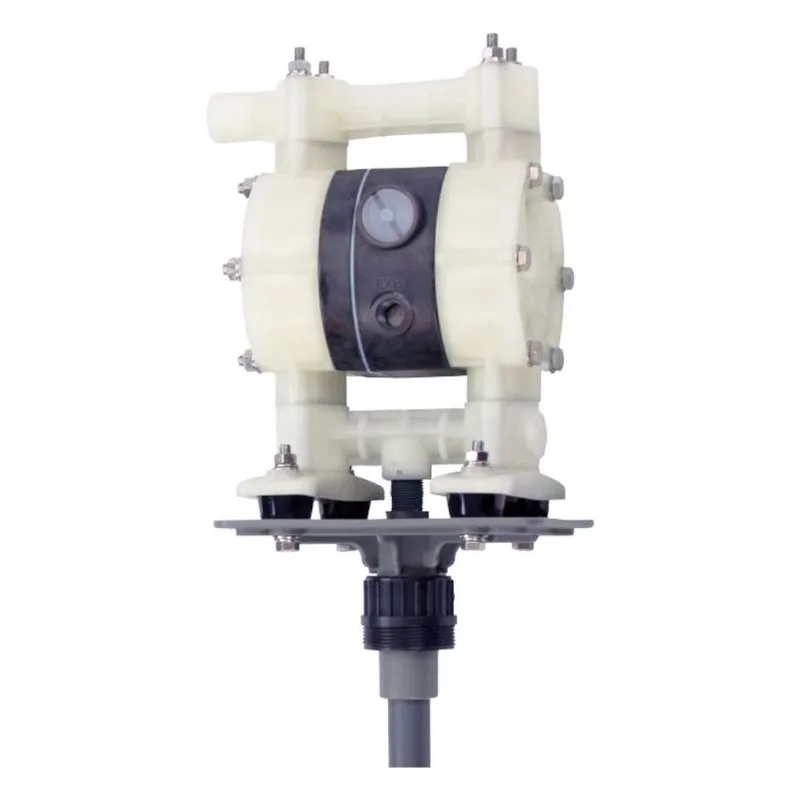

Image shown may not be actual product
NDP-15FPH-D
Yamada America NDP-15FPH-D NDP-15 Series Air Operated Double Diaphragm Drum Pump. Polypropylene Body, Hytrel Diaphragm, PTFE Flat Valve & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 11.9 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
$1,030.00
- Best Price Guarantee!
- 206PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
NDP-15FPH-D
Yamada America NDP-15FPH-D NDP-15 Series Air Operated Double Diaphragm Drum Pump. Polypropylene Body, Hytrel Diaphragm, PTFE Flat Valve & O-Rings, Ryton Air Motor. 1/2" FNPT Inlet & Outlet, 11.9 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
| Air Exhaust | 3/8" Female NPT (includes silencer) |
| Air Inlet | 1/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | FNPT |
| Diaphragm | Hytrel (TPE) |
| Discharge NPT (Inches) | 1/2" |
| Discharge Volume Per Cycle | 0.034 Gallons |
| Fluid Port | 1/2" |
| Includes | Pump, 2" bung adapter & 33" suction tube |
| Liquid Temperature | 180°F (82°C) |
| Material | Polypropylene |
| Max Cycles Per Minute | 400 |
| Maximum Flow (GPM) | 11.9 |
| Max Suction Lift | 5' |
| Model Number | ^ |
| Model Series | NDP-15 |
| Motor | Ryton |
| Product Notes | Drum Pump |
| Solids (Inches) | 1/32" (1mm) |
| Suction NPT (Inches) | 1/2" |
| Valve Balls | PTFE (Flat Valve) |
| Valve / Seat / O-Ring | Buna-N O-Rings |
| Valve Type | Flat |
Drum Pumps Information
| Features & Benefits |
|---|
| Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM. Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada. Port Dimensions Intake & discharge connection: Aluminum (ADC-12) 3/8" or 3/4" Female NPT Includes Aluminum Male NPT, Bung adapter and suction pipe Stainless Steel (316) 3/8" or 3/4" Female NPT Includes Stainless Steel Male NPT, Bung adapter and suction pipe Polypropylene (PPG) 1/2" or 3/4" Female NPT Includes PVC suction pipe, elbow, & Bung adapter (PPG also available) Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps. Kynar® (PVDF) 1/2" Female NPT Includes PVDF suction pipe, elbow, and Bung adapter Drum inlet connection 2" Bung |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products

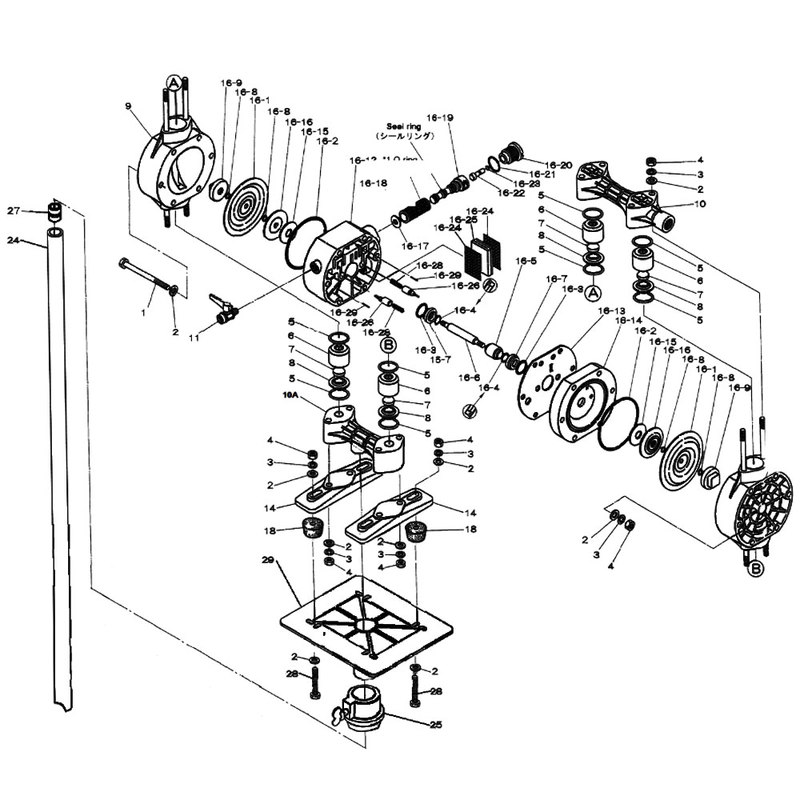

Repair Parts for NDP-15FPH-D
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | K15-PH | Ships in 1-2 Weeks | $144.00 | ||
 | K15-AM | Ships in 1-2 Weeks | $188.00 | ||
 | 684310 | Ships in 1-2 Weeks | $15.00 | ||
 | 631329 | Ships in 1-2 Weeks | $7.00 | ||
 | 681300 | Ships in 1-2 Weeks | $7.00 | ||
 | 628012 | Ships in 1-2 Weeks | $7.00 | ||
 | 640027-YAM | Ships in 1-2 Weeks | $7.00 | ||
 | 771341 | Ships in 1-2 Weeks | $25.00 | ||
 | 771340 | Ships in 1-2 Weeks | $12.00 | ||
 | 771345 | Ships in 1-2 Weeks | $21.00 | ||
 | 780119 | Ships in 1-2 Weeks | $219.00 | ||
 | 780027 | Ships in 1-2 Weeks | $113.00 | ||
 | 780196 | Ships in | $26.00 | ||
 | 686826 | Ships in | $25.00 | ||
 | 621153 | Ships in 1-2 Weeks | $7.00 | ||
 | 771352 | Ships in 1-2 Weeks | $33.00 | ||
 | 771372 | Ships in 1-2 Weeks | $32.00 | ||
 | 640144 | Ships in 1-2 Weeks | $7.00 | ||
 | 640020 | Ships in 1-2 Weeks | $7.00 | ||
 | 684284 | Ships in 1-2 Weeks | $10.00 | ||
| 771337 | Ships in 1-2 Weeks | $11.00 | ||
 | 710578 | Ships in 1-2 Weeks | $137.00 | ||
 | 771336 | Ships in 1-2 Weeks | $25.00 | ||
| 770968 | Ships in 1-2 Weeks | $102.00 | ||
 | 780029 | Ships in 1-2 Weeks | $426.00 | ||
 | 771347 | Ships in 1-2 Weeks | $14.00 | ||
 | 780030 | Ships in 1-2 Weeks | $219.00 | ||
 | 771342 | Ships in 1-2 Weeks | $8.00 | ||
 | 771344 | Ships in 1-2 Weeks | $33.00 | ||
 | 771483 | Ships in 1-2 Weeks | $8.00 | ||
 | 804249 | Ships in 1-2 Weeks | $94.00 | ||
 | 683123 | Ships in 1-2 Weeks | $8.00 | ||
 | 802835 | Ships in 1-2 Weeks | $326.00 | ||
 | 771484 | Ships in 1-2 Weeks | $11.00 | ||
 | 771695 | Ships in 1-2 Weeks | $68.00 | ||
 | 640022 | Ships in 1-2 Weeks | $7.00 | ||
 | 771350 | Ships in 1-2 Weeks | $14.00 | ||
 | 640002 | Ships in 1-2 Weeks | $7.00 | ||
 | 771589 | Ships in 1-2 Weeks | $21.00 | ||
 | 771465 | Ships in 1-2 Weeks | $15.00 | ||
 | 832141 | Ships in 1-2 Weeks | $33.00 | ||
 | 710577 | Ships in 1-2 Weeks | $8.00 | ||
| 632752 | Ships in 1-2 Weeks | $7.00 | ||
 | 770551 | Ships in 1-2 Weeks | $8.00 | ||
| 15P-PIPE-1 | Ships in | $27.00 | ||
 | 15P-BUNG-1 | Ships in | $67.00 | ||
| 15P-NIPP | Ships in | $11.00 | ||
| 15P-BOLT | Ships in | $7.00 | ||
| 773337 | Ships in | $87.00 | ||
