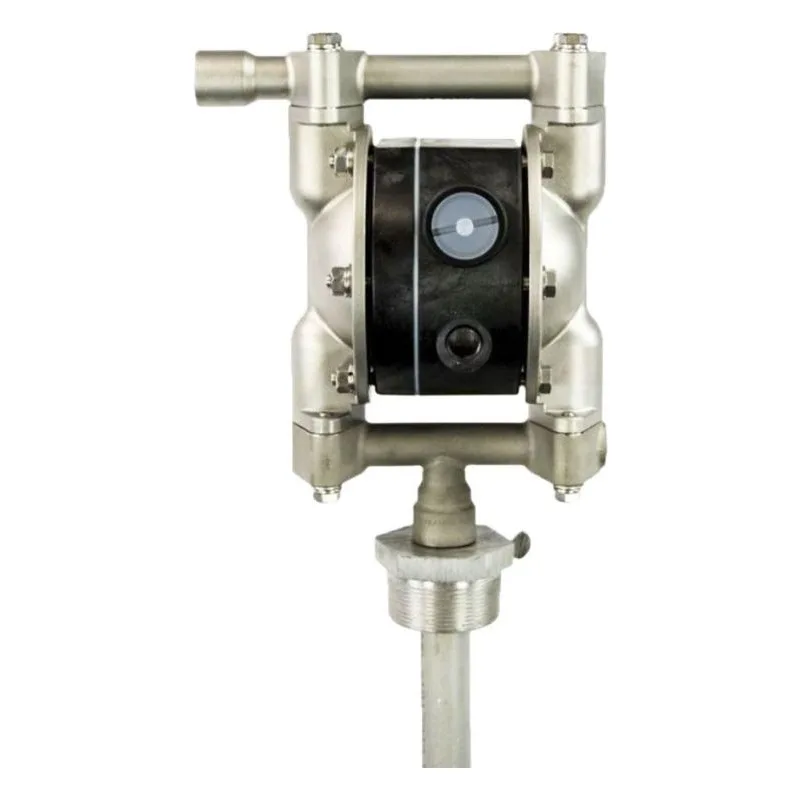

• Yamada Pumps NDP-15BSS-D Drum Pump

Image shown may not be actual product

Yamada

NDP-15BSS-D

0 reviews

Yamada NDP-15BSS DRUM PUMP NDP-15BSS-D, Air Operated Double Diaphragm Pump with Santoprene Diaphragm. Santoprene / EPDM Valve & O-Rings, Stainless Steel Ball Valve (316) Material, 13.5 GPM Max Flow, 1/2" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor & 5 Feet Max Suction Lift.

$2,350.00

Item: NDP-15BSS-D

NDP-15BSS-D

Yamada NDP-15BSS DRUM PUMP NDP-15BSS-D, Air Operated Double Diaphragm Pump with Santoprene Diaphragm. Santoprene / EPDM Valve & O-Rings, Stainless Steel Ball Valve (316) Material, 13.5 GPM Max Flow, 1/2" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor & 5 Feet Max Suction Lift.

Air Exhaust3/8" Female NPT (includes silencer)
Air Inlet1/4" Female NPT (includes ball valve)
Air Supply Pressure100 PSI Max
DiaphragmSantoprene
Discharge Volume Per Cycle0.0338 gallons (128 cc)
Fluid Port1/2" NPT
IncludesStainless Steel Male NPT bung adapter and suction pipe
Liquid Temperature180°F (82°C) Max
MaterialStainless Steel Ball Valve (316)
Max Cycles Per Minute400
Maximum Flow (GPM)13.5 GPM
Max Suction Lift5 Feet
Model SeriesNDP-15 Models
MotorRyton Air Motor
Quick SpecsNDP-15BSS DRUM PUMP
Solids (Inches)1/32" (1 mm)
Suction NPT (Inches)2" bung adapter
Valve / Seat / O-RingSantoprene / EPDM

Drum Pumps Information

Features & Benefits
Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM.

Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada.

Port Dimensions
Intake & discharge connection:
Aluminum (ADC-12) 3/8" or 3/4" Female NPT
Includes Aluminum Male NPT, Bung adapter and suction pipe

Stainless Steel (316) 3/8" or 3/4" Female NPT
Includes Stainless Steel Male NPT, Bung adapter and suction pipe

Polypropylene (PPG) 1/2" or 3/4" Female NPT
Includes PVC suction pipe, elbow, & Bung adapter (PPG also available)

Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps.

Kynar® (PVDF) 1/2" Female NPT
Includes PVDF suction pipe, elbow, and Bung adapter
Drum inlet connection 2" Bung

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

TypeTitleLink

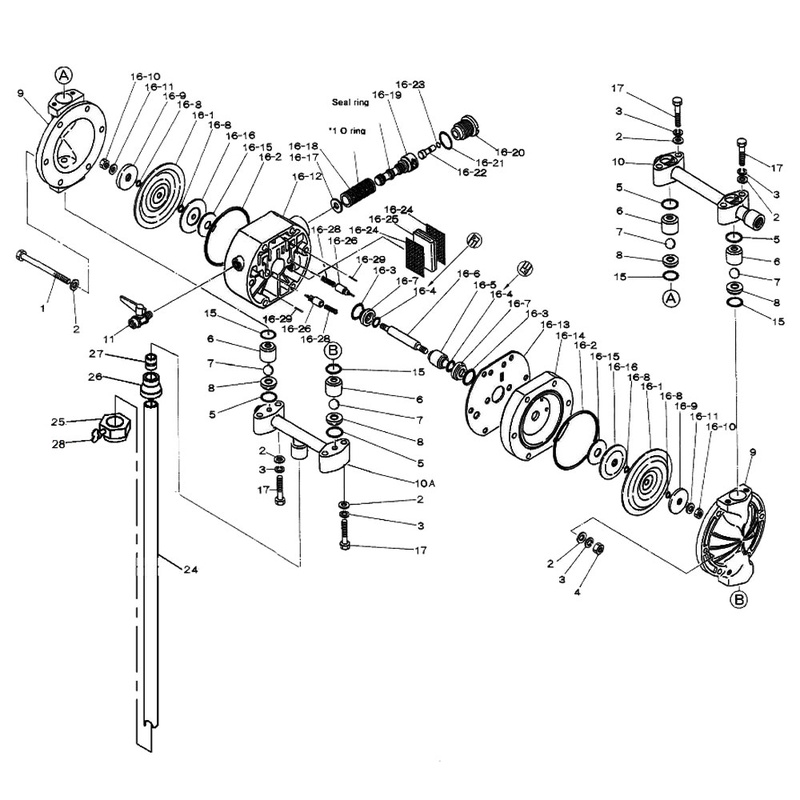

NDP-15BSS-D Exploded View Parts Listing

View

Yamada Drum Pump Specifications

View

Repair Parts for NDP-15BSS-D

  • NDP-15BSS-D Exploded View Parts Listing
Productqty.shippingprice
683224

683224

Ships in 1-2 Weeks $21.00
631329

631329

Ships in 1-2 Weeks $5.00
681300

681300

Ships in 1-2 Weeks $5.00
628012

628012

Ships in 1-2 Weeks $5.00
684114

684114

Ships in 1-2 Weeks $8.00
711502

711502

Ships in 1-2 Weeks $60.00
773169

773169

Ships in $12.00
711382

711382

Ships in 1-2 Weeks $60.00
711380

711380

Ships in 1-2 Weeks $696.00
711506

711506

Ships in 1-2 Weeks $305.00
15S-MANI

15S-MANI

Ships in $580.00
686826

686826

Ships in $21.00
621102

621102

Ships in 1-2 Weeks $5.00
684113

684113

Ships in 1-2 Weeks $8.00
771972

771972

Ships in 1-2 Weeks $21.00
640144

640144

Ships in 1-2 Weeks $5.00
640020

640020

Ships in 1-2 Weeks $5.00
684284

684284

Ships in 1-2 Weeks $8.00
771337

771337

Ships in 1-2 Weeks $9.00
710578

710578

Ships in 1-2 Weeks $121.00
771336

771336

Ships in 1-2 Weeks $21.00
708506

708506

Ships in 1-2 Weeks $55.00
681849

681849

Ships in 1-2 Weeks $12.00
684916

684916

Ships in 1-2 Weeks $5.00
780029

780029

Ships in 1-2 Weeks $379.00
771347

771347

Ships in 1-2 Weeks $12.00
780030

780030

Ships in 1-2 Weeks $194.00
771342

771342

Ships in 1-2 Weeks $6.00
771344

771344

Ships in 1-2 Weeks $28.00
771483

771483

Ships in 1-2 Weeks $6.00
804249

804249

Ships in 1-2 Weeks $82.00
683123

683123

Ships in 1-2 Weeks $6.00
802835

802835

Ships in 1-2 Weeks $289.00
771484

771484

Ships in 1-2 Weeks $9.00
771695

771695

Ships in 1-2 Weeks $60.00
640022

640022

Ships in 1-2 Weeks $5.00
771350

771350

Ships in 1-2 Weeks $12.00
640002

640002

Ships in 1-2 Weeks $5.00
771589

771589

Ships in 1-2 Weeks $18.00
771465

771465

Ships in 1-2 Weeks $13.00
832141

832141

Ships in 1-2 Weeks $28.00
710577

710577

Ships in 1-2 Weeks $6.00
632752

632752

Ships in 1-2 Weeks $5.00
621155

621155

Ships in 1-2 Weeks $5.00
771123

771123

Ships in 1-2 Weeks $6.00
631328

631328

Ships in 1-2 Weeks $5.00
681855

681855

Ships in 1-2 Weeks $5.00
628010

628010

Ships in 1-2 Weeks $5.00
15S-PIPE

15S-PIPE

Ships in $87.00
15S-BUNG

15S-BUNG

Ships in $195.00
15S-COUP

15S-COUP

Ships in $23.00
15S-NIPP

15S-NIPP

Ships in $6.00
91745A545 Call for Shipping
K15-MS

K15-MS

Ships in 1-2 Weeks $154.00
K15-AM

K15-AM

Ships in 1-2 Weeks $168.00
