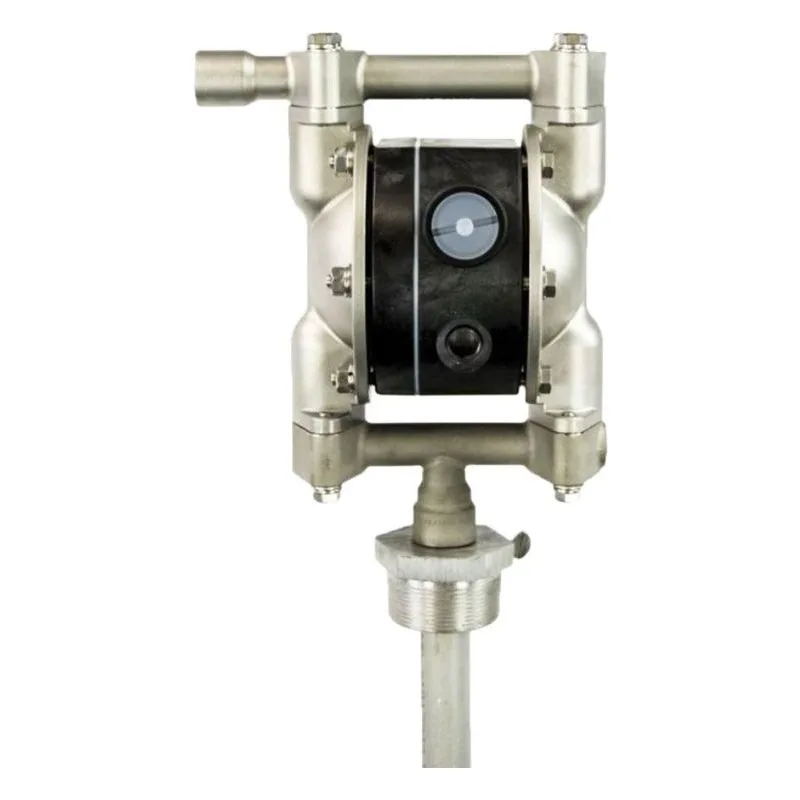

NDP-15BSC DRUM PUMP Yamada Pumps NDP-15BSC-D, PumpCatalog.com

Drum Pumps Information

Features & Benefits
Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM. Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada. Port Dimensions Intake & discharge connection: Aluminum (ADC-12) 3/8" or 3/4" Female NPT Includes Aluminum Male NPT, Bung adapter and suction pipe Stainless Steel (316) 3/8" or 3/4" Female NPT Includes Stainless Steel Male NPT, Bung adapter and suction pipe Polypropylene (PPG) 1/2" or 3/4" Female NPT Includes PVC suction pipe, elbow, & Bung adapter (PPG also available) Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps. Kynar® (PVDF) 1/2" Female NPT Includes PVDF suction pipe, elbow, and Bung adapter Drum inlet connection 2" Bung

Features & Benefits

Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM.

Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada.

Port Dimensions
Intake & discharge connection:
Aluminum (ADC-12) 3/8" or 3/4" Female NPT
Includes Aluminum Male NPT, Bung adapter and suction pipe

Stainless Steel (316) 3/8" or 3/4" Female NPT
Includes Stainless Steel Male NPT, Bung adapter and suction pipe

Polypropylene (PPG) 1/2" or 3/4" Female NPT
Includes PVC suction pipe, elbow, & Bung adapter (PPG also available)

Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps.

Kynar® (PVDF) 1/2" Female NPT
Includes PVDF suction pipe, elbow, and Bung adapter
Drum inlet connection 2" Bung

Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	100 PSI Max
Diaphragm	Neoprene
Discharge Volume Per Cycle	0.0338 gallons (128 cc)
Fluid Port	1/2" NPT
Includes	Stainless Steel Male NPT bung adapter and suction pipe
Liquid Temperature	180°F (82°C) Max
Material	Stainless Steel Ball Valve (316)
Max Cycles Per Minute	400

Maximum Flow (GPM)	13.5 GPM
Max Suction Lift	5 Feet
Model Series	NDP-15 Models
Motor	Ryton Air Motor
Quick Specs	NDP-15BSC DRUM PUMP
Solids (Inches)	1/32" (1 mm)
Suction NPT (Inches)	2" bung adapter
Valve / Seat / O-Ring	Neoprene

Type	Title		Link

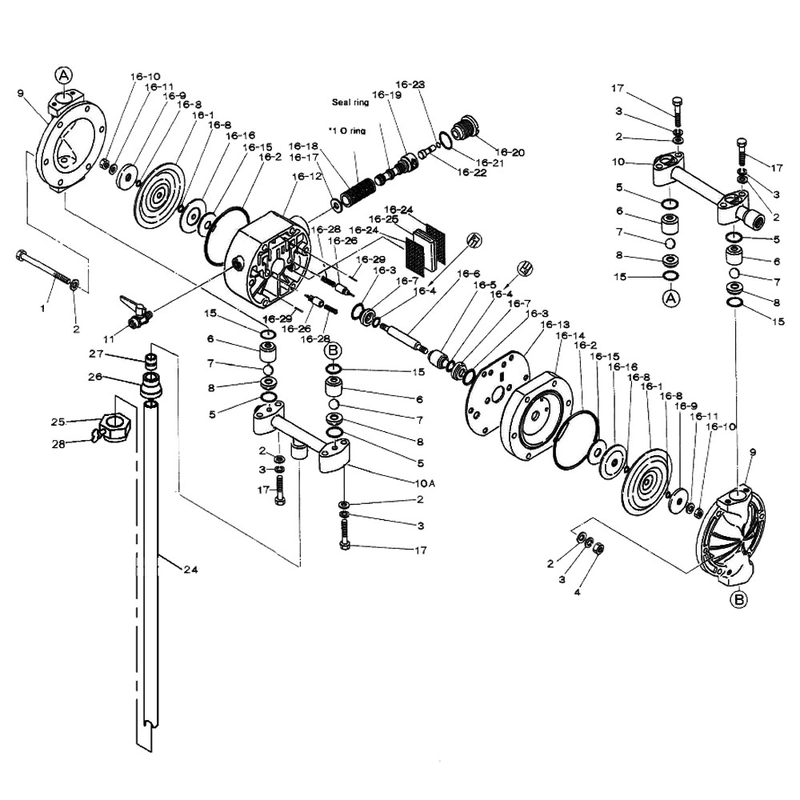

	NDP-15BSC-D Exploded View Parts Listing		View
	Yamada Drum Pump Specifications		View

	shipping	price
683224	Ships in 1-2 Weeks	$21.00	Select item
631329	Ships in 1-2 Weeks	$5.00	Select item
681300	Ships in 1-2 Weeks	$5.00	Select item
628012	Ships in 1-2 Weeks	$5.00	Select item
640025	Ships in 1-2 Weeks	$5.00	Select item
711502	Ships in 1-2 Weeks	$60.00	Select item
771526	Ships in 1-2 Weeks	$12.00	Select item
711382	Ships in 1-2 Weeks	$60.00	Select item
711380	Ships in 1-2 Weeks	$696.00	Select item
711506	Ships in 1-2 Weeks	$305.00	Select item
15S-MANI	Ships in	$580.00	Select item
686826	Ships in	$21.00	Select item
621102	Ships in 1-2 Weeks	$5.00	Select item
640130	Ships in 1-2 Weeks	$5.00	Select item
770971	Ships in 1-2 Weeks	$25.00	Select item
640144	Ships in 1-2 Weeks	$5.00	Select item
640020	Ships in 1-2 Weeks	$5.00	Select item
684284	Ships in 1-2 Weeks	$8.00	Select item
771337	Ships in 1-2 Weeks	$9.00	Select item
710578	Ships in 1-2 Weeks	$121.00	Select item
771336	Ships in 1-2 Weeks	$21.00	Select item
640005	Ships in 1-2 Weeks	$5.00	Select item
708506	Ships in 1-2 Weeks	$55.00	Select item
681849	Ships in 1-2 Weeks	$12.00	Select item
684916	Ships in 1-2 Weeks	$5.00	Select item
780029	Ships in 1-2 Weeks	$379.00	Select item
771347	Ships in 1-2 Weeks	$12.00	Select item
780030	Ships in 1-2 Weeks	$194.00	Select item
771342	Ships in 1-2 Weeks	$6.00	Select item
771344	Ships in 1-2 Weeks	$28.00	Select item
771483	Ships in 1-2 Weeks	$6.00	Select item
804249	Ships in 1-2 Weeks	$82.00	Select item
683123	Ships in 1-2 Weeks	$6.00	Select item
802835	Ships in 1-2 Weeks	$289.00	Select item
771484	Ships in 1-2 Weeks	$9.00	Select item
771695	Ships in 1-2 Weeks	$60.00	Select item
640022	Ships in 1-2 Weeks	$5.00	Select item
771350	Ships in 1-2 Weeks	$12.00	Select item
640002	Ships in 1-2 Weeks	$5.00	Select item
771589	Ships in 1-2 Weeks	$18.00	Select item
771465	Ships in 1-2 Weeks	$13.00	Select item
832141	Ships in 1-2 Weeks	$28.00	Select item
710577	Ships in 1-2 Weeks	$6.00	Select item
632752	Ships in 1-2 Weeks	$5.00	Select item
621155	Ships in 1-2 Weeks	$5.00	Select item
771123	Ships in 1-2 Weeks	$6.00	Select item
631328	Ships in 1-2 Weeks	$5.00	Select item
681855	Ships in 1-2 Weeks	$5.00	Select item
628010	Ships in 1-2 Weeks	$5.00	Select item
15S-PIPE	Ships in	$87.00	Select item
15S-BUNG	Ships in	$195.00	Select item
15S-COUP	Ships in	$23.00	Select item
15S-NIPP	Ships in	$6.00	Select item
91745A542	Ships in 1-2 Weeks	$10.00	Select item
K15-MC	Ships in 1-2 Weeks	$158.00	Select item
K15-AM	Ships in 1-2 Weeks	$168.00	Select item
