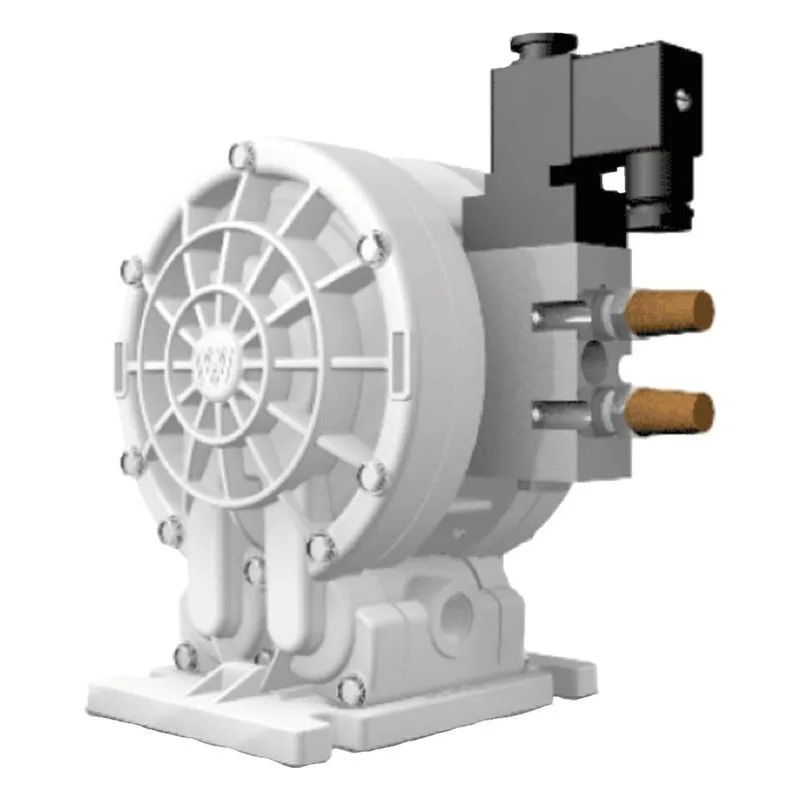

Image shown may not be actual product
00-10129
Wilden 00-10129 Accu-Flo Velocity Compact 1/4" Plastic Air Operated Double Diaphragm Pump (A2550V), MODEL: A2550V/PPPPA/TSS/TF/PTV/0150. 21.6 lpm (5.7 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Seats, Aluminum Air Valve, PTFE-Encapsulated FKM O-Rings, PTFE w/Saniflex Backup Full Stroke IPD Diaphragm, PTFE Balls. 72-7000 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
- Overview
- Series Info
- Reviews
- Literature/Manuals
00-10129
Wilden 00-10129 Accu-Flo Velocity Compact 1/4" Plastic Air Operated Double Diaphragm Pump (A2550V), MODEL: A2550V/PPPPA/TSS/TF/PTV/0150. 21.6 lpm (5.7 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Seats, Aluminum Air Valve, PTFE-Encapsulated FKM O-Rings, PTFE w/Saniflex Backup Full Stroke IPD Diaphragm, PTFE Balls. 72-7000 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
| Air Chamber | Polypropylene |
| Air Distribution System | Accu‑Flo w/ Velocity Base |
| Air Inlet | 1/4" FNPT |
| Center Block | Polypropylene |
| Connection Type | NPT |
| Diaphragm | PTFE w/Saniflex Backup |
| Diaphragm Type | Full Stroke IPD |
| Discharge NPT (Inches) | 6 mm (1/4") |
| Discharge Volume Per Cycle | 0.04 L (0.01 gal) |
| Material | Plastic |
| Maximum Flow (GPM) | 21.6 lpm (5.7 gpm) |
| Maximum Working Pressure (PSIG) | 6.9 bar (100 psi) |
| Max Suction Lift | 4.3 m (14.2') Dry, 6.2 m (20.4') Wet |
| Model Number | A2550V/PPPPA/TSS/TF/PTV/0150 |
| Model Series | A2550V |
| Outer Piston | Polypropylene |
| Product Notes | 72-7000 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. |
| Size | 1/4" |
| Solids (Inches) | 0.8 mm (1/32") |
| Special Configuration | 0150 Accu-Flo, 24V DC coil |
| Suction NPT (Inches) | 6 mm (1/4") |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | Aluminum Air Valve / Polypropylene Seat / PTFE-Encapsulated FKM O-Rings |
| Valve Type | Ball Valve |
| Wetted Parts | Polypropylene |
Velocity Compact Pumps Information
| Product Type |
|---|
| Diaphragm Pumps, Self Priming |
| Features & Benefits |
| FEATURES AND BENEFITS • Multiple mounting options • 1/4": 4.3 m (14.2') of dry suction lift for better priming • 1/2": 5.1 m (16.9') of dry suction lift for better priming • Startup pressures as low as 1.03 bar (15 psig) • Bore-seal design eliminates leaks that result from torque decay • Interchangeable footprint with previous Wilden designs (P.025, P25 and P1, P100) |
| General Description |
| Move with Velocity, Excel with Versatility MOUNTING OPTIONS The Velocity Series can easily be reorientated into a vertical or horizontal position with multiple inlet and discharge port options. With this feature, it has been designed with skids and systems in mind to fit perfectly into restricted spaces. PUMP PERFORMANCE Incorporating a proven and simple air distribution system (ADS) with only two moving parts, the Velocity Series offers long-term reliability and reduces maintenance and downtime. The Velocity Series also features improved dry suction lift at all operating parameters for better priming under a wide variety of system conditions. |
