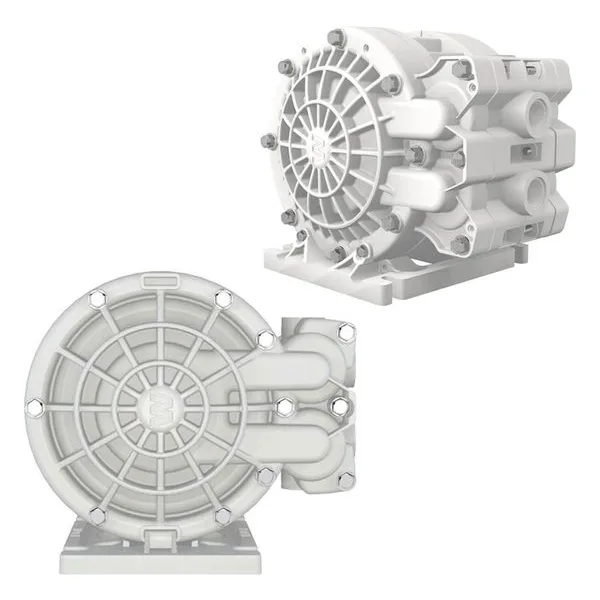

Wilden® Velocity Series AODD Pumps for Skids, Systems and Dosing Applications
Wilden's Velocity Series is a compact air-operated double-diaphragm (AODD) pump designed for versatility. Here are some key features:
Detachable Mounting Foot: The Velocity Series features a unique detachable mounting foot. This allows the pump to be easily reoriented into either a vertical or horizontal position, making it adaptable for various system configurations and skids.
Inlet and Discharge Port Options: With multiple inlet and discharge port options, the Velocity Series provides flexibility to meet different application requirements. This is crucial for systems and skids where space constraints or specific piping arrangements are considerations.
Bore-Seal Design: The pump incorporates a bore-seal design, which eliminates leaks resulting from torque decay. This ensures reliable performance and prevents fluid leakage during operation.
Dry Suction Lift Capability: The Velocity Series can achieve a dry suction lift capability of up to 5.1 meters (16.9 feet). This feature enhances priming under a wide range of system conditions, making it suitable for various applications.
Startup Pressures: The pump can operate at startup pressures as low as 1.03 bar (15 psi), allowing for efficient and reliable performance.
6 mm (1/4") Velocity Series Bolted Plastic AODD Pump V2550
4.3 m (14.2') dry suction lift for better priming
Interchangeable footprint with previous Wilden designs (P.025, P25)
13 mm (1/2") Velocity Series Bolted Plastic AODD Pump V150
5.1 m (16.9') dry suction lift for better priming
Interchangeable footprint with previous Wilden designs (P1, P100)
Wilden® Velocity Series AODD Pump
• Full bore-seal design that eliminates potential effects of torque decay
• Numerous mounting configurations to fit any application
• Detachable foot, spring loaded checks, 4-port design
• High suction lift for reliable operation and any air pressure
• Low startup pressure
Applications
• Chemical Dosing
• Paints and Inks
• Surface Treatment
• Clean-in-Place (CIP) Systems
• Lube Oil
• Commercial Laundry
• Additive Injection
• Sampling
