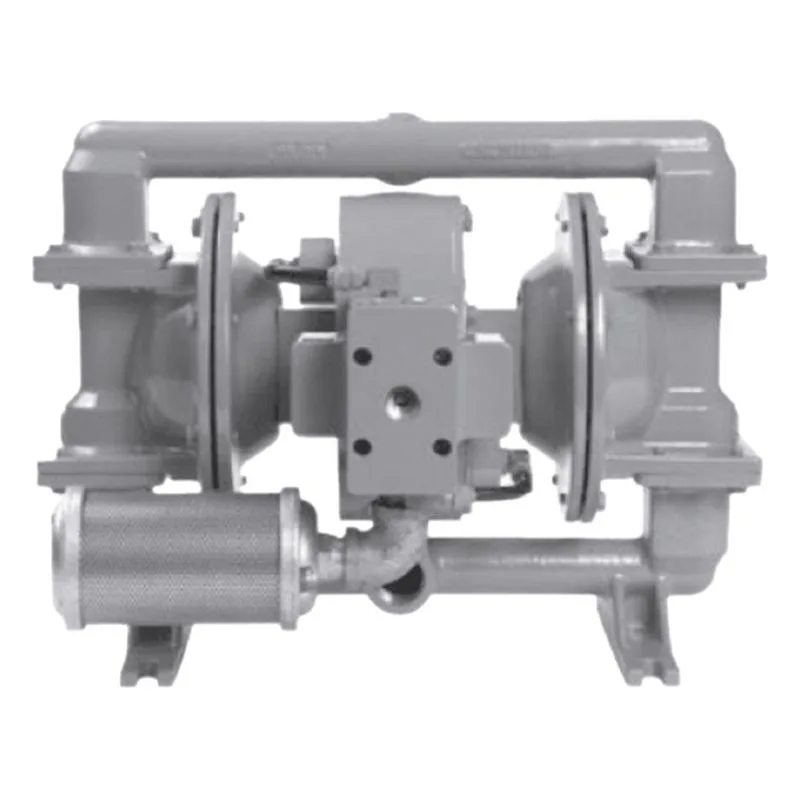

Wilden 02-12345 1" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XH220), ATEX Compliant, MODEL: XH220/SSSAA/TWS/TF/STF. 597 lpm (158 gpm) Max Flow, 25 mm (1") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston, Air Chamber & Seats, Aluminum Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. 02-9992-99 ADS Repair Kit, 02-9844-55-201 Wet End Kit, 70-7405 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$7,976.70

Best Price Guarantee!
1595PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 02-12345 | Model #: XH220/SSSAA/TWS/TF/STF

Overview
Series Info
Reviews
Literature/Manuals

02-12345

Air Chamber	Stainless Steel
Air Distribution System	High Pressure
Air Inlet	1/2" FNPT
Center Block	Aluminum
Connection Type	NPT
Construction	Bolted
Diaphragm	PTFE w/Wil-Flex Backup
Diaphragm Type	Full Stroke IPD
Discharge NPT (Inches)	25 mm (1")
Discharge Volume Per Cycle	0.189 L (0.05 gal)
Material	Metal
Maximum Flow (GPM)	597 lpm (158 gpm)
Maximum Pressure (PSI)	20.7 bar (300 psi)
Max Suction Lift	6.1 m (19.9') Dry, 8.3 m (27.2') Wet

Model Number	XH220/SSSAA/TWS/TF/STF
Model Series	XH220
Outer Piston	Stainless Steel
Product Notes	02-9992-99 ADS Repair Kit, 02-9844-55-201 Wet End Kit, 70-7405 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order.
Size	1"
Solids (Inches)	6.4 mm (1/4")
Suction NPT (Inches)	25 mm (1")
Type	ATEX
Valve Balls	PTFE
Valve / Seat / O-Ring	Aluminum Air Valve / Stainless Steel Seat / PTFE O-Rings
Valve Type	Ball Valve
Wetted Parts	Stainless Steel

High Pressure Pumps Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
DUPLEX EFFECT: 2X DRIVING FORCE Wilden High-Pressure Series Pumps use a power piston that produces two times the driving force than a typical piston. The power piston combined with the typical outer piston and Chem-Fuse Integral Piston Diaphragm provides a 3:1 pressure output ratio. This dynamic duo ampliﬁes discharge pressures up to 20.7 bar (300 psig) without the need for costly external boosters or ampliﬁers. ROBUST INTERGRAL PISTON - DIAPHRAGM DESIGN Chem-Fuse Integral Piston Diaphragms feature a patented, upgraded and robust diaphragm design that eliminates a potential leak point at the outer piston for longer diaphragm life. These diaphragms are also designed to handle higher pressures. HIGH DISCHARGE FLOWS High-Pressure Pumps achieve max ﬂows of up to 360 lpm (95 gpm). Only Hygienic™ Series High-Pressure Pump Wilden offers the industry’s only 76 mm (3") High-Pressure Saniﬂo™ Hygienic™ Series (HS) Pump certiﬁ ed to meet FDA, 1935/2004/EC and USP Class VI standards. Using Duplex power-piston technology, Wilden’s High-Pressure Saniﬂ o HS Pump achieves discharge pressure outputs of up to 17.2 bar (250 psig). Wilden High-Pressure Saniﬂ o HS technology is utilized in hygienic applications to transfer pumice soaps, shampoos, hair gel, and other viscous hygienic products. These pump are also ideally suited for systems consisting of long piping runs.
General Description
