High Pressure Pumps

High Pressure Pumps

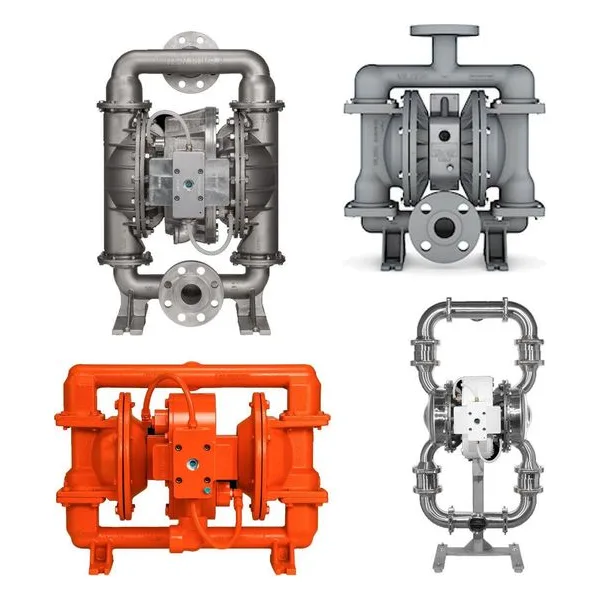

Wilden® High-Pressure AODD Pumps

Wilden® High-Pressure Series Air-Operated Double-Diaphragm (AODD) Metal Pumps are equipped with a specialty air distribution system (ADS) that utilizes a double-acting power piston and Duplex technology to intensify fluid discharge pressure. Wilden high-pressure pumps reliably deliver the pressure performance of up to 20.7 bar (300 psig), making them perfect for a wide variety of high-pressure duties, including filtration, chemical sludge transfer and other viscous, solid-laden slurries.

• Simplex and Duplex technology available (depending on size)
• Industry's only 3" high-pressure pump
• Builds up to 300 psi discharge pressure
• Built-in internal pressure amplifier with limited external piping for more robust design

Wilden High-Pressure Series
Wilden High-Pressure Pumps deliver powerful, reliable and fl exible solutions for the most challenging pump applications.

Applications
• Filtration
• Chemical Sludge Transfer
• Solid-Laden Slurries
• Viscous Product Transfer
• Filter Press
• Hygienic Applications

Search Results

(51 results)
Sort & Filter 2
Series: High Pressure Pumps Remove FilterManufacturer: Wilden Remove FilterClear all
  • 08-13727

    08-13727

    Wilden

    Wilden 08-13727 2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (H800), MODEL: H800/SSSAA/FWS/TF/STF. 360 lpm (95 gpm) Max Flow, 51 mm (2") ANSI Flanged Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston, Air Chamber & Seats, Aluminum Center Block & Air Valve, PTFE O-Rings, Wil-Flex Sanitary Diaphragm, PTFE Balls. 08-9992-99 ADS Repair Kit Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $21,785.40

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 04-13471

    04-13471

    Wilden

    Wilden 04-13471 1-1/2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XHS430S), ATEX Compliant, MODEL: XHS430S/SSAAA/FWS/WF/STF. 264 lpm (70 gpm) Max Flow, 38 mm (1-1/2") ANSI Flanged Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings, Wil-Flex Sanitary Diaphragms & Balls. 04-9993-99 ADS Repair Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $7,047.90

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 04-13473

    04-13473

    Wilden

    Wilden 04-13473 1-1/2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XHS430S), ATEX Compliant, MODEL: XHS430S/SSAAA/FWS/WF/STF/0504. 264 lpm (70 gpm) Max Flow, 38 mm (1-1/2") DIN Flanged Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings, Wil-Flex Sanitary Diaphragms & Balls. 04-9993-99 ADS Repair Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $7,047.90

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 04-13616

    04-13616

    Wilden

    Wilden 04-13616 1-1/2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XHS430S), ATEX Compliant, MODEL: XHS430S/ASAAA/FWS/WF/ATF/0504. 280 lpm (74 gpm) Max Flow, 38 mm (1-1/2") DIN Flanged Suction & Discharge. Aluminum Wetted Parts, Air Chamber, Center Block, Air Valve, & Seats, Stainless Steel Outer Piston, PTFE O-Rings, Wil-Flex Sanitary Diaphragms & Balls. 04-9993-99 ADS Repair Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $3,344.40

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 08-13980

    08-13980

    Wilden

    Wilden 08-13980 2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XH800), ATEX Compliant, MODEL: XH800/SSSAA/FWS/WF/SWF/0504. 360 lpm (95 gpm) Max Flow, 51 mm (2") DIN Flanged Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston, Air Chamber & Seats, Aluminum Center Block & Air Valve, Wil-Flex O-Rings, Sanitary Diaphragms & Balls. 08-9992-99 ADS Repair Kit, 08-9844-58 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $21,414.60

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 08-15483

    08-15483

    Wilden

    Wilden 08-15483 2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XH800), ATEX Compliant, MODEL: XH800/HZSAA/WWL/WF/HWF. 360 lpm (95 gpm) Max Flow, 51 mm (2") ANSI Flanged Suction & Discharge. Alloy C Wetted Parts & Seats, Stainless Steel Air Chamber, Aluminum Center Block & Air Valve, Wil-Flex O-Rings, Full Stroke IPD Diaphragm & Balls. 08-9992-99 ADS Repair Kit, 08-9844-58-217 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $54,267.30

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 08-15484

    08-15484

    Wilden

    Wilden 08-15484 2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XH800), ATEX Compliant, MODEL: XH800/HZSAA/WWL/WF/HWF/0504. 360 lpm (95 gpm) Max Flow, 51 mm (2") DIN Flanged Suction & Discharge. Alloy C Wetted Parts & Seats, Stainless Steel Air Chamber, Aluminum Center Block & Air Valve, Wil-Flex O-Rings, Full Stroke IPD Diaphragm & Balls. 08-9992-99 ADS Repair Kit, 08-9844-58-217 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $54,267.30

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 04-13475

    04-13475

    Wilden

    Wilden 04-13475 1-1/2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XHS430S), ATEX Compliant, MODEL: XHS430S/SSSSS/FWS/WF/STF. 264 lpm (70 gpm) Max Flow, 38 mm (1-1/2") ANSI Flanged Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seats, PTFE O-Rings, Wil-Flex Sanitary Diaphragms & Balls. 04-9993-99 ADS Repair Kit Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $9,809.10

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 04-13985

    04-13985

    Wilden

    Wilden 04-13985 1-1/2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XHS430S), ATEX Compliant, MODEL: XHS430S/ASAAA/FWS/WF/STF. 264 lpm (70 gpm) Max Flow, 38 mm (1-1/2") ANSI Flanged Suction & Discharge. Aluminum Wetted Parts, Air Chamber, Center Block & Air Valve, Stainless Steel Outer Piston & Seats, PTFE O-Rings, Wil-Flex Sanitary Diaphragms & Balls. 04-9993-99 ADS Repair Kit Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $3,587.40

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 08-15053

    08-15053

    Wilden

    Wilden 08-15053 2" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XH800), ATEX Compliant, MODEL: XH800/WWWAA/TWS/TF/STF. 360 lpm (95 gpm) Max Flow, 51 mm (2") ANSI Flanged Suction & Discharge. Ductile Iron Wetted Parts, Outer Piston & Air Chamber, Aluminum Center Block & Air Valve, Stainless Steel Seat, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. 08-9992-99 ADS Repair Kit, 08-9844-55-201 Wet End Kit Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $12,404.70

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-12097

    02-12097

    Wilden

    Wilden 02-12097 1" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XH220), ATEX Compliant, MODEL: XH220/WWWAA/FWS/WF/MWF/0014. 94 lpm (25 gpm) Max Flow, 25 mm (1") BSPT Suction & Discharge. Ductile Iron Wetted Parts, Outer Piston & Air Chamber, Aluminum Center Block & Air Valve, Mild Steel Seat, Wil-Flex O-Rings, Sanitary Diaphragms & Balls. 02-9992-99 ADS Repair Kit, 70-7398 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $4,691.70

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-12257

    02-12257

    Wilden

    Wilden 02-12257 1" Bolted Metal Air Operated Double Diaphragm High Pressure Pump (XH220), ATEX Compliant, MODEL: XH220/SSSAA/FWS/WF/SWF/0014. 94 lpm (25 gpm) Max Flow, 25 mm (1") BSPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston, Air Chamber & Seats, Aluminum Center Block & Air Valve, Wil-Flex O-Rings, Sanitary Diaphragms & Balls. 02-9992-99 ADS Repair Kit, 70-7223 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $7,428.60

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
    Show More
