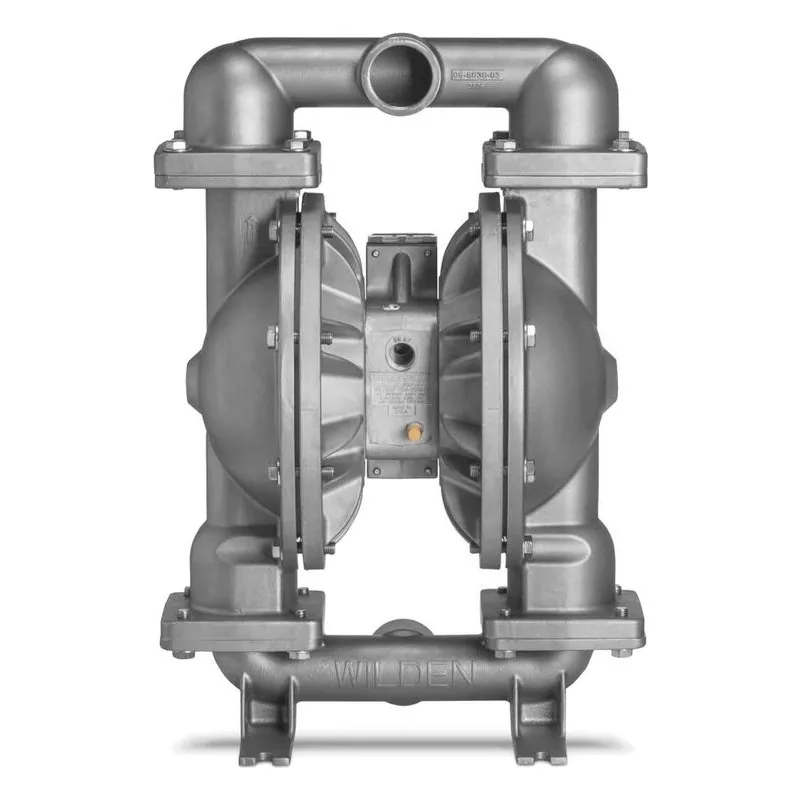

Image shown may not be actual product
08-15210
Wilden 08-15210 CSA-Certified 2" Bolted Metal Air Operated Double Diaphragm Pump (GPS820), ATEX Compliant, MODEL: GPS820/SSSSS/ZWS/WF/WF. 645 lpm (171 gpm) Max Flow, 51 mm (2") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, Wil-Flex Seats, EZ-Install Diaphragms & Balls. 04-9993-99 ADS Repair Kit, 08-9824-58-209 Wet End Kit Available to order. A PSG Dover Brand Product.
$11,026.80
- Best Price Guarantee!
- 2205PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
08-15210
Wilden 08-15210 CSA-Certified 2" Bolted Metal Air Operated Double Diaphragm Pump (GPS820), ATEX Compliant, MODEL: GPS820/SSSSS/ZWS/WF/WF. 645 lpm (171 gpm) Max Flow, 51 mm (2") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, Wil-Flex Seats, EZ-Install Diaphragms & Balls. 04-9993-99 ADS Repair Kit, 08-9824-58-209 Wet End Kit Available to order. A PSG Dover Brand Product.
| Air Chamber | Stainless Steel |
| Air Distribution System | Pro-Flo Shift |
| Air Inlet | 3/4" FNPT |
| Center Block | Stainless Steel |
| Connection Type | NPT |
| Construction | Bolted |
| Diaphragm | Wil-Flex (Santoprene) |
| Diaphragm Type | EZ-Install |
| Discharge NPT (Inches) | 51 mm (2") |
| Discharge Volume Per Cycle | 2.1 L (0.55 gal) |
| Material | Metal |
| Maximum Flow (GPM) | 645 lpm (171 gpm) |
| Maximum Working Pressure (PSIG) | 6.9 bar (100 psi) |
| Max Suction Lift | 5.5 m (18.2’) Dry, 9.0 m (29.5’) Wet |
| Model Number | GPS820/SSSSS/ZWS/WF/WF |
| Model Series | GPS820 |
| Outer Piston | Stainless Steel |
| Product Notes | 04-9993-99 ADS Repair Kit, 08-9824-58-209 Wet End Kit Available to order. |
| Size | 2" |
| Solids (Inches) | 6.4 mm (1/4”) |
| Suction NPT (Inches) | 51 mm (2") |
| Type | ATEX |
| Valve Balls | Wil-Flex (Santoprene) |
| Valve / Seat / O-Ring | Stainless Steel Air Valve / Wil-Flex (Santoprene) Seat |
| Valve Type | Ball Valve |
| Wetted Parts | Stainless Steel |
GPS CSA-Certified Natural Gas Pumps Information
| Product Type |
|---|
| Diaphragm Pumps, Self Priming |
| Features & Benefits |
| Wilden® GPS Series pumps are available in bolted metal construction and CSA Certified to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful. CSA REGULATIONS • Approved to be used with sweet natural gas using less than 1% Hydrogen Sulfate • Meets stringent qualification testing • Ensures chemicals will not leak into atmosphere and wellsite safe • Air Control Spool automatically restricts the amount of air into the pump, optimizing air savings for increased efficiencies . • Large exhaust to help prevent freezing • Unbalanced spool to prevent stalling |
