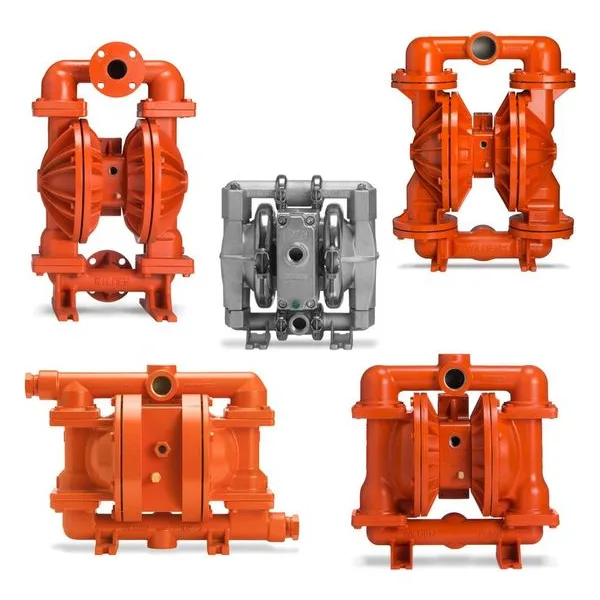

GPS CSA-Certified Natural Gas Pumps

GPS CSA-Certified Natural Gas Pumps

Wilden® CSA-Certified AODD Pumps for Natural Gas Applications

Since its founding in 1955, Wilden has been a leader in the pump world. In 2006, Wilden partnered with other industry leaders and the Canadian Standards Association (CSA) to develop the ANSI LC 6-2008 standard to regulate natural gas-operated pumps. To bring that safety standard to the oil and gas industry with premium performance, Wilden offers the GPS Series Pumps.

Wilden® GPS Series pumps, equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) and available in bolted metal construction, are certified by the Canadian Standards Association (CSA) to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful.

GPS Series pumps utilize the Wilden Pro-Flo SHIFT ADS
• Helps plants save valuable natural gas
• Pro-Flo SHIFT uses 60% less natural gas, without hindering performance
• Greater flow - more gallons pumped per SCFM

13 mm (1/2") CSA-Certified Clamped Metal AODD Pump GPS1
25 mm (1") CSA-Certified Bolted Metal AODD Pump GPS220/GPS230

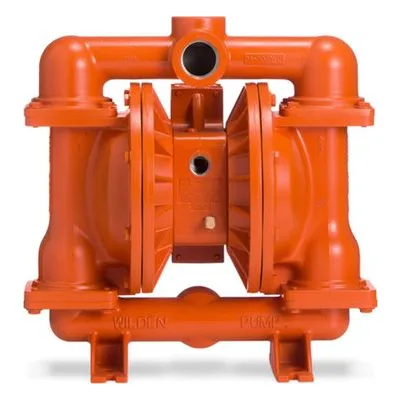

38mm (1-1/2") CSA-Certified Bolted Metal AODD Pump GPS420/GPS430
51 mm (2") CSA-Certified Bolted Metal AODD Pump GPS820/GPS830
76 mm (3") CSA-Certified Bolted Metal AODD Pump GPS1520/GPS1530

Applications
• Oil & Gas
• Wellsite Transfer
• Wellhead Injection
• Production Steam Transfer
• Glycol Recirculation

Search Results

(48 results)
Sort & Filter 2
Series: GPS CSA-Certified Natural Gas Pumps Remove FilterManufacturer: Wilden Remove FilterClear all
  • 02-13149

    02-13149

    Wilden

    Wilden 02-13149 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/AAAAA/XBS/BN/ABN/0677. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Center Ported NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings & Balls, Conductive Buna N Traditional Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-86 Wet End Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,535.40

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-11332

    01-11332

    Wilden

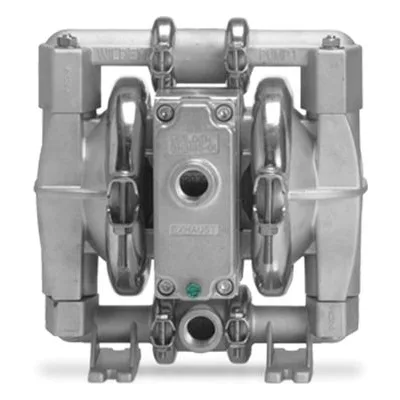

    Wilden 01-11332 CSA-Certified 1/2" Clamped Metal Air Operated Double Diaphragm Pump (GPS1), ATEX Compliant, MODEL: GPS1/AAAAA/BNS/BN/ABN. 60.2 lpm (15.9 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings, Traditional Diaphragms & Balls. 01-9993-99 ADS Repair Kit, 01-9804-52 Wet End Kit, 66-002 SD Dampener, 66-002 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,214.10

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-11336

    01-11336

    Wilden

    Wilden 01-11336 CSA-Certified 1/2" Clamped Metal Air Operated Double Diaphragm Pump (GPS1), ATEX Compliant, MODEL: GPS1/SSAAA/BNS/BN/SBN. 60.2 lpm (15.9 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, Buna-N O-Rings, Traditional Diaphragms & Balls. 01-9993-99 ADS Repair Kit, 01-9804-52 Wet End Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $2,430.00

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-13150

    02-13150

    Wilden

    Wilden 02-13150 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/SSAAA/TXU/TF/STF/0677. 25 mm (1")- Center Ported NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Conductive Buna Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55-215 Wet End Kit, No SD available ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $3,553.20

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-13152

    02-13152

    Wilden

    Wilden 02-13152 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/AAAAA/TXU/TF/ATF/0677. 25 mm (1")- Center Ported NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, PTFE O-Rings & Balls, PTFE w/Conductive Buna Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55-215 Wet End Kit, No SD available ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $2,136.60

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-13153

    02-13153

    Wilden

    Wilden 02-13153 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/SSAAA/XBS/BN/SBN/0677. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Center Ported NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, Buna-N O-Rings & Balls, Conductive Buna N Traditional Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-86 Wet End Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $2,951.10

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-13154

    02-13154

    Wilden

    Wilden 02-13154 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/AAAAA/XBS/BN/ABN. 204 lpm (54 gpm) Max Flow, 25 mm (1") NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings & Balls, Conductive Buna N Traditional Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-86 Wet End Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,498.50

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-13155

    02-13155

    Wilden

    Wilden 02-13155 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/AAAAA/TXU/TF/ATF. 25 mm (1") NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, PTFE O-Rings & Balls, PTFE w/Conductive Buna Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55-215 Wet End Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $2,099.70

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-13156

    02-13156

    Wilden

    Wilden 02-13156 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/SSAAA/TXU/TF/STF. 25 mm (1") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Conductive Buna Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55-215 Wet End Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $3,516.30

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-13157

    02-13157

    Wilden

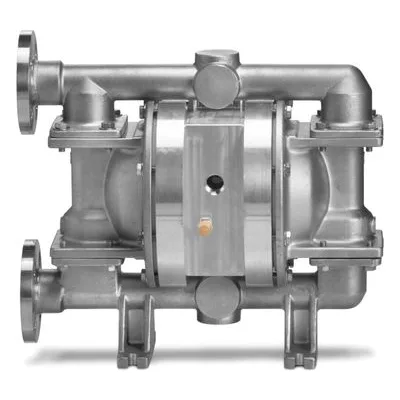

    Wilden 02-13157 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS230), ATEX Compliant, MODEL: GPS230/SSAAA/TXU/TF/STF. 25 mm (1") ANSI Flanged Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Conductive Buna Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55-215 Wet End Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $3,639.60

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 04-13497

    04-13497

    Wilden

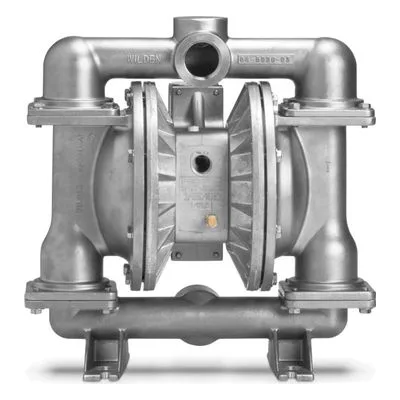

    Wilden 04-13497 CSA-Certified 1-1/2" Bolted Metal Air Operated Double Diaphragm Pump (GPS420), ATEX Compliant, MODEL: GPS420/SSSAA/ZWS/WF/WF. 441 lpm (117 gpm) Max Flow, 38 mm (1-1/2") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Air Chamber, Aluminum Center Block & Air Valve, Wil-Flex Seats, EZ-Install Diaphragms & Balls. 04-9993-99 ADS Repair Kit, 04-9824-58-209 Wet End Kit, 74-1000 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $5,889.60

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 04-13499

    04-13499

    Wilden

    Wilden 04-13499 CSA-Certified 1-1/2" Bolted Metal Air Operated Double Diaphragm Pump (GPS420), ATEX Compliant, MODEL: GPS420/SSSAA/TWS/TF/STF. 460 lpm (122 gpm) Max Flow, 38 mm (1-1/2") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston, Air Chamber & Seats, Aluminum Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. 04-9993-99 ADS Repair Kit, 04-9824-55-201 Wet End Kit, 74-1000 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed

    $7,097.40

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
