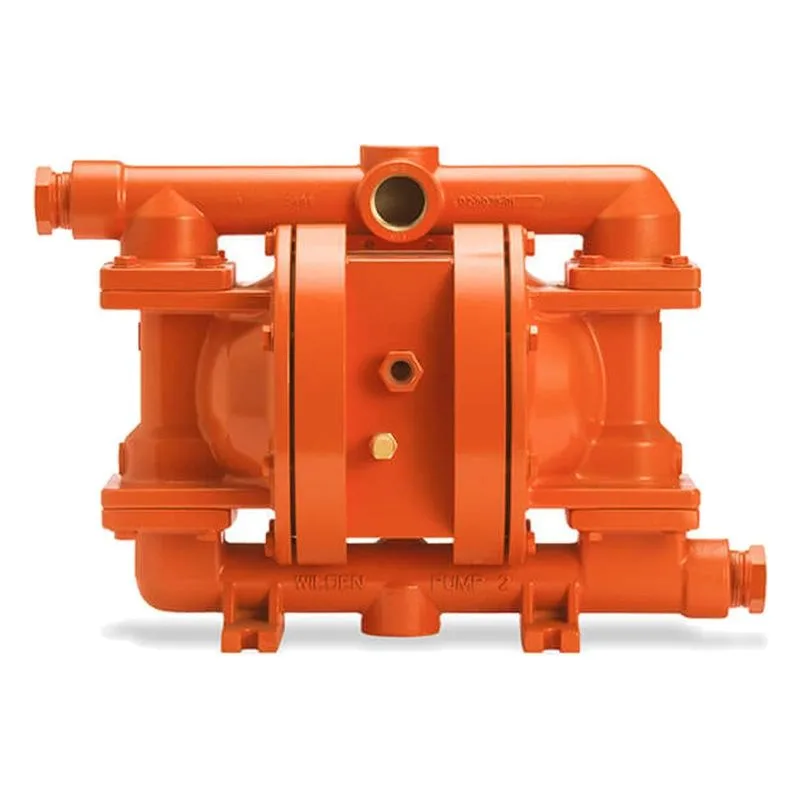

Image shown may not be actual product
02-13151
Wilden 02-13151 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/AAAAA/XBS/TF/ABN/0677. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Center Ported NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings, Conductive Buna-N Traditional Diaphragm, PTFE Balls. 02-9993-99-320 ADS Repair Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$1,574.10
- Best Price Guarantee!
- 314PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
02-13151
Wilden 02-13151 CSA-Certified 1" Bolted Metal Air Operated Double Diaphragm Pump (GPS220), ATEX Compliant, MODEL: GPS220/AAAAA/XBS/TF/ABN/0677. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Center Ported NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings, Conductive Buna-N Traditional Diaphragm, PTFE Balls. 02-9993-99-320 ADS Repair Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
| Air Chamber | Aluminum |
| Air Distribution System | Pro-Flo Shift |
| Air Inlet | 1/2" FNPT |
| Center Block | Aluminum |
| Connection Type | NPT |
| Construction | Bolted |
| Diaphragm | Conductive Buna-N |
| Diaphragm Type | Traditional |
| Discharge NPT (Inches) | 25 mm (1")- Center Ported |
| Discharge Volume Per Cycle | 0.30 L (0.08 gal) |
| Material | Metal |
| Maximum Flow (GPM) | 204 lpm (54 gpm) |
| Maximum Working Pressure (PSIG) | 8.6 bar (125 psi) |
| Max Suction Lift | 6.9 m (22.7’) Dry, 9.0 m (29.5’) Wet |
| Model Number | GPS220/AAAAA/XBS/TF/ABN/0677 |
| Model Series | GPS220 |
| Outer Piston | Aluminum |
| Product Notes | 02-9993-99-320 ADS Repair Kit, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. |
| Size | 1" |
| Solids (Inches) | 6.4 mm (1/4") |
| Special Configuration | 0677 NPT, center-ported inlet and discharge |
| Suction NPT (Inches) | 25 mm (1")- Center Ported |
| Type | ATEX |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | Aluminum Air Valve / Aluminum Seat / Buna-N O-Rings |
| Valve Type | Ball Valve |
| Wetted Parts | Aluminum |
GPS CSA-Certified Natural Gas Pumps Information
| Product Type |
|---|
| Diaphragm Pumps, Self Priming |
| Features & Benefits |
| Wilden® GPS Series pumps are available in bolted metal construction and CSA Certified to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful. CSA REGULATIONS • Approved to be used with sweet natural gas using less than 1% Hydrogen Sulfate • Meets stringent qualification testing • Ensures chemicals will not leak into atmosphere and wellsite safe • Air Control Spool automatically restricts the amount of air into the pump, optimizing air savings for increased efficiencies . • Large exhaust to help prevent freezing • Unbalanced spool to prevent stalling |
