08-13402

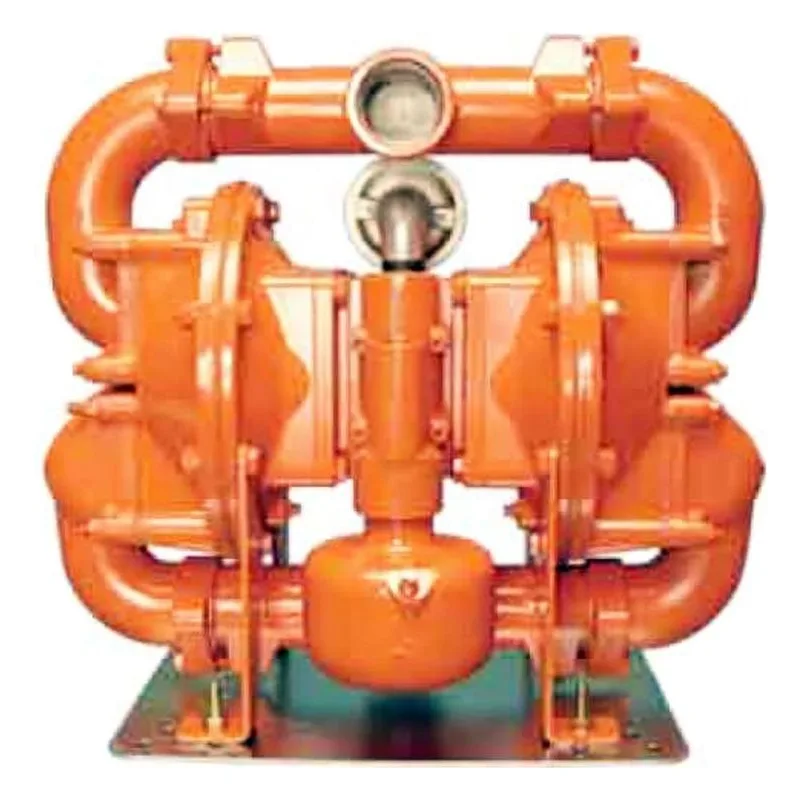

Image shown may not be actual product

08-13402

0 reviews

Wilden 08-13402 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (T810), MODEL: T810/AMAAD/NES/NF/MNE/0677. 628 lpm (166 gpm) Max Flow, 51 mm (2")- Center Ported NPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber & Center Block, Mild Steel Outer Piston & Seats, Brass w/Oil Bottle Air Valve, Neoprene O-Rings, Traditional Diaphragms & Flap Valves. 15-9982-07 ADS Repair Kit, 08-9834-51 Wet End Kit, 71-7554 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,344.40

Best Price Guarantee!
668PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 08-13402 | Model #: T810/AMAAD/NES/NF/MNE/0677

Overview
Series Info
Reviews
Literature/Manuals

08-13402

Air Chamber	Aluminum
Air Distribution System	Turbo-Flo Brahma
Air Inlet	3/4" FNPT
Center Block	Aluminum
Connection Type	NPT
Construction	Bolted
Diaphragm	Neoprene
Diaphragm Type	Traditional
Discharge NPT (Inches)	51 mm (2")- Center Ported
Discharge Volume Per Cycle	1.7 L (0.46 gal)
Material	Metal
Maximum Flow (GPM)	628 lpm (166 gpm)
Maximum Working Pressure (PSIG)	8.6 bar (125 psi)
Max Suction Lift	7.6 m (25.0') Dry, 9.3 m (30.6') Wet

Model Number	T810/AMAAD/NES/NF/MNE/0677
Model Series	T810
Outer Piston	Mild Steel
Product Notes	15-9982-07 ADS Repair Kit, 08-9834-51 Wet End Kit, 71-7554 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order.
Size	2"
Solids (Inches)	51 mm (2")
Special Configuration	0677 Horizontal Center Ported, NPT Threaded
Suction NPT (Inches)	51 mm (2")- Center Ported
Valve Balls	Neoprene
Valve / Seat / O-Ring	Brass w/Oil Bottle Air Valve / Mild Steel Seat / Neoprene O-Rings
Valve Type	Flap Valve
Wetted Parts	Aluminum

Brahma Large Solids Handling Pumps Information

Product Type
Diaphragm Pumps, Self Priming, Submersible
Features & Benefits
Wilden Brahma Series The Brahma Series flap-valve pump from Wilden is TOUGH! Tougher than your hardest applications. With its rugged design, enhanced durability and outstanding performance, the Brahma Series pumps excel in extreme environments where other pump types fail. The Brahma Series pumps free up valuable maintenance man-hours with its reliable design. Just start it up and the Brahma Series pumps will get the job done! SUBMERSIBLE - Wilden AODD pumps are able to function in applications that require the pump to be completely submerged. ROTATABLE INLET AND DISCHARGE - Rotatable inlet and discharge to help meet application requirements – 3 positions at 90° – available in threaded or flanged connections. FLAP VALVES - AODD pump designed with flap valves to help handle large solids up to 76 mm (3"). Durable Wil-Flex® TPE material option for extended life. LARGE INTERNAL CLEARANCE - Wetted path with large internal clearance to further help handle compressible solids up to 76 mm (3"). TOP INLET, BOTTOM DISCHARGE - Brahma Series is designed for top inlet and bottom discharge, pushing solids directly out, protecting the pump when solids settle. Additionally, Brahma Series pumps can handle suction lifts up to 7.7 m (25.2') Dry and 9.3 m (30.6') Wet. CHEM-FUSE IPD: WIL-FLEX® OPTION Unlike conventional diaphragms, which fail to meet the demands of critical pumping applications, the innovative Chem-Fuse IPD features a simple one-piece design that offers greater durability, increased flex life and easier cleanability. Wilden Chem-Fuse diaphragms made of durable Wil-Flex® benefit from less downtime, more uptime and the peace of mind of long-lasting performance.
General Description
The Brahma Series utilizes a unique top-inlet, bottom-discharge orientation and flap valves to allow the passage of large solids while avoiding damage from product entrapment and the settling of solids during intermittent-duty applications. It features bolted construction for superior containment and the ability to pass certain solids up to 76 mm (3"), depending on pump size. Brahma Series pumps are available with Pro-Flo® SHIFT and Turbo-Flo™ air distribution systems (ADS). These pumps are available with the Chem-Fuse™ Integral Piston Diaphragm (IPD) made from durable Wil-Flex® for extended diaphragm life.
